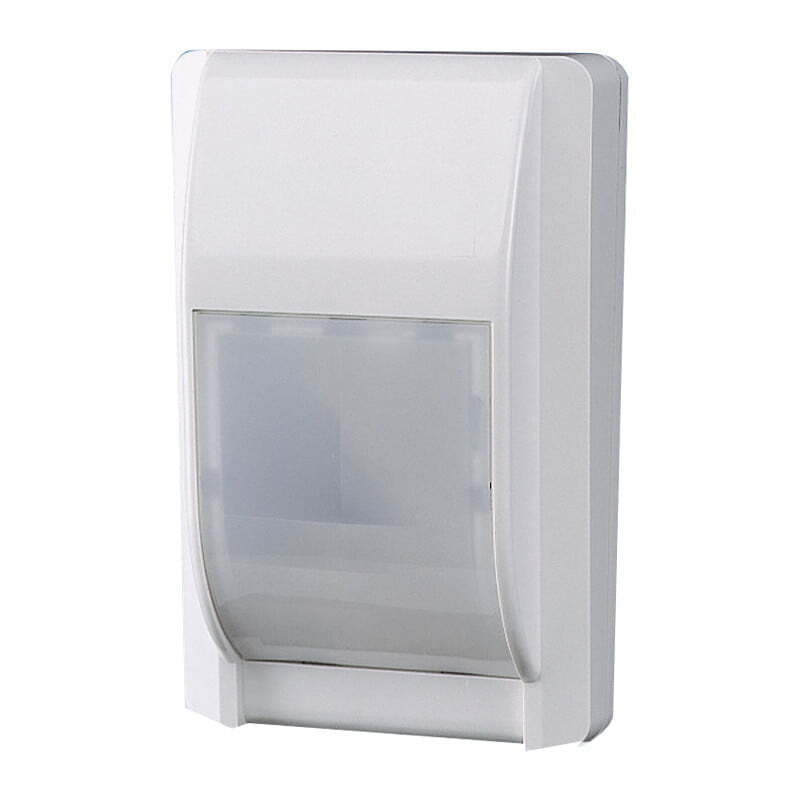

Vertical Curtain PIR Sensor
Sale!
Vertical Curtain PIR Sensor

Vertical Curtain PIR Sensor – PIR-T46C

Original price was: $65.00.Current price is: $48.40.

Vertical Curtain PIR Sensor

SKU: PIR-T46C Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

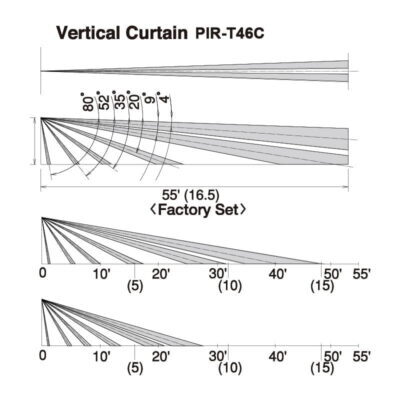

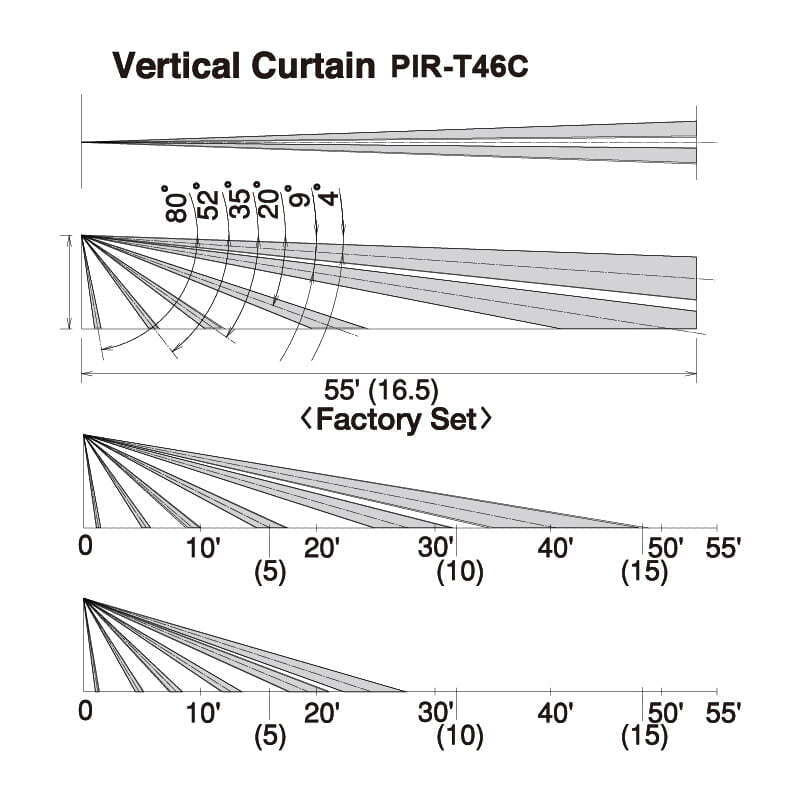

The PIR-T46C Vertical Curtain PIR Sensor from Takex is built with adjustable infrared detection up to 16.5 meters to detect intruders. Choose from three coverage settings by matching the PCB (printed circuit board) to the index marks (refer to manual). Designed to integrate with our range of Watchguard™ Hardwired Alarm Systems. It’s vertical curtain infrared makes it ideal to be installed above entrances and windows.

Product Features:
• Passive infrared detection up to 16.5m
• Adjust the coverage area for different mounting heights
• Sensitive Zones – 6 pairs
• ABS Plastic housing built for indoor environments
• Input voltage: 9 ~18VDC
• Made in Japan

Specification

Alarm Output
Yes

Dimensions
70 x 45 x 110mm

Housing
ABS Plastic (Body) , PE Plastic (Lens)

Infrared Detection Range
16.5m

Infrared Type
Passive Infrared – Vertical Curtain

Input Voltage
9~18VDC

Mounting Options
Wall / Ceiling

Operating Conditions
-15°C ~ +55°C without condensation

Pet Immunity
No

Sensitive Zones
6 pairs

Tamper Protection
Yes

Transmitting Current
25mA Max.

Register for Member Pricing



Download documents from the following links:

Takex PIR-T45W_46C PIR Sensor Manual (PDF)
Takex PIR-T45W_46C PIR Sensor Datasheet (PDF)
