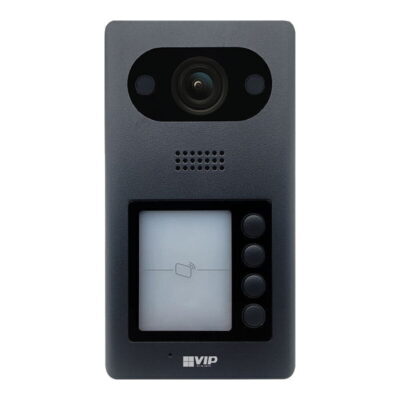

Name: Residential 4 Button IP Intercom Door Station - INTIPDDS4
Brand: VIP Vision
SKU: INTIPDDS4
Availability: OutOfStock

Description

The INTIPDDS4 is a single channel video intercom solution ideal for homes and dual-premises buildings such as duplexes. This door station features a 2.0MP camera with auto day/night IRC, all in a stylish aluminium weather/vandal resistant body.

Product features:

1/2.8’’ 2.0MP 1.9mm lens camera with 134° FOV
Built-in microphone and speaker for 2-way talk
Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
Connect with intercom monitor(s) via Ethernet
Door control, alarm and RS485 input/output relays
Intuitive, easy-to-use interface
Weather and vandal resistant IP65/IK08 aluminium body
Power over Ethernet (12VDC, 802.3af)

Specification

Audio / 2-Way Talk

Omni-directional Microphone & Embedded Loudspeaker for 2-way talk

Camera System

1/2.8’’ 2.0 Megapixel CMOS with 1.9mm lens (Horizontal FoV: 134°)

Card Support

Built-in NFC Card Reader, Supports up to 10,000 13.56MHz NFC cards

Construction

Zinc Alloy

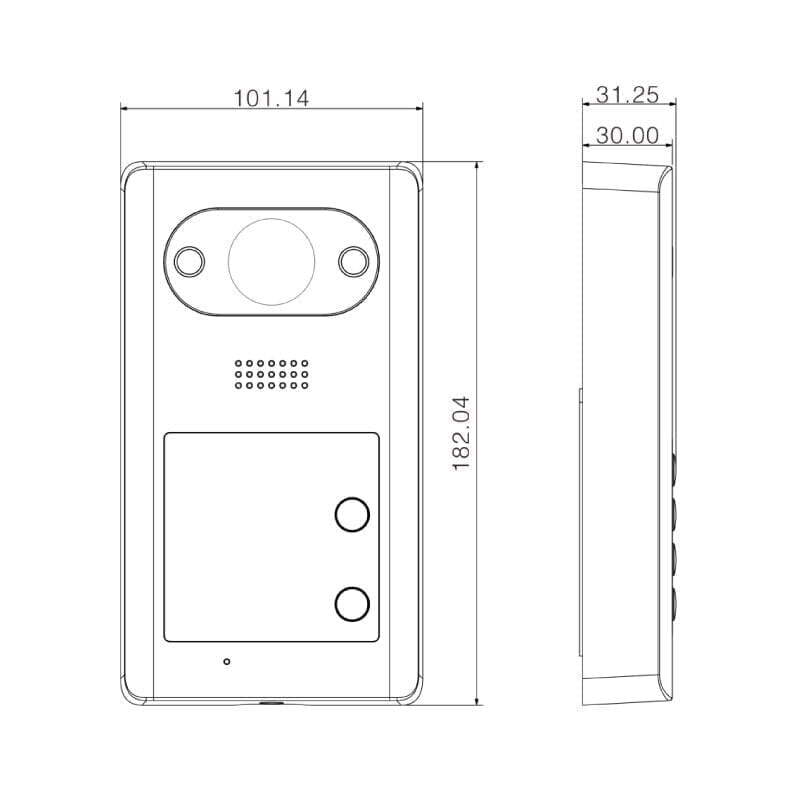

Dimensions

182 x 101 x 30mm

Ethernet / Network

10M/100Mbps Self-adaptive / TCP/IP protocol

Ingress Protection

IP65

Input / Output

1 x relay for door control / 2 x channel alarm interface / 1 x RS485

Installation Options

N/A

Internal MicroSD Slot

N/A

Keypad

4 Mechanical Buttons

Low-Light Application

Day/Night ICR

Main Processor

Embedded Microprocessor

Power Consumption

<6W

Power Input

12VDC, PoE (802.3af)

Tamper Detection

Yes

Vandal Resistant

IK08

Weight

0.80kg

Warranty (Years)
