The Impact Series from Connected Switchgear features industrial strength plugs made from impact and chemical resistant material. The Impact Series plug is fitted with a captive ring to secure sockets to achieve an IP66 weather protection rating.
– 5 pin three phase straight plug
– Transparent impact and chemical resistant housing
– With fitted captive ring for IP66 rated ingress protection
– Internal cable clamp to prevent cable twisting
– Round pin configuration, suitable for a flexible hose
– Minimum cable entry diameter: 10mm², Maximum cable entry diameter: 27mm²
– Minimum terminal capacity: 2.5mm², Maximum terminal capacity: 16mm²
– Rating (Amps): 32A
– Rated Voltage: 500VAC
– Rated Frequency: 50Hz/60Hz
– Operating temp; -40°C – 80°C
– Complies with AS/NZS 3100:2009, AS/NZS 3100:2017, AS/NZS 3112:2011, AS/NZS 3123:2005
– SAA approved

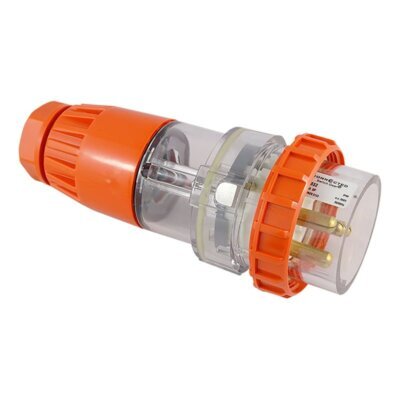

Impact Series Industrial 5-Pin Straight Plug (32A 500V) – CS-P532
$82.27
Impact Series Industrial 5-Pin Straight Plug (32A 500V)
Description
The Impact Series from Connected Switchgear features industrial strength plugs made from impact and chemical resistant material. The Impact Series plug is fitted with a captive ring to secure sockets to achieve an IP66 weather protection rating.
– 5 pin three phase straight plug
– Transparent impact and chemical resistant housing
– With fitted captive ring for IP66 rated ingress protection
– Internal cable clamp to prevent cable twisting
– Round pin configuration, suitable for a flexible hose
– Minimum cable entry diameter: 10mm², Maximum cable entry diameter: 27mm²
– Minimum terminal capacity: 2.5mm², Maximum terminal capacity: 16mm²
– Rating (Amps): 32A
– Rated Voltage: 500VAC
– Rated Frequency: 50Hz/60Hz
– Operating temp; -40°C – 80°C
– Complies with AS/NZS 3100:2009, AS/NZS 3100:2017, AS/NZS 3112:2011, AS/NZS 3123:2005
– SAA approved
Specifications
Download the datasheet below:
Connected Switchgear Impact Series Plugs Datasheet (PDF)
