DI-320IPEN-MVF-V4

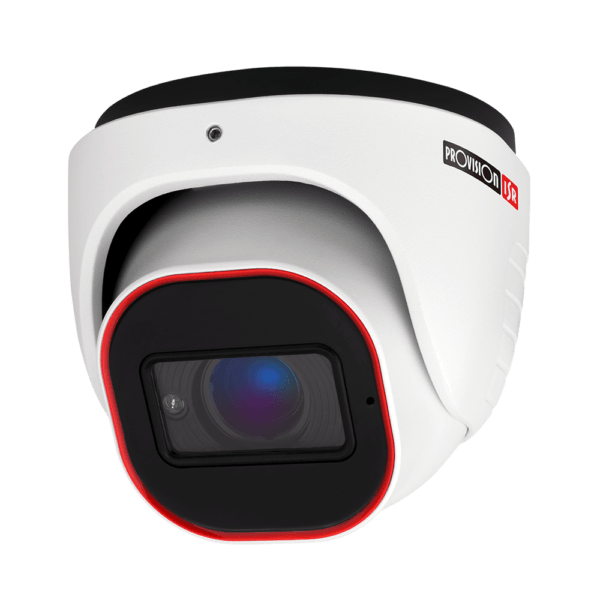

40M IR 2MP Vari-Focal Lens Dome - DI-320IPS-VF
40M IR 2MP Motorized Vari-Focal Lens Dome - DI-320IPEN-MVF-V4 - Image 3
40M IR 2MP Motorized Vari-Focal Lens Dome - DI-320IPEN-MVF-V4 - Image 4

40M IR 2MP Motorized Vari-Focal Lens Dome – DI-320IPEN-MVF-V4

Login, Register, or Call for Price

2MP IP Camera • Eye-Sight v2 Series • NDAA Certified • Real-Time • 1/2.8″ CMOS • 2.8-12mm Motorized Vari-Focal Lens • DDA Object Detection • Face Detection
SKU: DI-320IPEN-MVF-V4 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

2MP MVF Lens Dome/Turret Camera with IR LED and DDA2 Analytics

The DI-320IPEN-MVF-V4 is a versatile 2MP Dome/Turret camera designed for medium-range surveillance up to 40m in both indoor and outdoor environments. Its 2.8-12mm motorized lens allows precise focus adjustments for optimal coverage.

Equipped with Dual System technology, this camera autonomously detects and resolves internal anomalies, enhancing system redundancy and minimizing software-related disruptions.

Advanced analytics capabilities set this model apart. From Face Detection to DDA Analytics (Detect, Distinguish, Alert), it enables object recognition, counting, and detailed investigations into attributes such as age, color, gender, and vehicle brand.

Register for Member Pricing

Eliminate false alarms with integrated Check Point Quantum IoT Nano Agent, providing advanced runtime threat prevention against common attack vectors.

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

DI-320IPEN-MVF-features

DI-320IPEN-MVF Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/3s ~ 1/10000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing, Object Counting (Line), Object Counting (Area) AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection
Yes
Metadata
Human: Gender, Age, Direction, Hat, Glasses, Backpack, Upper clothing type, Upper clothing color, Lower clothing type, Lower clothing color, Skirt/Dress, Mask, Shoulderbag Car/Truck: Color, Type, Brand, Model 2-Wheel: Type

Compression

Resolution
2MP / 1MP / D1 (704×576) / QVGA (480×240) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920×1050) / 1MP (1280×720) (1~30fps) Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm MVF with Auto Focus (105°-30°)
Iris
DC Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W): 43.32m(142.12ft) – 2.8~12mm(T): 144.53m(474.17ft)
Recognize
2.8~12mm(W): 8.66m(28.41ft) – 2.8~12mm(T): 28.91m(94.84ft)
Identify
2.8~12mm(W): 4.33m(14.20ft) – 2.8~12mm(T): 14.45m(47.40ft)

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P, HTTP POST, Auto Report
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input + Audio output
Alarm
Alarm in + Alarm out
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
40m (3 High-Power IR LED)
Power Supply
DC12V/~600mA / PoE/~8W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø113mm×99.6mm
Weight (gross)
~750g
Hard Reset Button
Yes




Register for Member Pricing

Documents

DI-320IPEN-MVF-V4 Datasheet
Software:

Latest CMS Version

Register for Member Pricing

Latest CMS for MAC

Latest IP Tool

2MP MVF Lens Dome/Turret Camera with IR LED and DDA2 Analytics

The DI-320IPEN-MVF-V4 is a versatile 2MP Dome/Turret camera designed for medium-range surveillance up to 40m in both indoor and outdoor environments. Its 2.8-12mm motorized lens allows precise focus adjustments for optimal coverage.

Register for Member Pricing

Equipped with Dual System technology, this camera autonomously detects and resolves internal anomalies, enhancing system redundancy and minimizing software-related disruptions.

Advanced analytics capabilities set this model apart. From Face Detection to DDA Analytics (Detect, Distinguish, Alert), it enables object recognition, counting, and detailed investigations into attributes such as age, color, gender, and vehicle brand.

Eliminate false alarms with integrated Check Point Quantum IoT Nano Agent, providing advanced runtime threat prevention against common attack vectors.

Register for Member Pricing

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

DI-320IPEN-MVF-features

DI-320IPEN-MVF Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/3s ~ 1/10000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing, Object Counting (Line), Object Counting (Area) AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection
Yes
Metadata
Human: Gender, Age, Direction, Hat, Glasses, Backpack, Upper clothing type, Upper clothing color, Lower clothing type, Lower clothing color, Skirt/Dress, Mask, Shoulderbag Car/Truck: Color, Type, Brand, Model 2-Wheel: Type

Compression

Resolution
2MP / 1MP / D1 (704×576) / QVGA (480×240) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920×1050) / 1MP (1280×720) (1~30fps) Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm MVF with Auto Focus (105°-30°)
Iris
DC Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W): 43.32m(142.12ft) – 2.8~12mm(T): 144.53m(474.17ft)
Recognize
2.8~12mm(W): 8.66m(28.41ft) – 2.8~12mm(T): 28.91m(94.84ft)
Identify
2.8~12mm(W): 4.33m(14.20ft) – 2.8~12mm(T): 14.45m(47.40ft)

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P, HTTP POST, Auto Report
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input + Audio output
Alarm
Alarm in + Alarm out
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
40m (3 High-Power IR LED)
Power Supply
DC12V/~600mA / PoE/~8W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø113mm×99.6mm
Weight (gross)
~750g
Hard Reset Button
Yes





DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
DI-320IPEN-MVF-V4

Detect (25px/m)
45.8m (Wide)
137m (Tele)

Observe (63px/m)
18m (Wide)
54m (Tele)

Recognise (125px/m)
9m (Wide)
27.5m (Tele)

Identify (250px/m)
84.5m (Wide)
13.7 (Tele)

Register for Member Pricing

Note: Wide is for minimum zoom and Tele is for Maximum Zoom

For more information on selecting a CCTV camera please see this post:

Choosing the right CCTV camera for your application.
