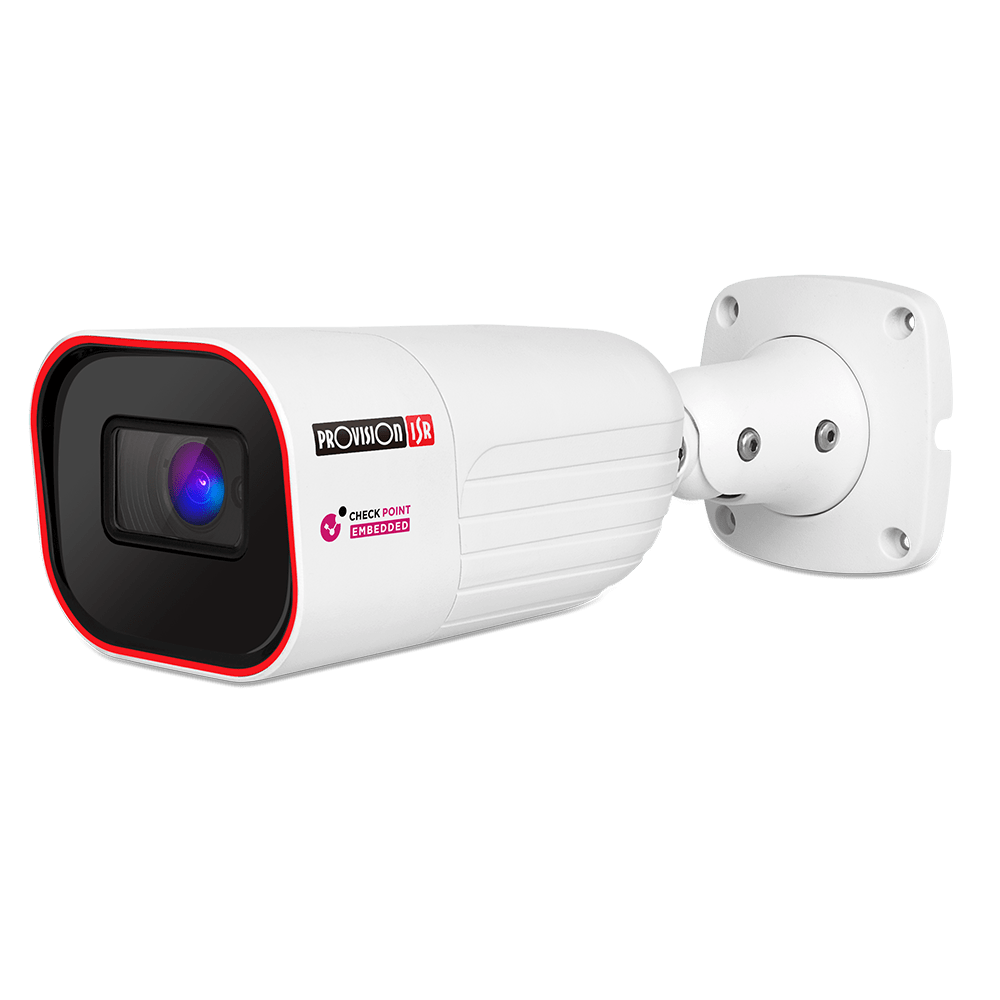

60M 8MP IR Motorised Vari-Focal Bullet - I6-380IPEN-MVF-V3
60M 8MP IR Motorised Vari-Focal Bullet - I6-380IPEN-MVF-V3 - Image 2
60M 8MP IR Motorised Vari-Focal Bullet - I6-380IPEN-MVF-V3 - Image 3

60M 8MP IR Motorised Vari-Focal Bullet – I6-380IPEN-MVF-V3

Login, Register, or Call for Price

60m IR 8MP DDA2 Analytics Fixed Lens Large Bullet Camera with Built-in Check Point Protection and Dual System technology
SKU: I6-380IPEN-MVF-V3 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

60m IR 8MP DDA2 Analytics Fixed Lens Large Bullet Camera With Built-in Check Point Protection and Dual System technology

Equipped with a 2.8-12mm motorized lens, this 8MP camera is designed for medium-distance surveillance (up to 60m) in indoor and outdoor scenarios.

Fitted with the new “Dual System” technology, the camera can deal with internal anomalies independently, making it more redundant to software-based issues.

The camera offers broad possibilities for Analytics, from Face Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the newly developed DDA2, which can perform object recognition, object counting, and investigate specifics such as age, color, gender, vehicle brand and much more. The I6-380IPEN-MVF-V3 camera is here to end false alarms.

Register for Member Pricing

Check Point Quantum IoT Nano agent is integrated into this model. It provides an advanced threat prevention layer against the common attack vectors at runtime.

Made in Israel, professional, high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

I6-340IPEN-MVF-V4-features

I6-380IPEN-MVF Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
3840×2160
Electronic Shutter
1/3s ~ 1/10000s
Day & Night
ICR
Min. Illumination
0.015 lux (@F1.4, AGC on) 0 lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area) AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection
Yes

Compression

Resolution
8MP / 4K / 6MP / 5MP / 4MP / 2MP / 1MP / D1 / QVGA / CIF
Frame Rate
1-25/30FPS in Normal Mode. 1-50/60FPS in HFR Mode**
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: Master Stream: 4K(3840×2160) / 6MP(3072×2048) / 5MP(2592×1944) / 2K(2560×1440) / 2MP(1920×1080) (1~25fps) Substream: 2MP/1MP/D1/CIF/QCIF Third Stream: 1MP/D1/CIF/QCIF (1~30fps)
Bit Rate
64Kbps ~ 8Mbps@H.265 / 64Kbps ~ 12Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm MVF with Auto Focus (96°- 32°)
Iris
DC Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W): 80m(262ft) – 2.8~12mm(T): 273m(896ft)
Recognize
2.8~12mm(W): 16m(52ft) – 2.8~12mm(T): 55m(180ft)
Identify
2.8~12mm(W): 8m(26ft) – 2.8~12mm(T): 27m(89ft)

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input + Audio output
Alarm
Alarm in + Alarm out
SD Card
Event/Schedule based Main/Substream recording (Up to 256Gb)
Wiegand
No
Power
DC Socket
Analog Video Output
CVBS out + Technician Port

Housing

PoE
Yes
Illumination
60m (4 High-Power IR LED)
Power Supply
DC12V/~850mA / PoE/~12W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
271.8×92.4×79.4mm
Weight (gross)
~1080g
Hard Reset Button
Yes


Documents

I6-380IPEN-MVF-V3

v5.x 320IPEN 340IPEN 380IPEN VF Series Manual

Register for Member Pricing

Software:

Latest CMS Version

Latest CMS for MAC

Register for Member Pricing

Latest IP Tool

60m IR 8MP DDA2 Analytics Fixed Lens Large Bullet Camera With Built-in Check Point Protection and Dual System technology

Equipped with a 2.8-12mm motorized lens, this 8MP camera is designed for medium-distance surveillance (up to 60m) in indoor and outdoor scenarios.

Fitted with the new “Dual System” technology, the camera can deal with internal anomalies independently, making it more redundant to software-based issues.

Register for Member Pricing

The camera offers broad possibilities for Analytics, from Face Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the newly developed DDA2, which can perform object recognition, object counting, and investigate specifics such as age, color, gender, vehicle brand and much more. The I6-380IPEN-MVF-V3 camera is here to end false alarms.

Check Point Quantum IoT Nano agent is integrated into this model. It provides an advanced threat prevention layer against the common attack vectors at runtime.

Made in Israel, professional, high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

I6-340IPEN-MVF-V4-features

I6-380IPEN-MVF Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
3840×2160
Electronic Shutter
1/3s ~ 1/10000s
Day & Night
ICR
Min. Illumination
0.015 lux (@F1.4, AGC on) 0 lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area) AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection
Yes

Compression

Resolution
8MP / 4K / 6MP / 5MP / 4MP / 2MP / 1MP / D1 / QVGA / CIF
Frame Rate
1-25/30FPS in Normal Mode. 1-50/60FPS in HFR Mode**
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: Master Stream: 4K(3840×2160) / 6MP(3072×2048) / 5MP(2592×1944) / 2K(2560×1440) / 2MP(1920×1080) (1~25fps) Substream: 2MP/1MP/D1/CIF/QCIF Third Stream: 1MP/D1/CIF/QCIF (1~30fps)
Bit Rate
64Kbps ~ 8Mbps@H.265 / 64Kbps ~ 12Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm MVF with Auto Focus (96°- 32°)
Iris
DC Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W): 80m(262ft) – 2.8~12mm(T): 273m(896ft)
Recognize
2.8~12mm(W): 16m(52ft) – 2.8~12mm(T): 55m(180ft)
Identify
2.8~12mm(W): 8m(26ft) – 2.8~12mm(T): 27m(89ft)

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input + Audio output
Alarm
Alarm in + Alarm out
SD Card
Event/Schedule based Main/Substream recording (Up to 256Gb)
Wiegand
No
Power
DC Socket
Analog Video Output
CVBS out + Technician Port

Housing

PoE
Yes
Illumination
60m (4 High-Power IR LED)
Power Supply
DC12V/~850mA / PoE/~12W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
271.8×92.4×79.4mm
Weight (gross)
~1080g
Hard Reset Button
Yes

Register for Member Pricing

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
I4-340IPE-MVF

Detect (25px/m)
62.9m (Wide)
198m (Tele)

Observe (63px/m)
24.9m (Wide)
78m (Tele)

Recognise (125px/m)
12.5m (Wide)
39m (Tele)

Identify (250px/m)
6.2m (Wide)
19.8 (Tele)

Register for Member Pricing

Note: Wide is for minimum zoom and Tele is for Maximum Zoom

For more information on selecting a CCTV camera please see this post:

Choosing the right CCTV camera for your application.

60m IR 8MP DDA2 Analytics Fixed Lens Large Bullet Camera With Built-in Check Point Protection and Dual System technology

Register for Member Pricing

Equipped with a 2.8-12mm motorized lens, this 8MP camera is designed for medium-distance surveillance (up to 60m) in indoor and outdoor scenarios.

Fitted with the new “Dual System” technology, the camera can deal with internal anomalies independently, making it more redundant to software-based issues.

The camera offers broad possibilities for Analytics, from Face Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the newly developed DDA2, which can perform object recognition, object counting, and investigate specifics such as age, color, gender, vehicle brand and much more. The I6-380IPEN-MVF-V3 camera is here to end false alarms.

Register for Member Pricing

Check Point Quantum IoT Nano agent is integrated into this model. It provides an advanced threat prevention layer against the common attack vectors at runtime.

Made in Israel, professional, high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

I6-340IPEN-MVF-V4-features

I6-380IPEN-MVF Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
3840×2160
Electronic Shutter
1/3s ~ 1/10000s
Day & Night
ICR
Min. Illumination
0.015 lux (@F1.4, AGC on) 0 lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area) AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection
Yes

Compression

Resolution
8MP / 4K / 6MP / 5MP / 4MP / 2MP / 1MP / D1 / QVGA / CIF
Frame Rate
1-25/30FPS in Normal Mode. 1-50/60FPS in HFR Mode**
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: Master Stream: 4K(3840×2160) / 6MP(3072×2048) / 5MP(2592×1944) / 2K(2560×1440) / 2MP(1920×1080) (1~25fps) Substream: 2MP/1MP/D1/CIF/QCIF Third Stream: 1MP/D1/CIF/QCIF (1~30fps)
Bit Rate
64Kbps ~ 8Mbps@H.265 / 64Kbps ~ 12Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm MVF with Auto Focus (96°- 32°)
Iris
DC Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W): 80m(262ft) – 2.8~12mm(T): 273m(896ft)
Recognize
2.8~12mm(W): 16m(52ft) – 2.8~12mm(T): 55m(180ft)
Identify
2.8~12mm(W): 8m(26ft) – 2.8~12mm(T): 27m(89ft)

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input + Audio output
Alarm
Alarm in + Alarm out
SD Card
Event/Schedule based Main/Substream recording (Up to 256Gb)
Wiegand
No
Power
DC Socket
Analog Video Output
CVBS out + Technician Port

Housing

PoE
Yes
Illumination
60m (4 High-Power IR LED)
Power Supply
DC12V/~850mA / PoE/~12W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
271.8×92.4×79.4mm
Weight (gross)
~1080g
Hard Reset Button
Yes


Please ask your product question below:

60m IR 8MP DDA2 Analytics Fixed Lens Large Bullet Camera With Built-in Check Point Protection and Dual System technology

Equipped with a 2.8-12mm motorized lens, this 8MP camera is designed for medium-distance surveillance (up to 60m) in indoor and outdoor scenarios.

Fitted with the new “Dual System” technology, the camera can deal with internal anomalies independently, making it more redundant to software-based issues.

Register for Member Pricing

The camera offers broad possibilities for Analytics, from Face Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the newly developed DDA2, which can perform object recognition, object counting, and investigate specifics such as age, color, gender, vehicle brand and much more. The I6-380IPEN-MVF-V3 camera is here to end false alarms.

Check Point Quantum IoT Nano agent is integrated into this model. It provides an advanced threat prevention layer against the common attack vectors at runtime.

Made in Israel, professional, high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

I6-340IPEN-MVF-V4-features

I6-380IPEN-MVF Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
3840×2160
Electronic Shutter
1/3s ~ 1/10000s
Day & Night
ICR
Min. Illumination
0.015 lux (@F1.4, AGC on) 0 lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area) AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection
Yes

Compression

Resolution
8MP / 4K / 6MP / 5MP / 4MP / 2MP / 1MP / D1 / QVGA / CIF
Frame Rate
1-25/30FPS in Normal Mode. 1-50/60FPS in HFR Mode**
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: Master Stream: 4K(3840×2160) / 6MP(3072×2048) / 5MP(2592×1944) / 2K(2560×1440) / 2MP(1920×1080) (1~25fps) Substream: 2MP/1MP/D1/CIF/QCIF Third Stream: 1MP/D1/CIF/QCIF (1~30fps)
Bit Rate
64Kbps ~ 8Mbps@H.265 / 64Kbps ~ 12Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm MVF with Auto Focus (96°- 32°)
Iris
DC Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W): 80m(262ft) – 2.8~12mm(T): 273m(896ft)
Recognize
2.8~12mm(W): 16m(52ft) – 2.8~12mm(T): 55m(180ft)
Identify
2.8~12mm(W): 8m(26ft) – 2.8~12mm(T): 27m(89ft)

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input + Audio output
Alarm
Alarm in + Alarm out
SD Card
Event/Schedule based Main/Substream recording (Up to 256Gb)
Wiegand
No
Power
DC Socket
Analog Video Output
CVBS out + Technician Port

Housing

PoE
Yes
Illumination
60m (4 High-Power IR LED)
Power Supply
DC12V/~850mA / PoE/~12W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
271.8×92.4×79.4mm
Weight (gross)
~1080g
Hard Reset Button
Yes

Register for Member Pricing

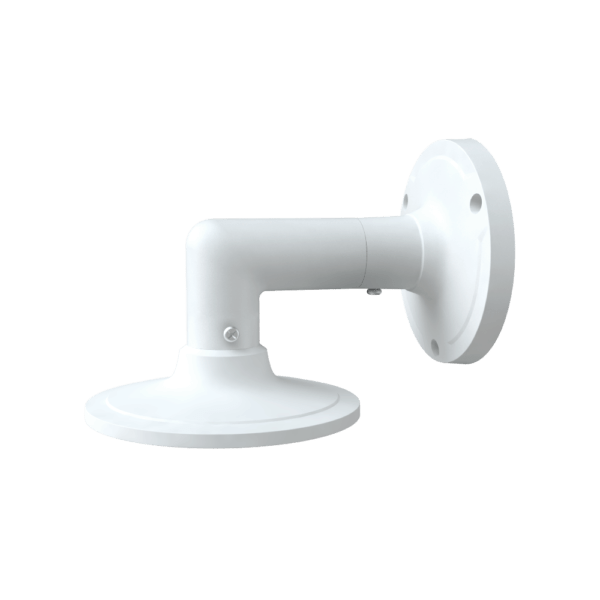

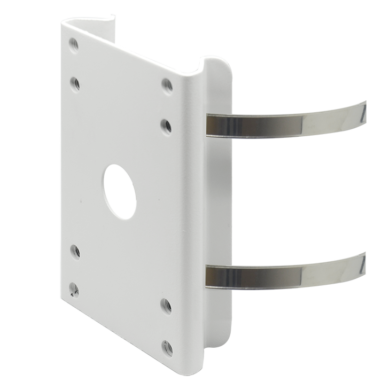

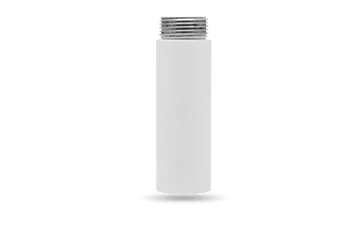

Related products

×






Price match available for Australian web sites only. Price match is not for refurbished items or grey imports. We will match pricing where possible and reserve the right to decline where we would incur a cost
