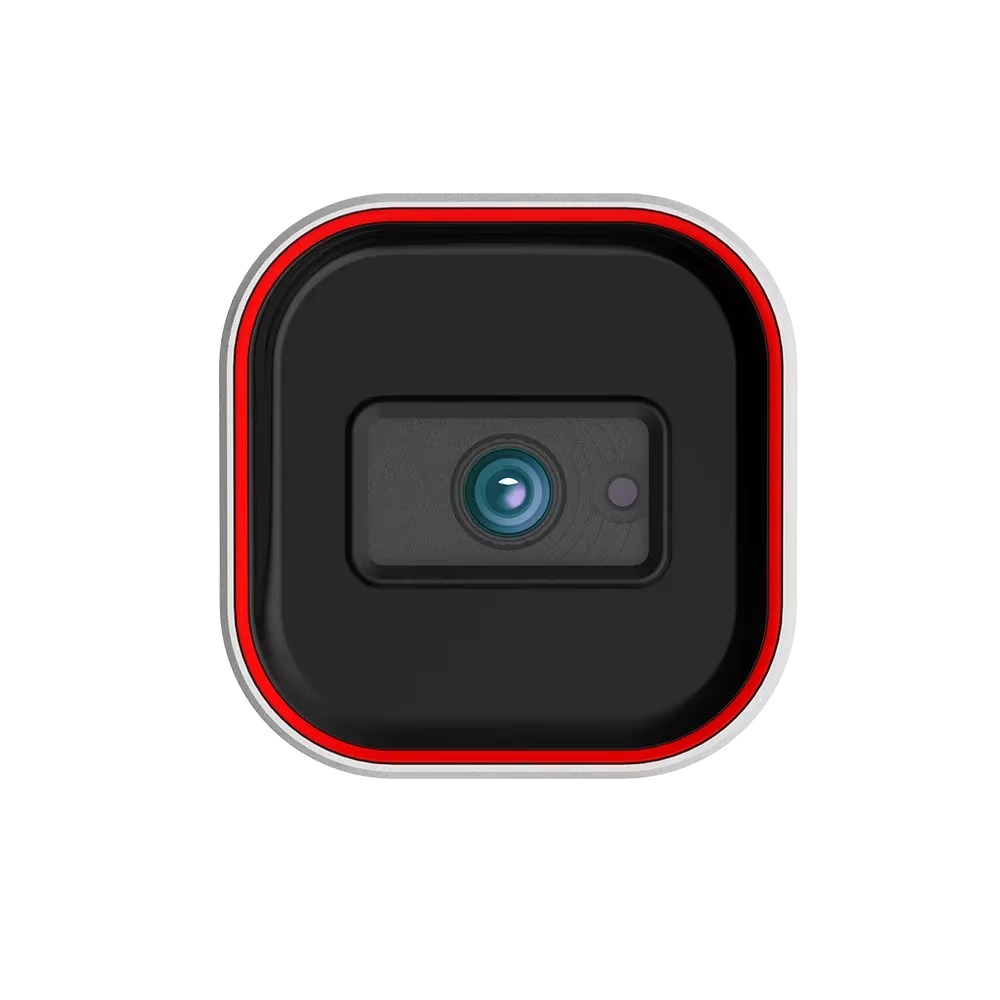

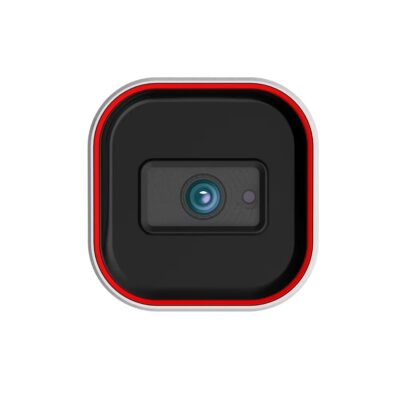

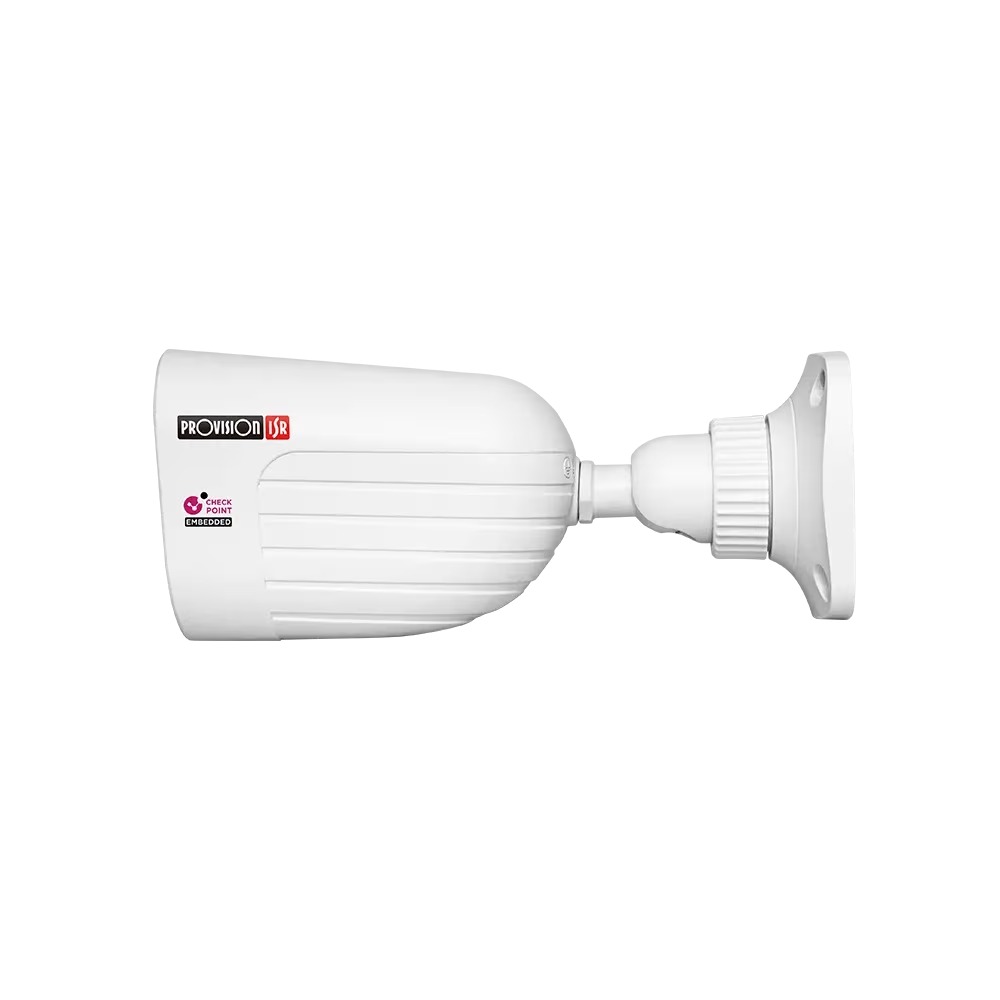

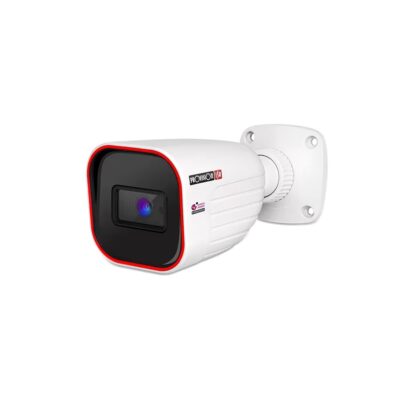

20M IR 2MP Fixed Lens Bullet - I2-320IPSN-28-V4 - Image 2
20M IR 2MP Fixed Lens Bullet - I2-320IPSN-28-V4 - Image 3
20M IR 2MP Fixed Lens Bullet - I2-320IPSN-28-V4 - Image 4
20M IR 2MP Fixed Lens Bullet - I2-320IPSN-28-V4 - Image 5

20M IR 2MP Fixed Lens Bullet – I2-320IPSN-28-V4

Login, Register, or Call for Price

20m IR 2MP Fixed Lens Small Bullet Camera
SKU: I2-320IPSN-28-V2 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

2MP Fixed Lens Bullet Camera with IR LED

Optimized for short-distance surveillance up to 20 meters, this 2MP bullet camera features a wide-angle 2.8mm fixed lens, ensuring clear coverage in both indoor and outdoor settings. Equipped with Dual System technology, it autonomously handles internal anomalies, reducing disruptions caused by software-based issues for enhanced reliability. Its advanced DDA Analytics (Detect, Distinguish, Alert) enables precise human and vehicle recognition, supporting customizable detection rules to significantly reduce false alarms. The I2-320IPSN-28-V4 delivers exceptional performance and dependability, making it an ideal choice for effective security installations.

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

features-s-sight-cpe-2mp-20m

I2-320IPSN-28-V4 Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/25s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR, BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
2MP (1920×1080) / D1 (704×576) / QVGA (480×240) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920×1080) / 1MP (1280×720) (1~30fps) Substream: 1MP/QVGA/D1/CIF Third Stream: D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (105°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
40.62m(133.26ft)
Recognize
8.12m(26.64ft)
Identify
4.06m(13.32ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
20m (1 High-Power IR LED)
Power Supply
DC12V/~350mA / PoE/~4.5W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
172.2×73.4×74.5mm
Weight (gross)
~510g
Hard Reset Button
Yes

Documents

I2-320IPSN-28-V4 Datasheet

Manual

Register for Member Pricing

Software:

Ossia Video Player

Latest VMS Version

Register for Member Pricing

IP Tool Archive

2MP Fixed Lens Bullet Camera with IR LED

Optimized for short-distance surveillance up to 20 meters, this 2MP bullet camera features a wide-angle 2.8mm fixed lens, ensuring clear coverage in both indoor and outdoor settings. Equipped with Dual System technology, it autonomously handles internal anomalies, reducing disruptions caused by software-based issues for enhanced reliability. Its advanced DDA Analytics (Detect, Distinguish, Alert) enables precise human and vehicle recognition, supporting customizable detection rules to significantly reduce false alarms. The I2-320IPSN-28-V4 delivers exceptional performance and dependability, making it an ideal choice for effective security installations.

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

features-s-sight-cpe-2mp-20m

I2-320IPSN-28-V4 Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/25s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR, BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
2MP (1920×1080) / D1 (704×576) / QVGA (480×240) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920×1080) / 1MP (1280×720) (1~30fps) Substream: 1MP/QVGA/D1/CIF Third Stream: D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (105°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
40.62m(133.26ft)
Recognize
8.12m(26.64ft)
Identify
4.06m(13.32ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
20m (1 High-Power IR LED)
Power Supply
DC12V/~350mA / PoE/~4.5W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
172.2×73.4×74.5mm
Weight (gross)
~510g
Hard Reset Button
Yes
Register for Member Pricing

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
I2-320IPSN-28-V4

Detect (25px/m)
41m

Observe (63px/m)
16m

Recognise (125px/m)
8m

Identify (250px/m)
4.1m

Register for Member Pricing

For more information on selecting a CCTV camera please see this post:  Choosing the right CCTV camera for your application.
