DI-320IPEN-MVF-V4
40M IR 2MP Vari-Focal Lens Dome - DI-320IPSN-VF-V4 - Image 2
40M IR 2MP Vari-Focal Lens Dome - DI-320IPSN-VF-V4 - Image 3
40M IR 2MP Vari-Focal Lens Dome - DI-320IPSN-VF-V4 - Image 4

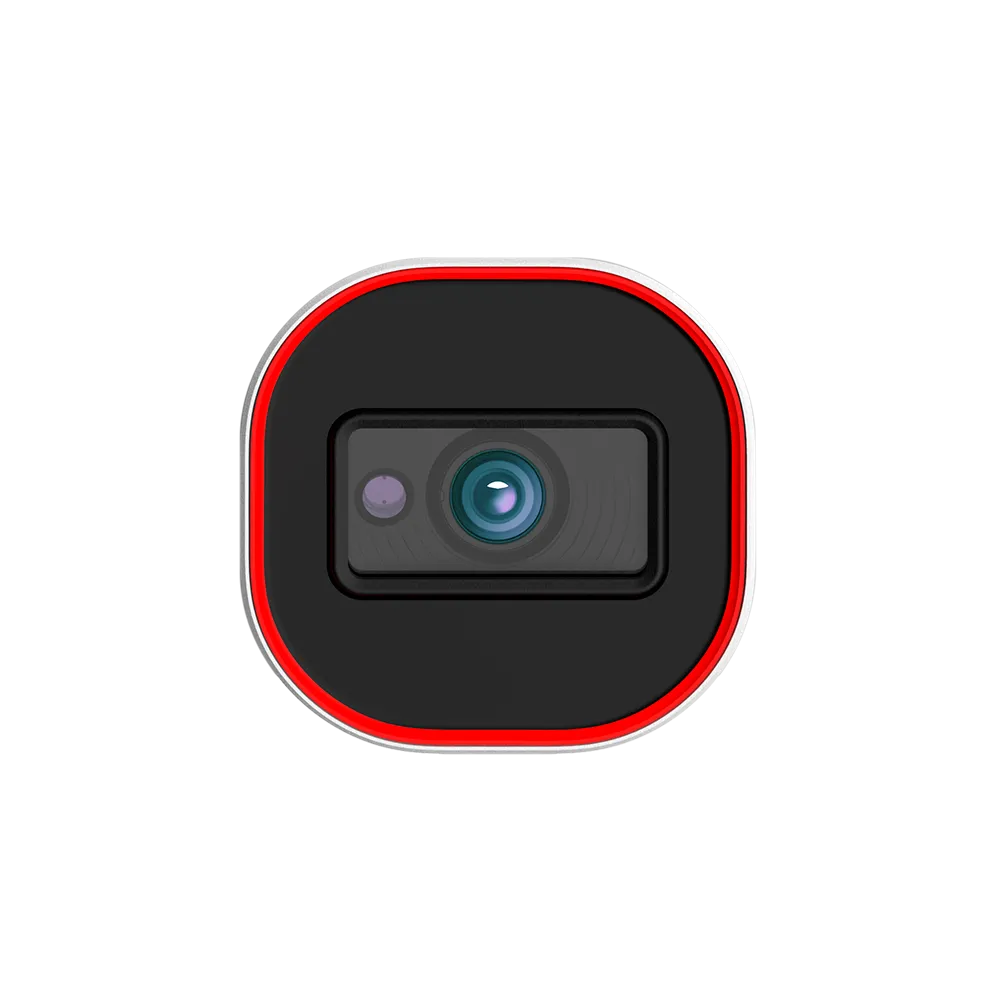

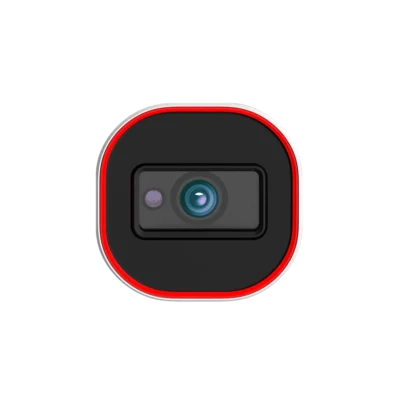

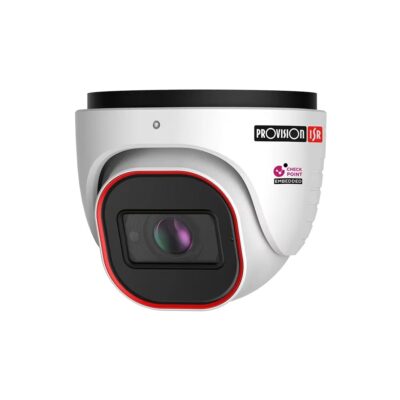

40M IR 2MP Vari-Focal Lens Dome – DI-320IPSN-VF-V4

Login, Register, or Call for Price

EOL, replaced by DH-320IPSN-MVF – 40m IR 2MP Vari-Focal Lens Large Dome/Turret Camera
SKU: DI-320IPSN-VF-V4 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

2MP Vari-Focal Lens Dome/Turret Camera with IR LED

Engineered for medium-range surveillance up to 40 meters, this 2MP turret/dome camera features a versatile 2.8-12mm vari-focal lens, adapting to various security scenarios with precision. Equipped with Dual System technology, it autonomously resolves internal anomalies, minimizing software-related disruptions for enhanced reliability. Its advanced DDA Analytics (Detect, Distinguish, Alert) ensures accurate human and vehicle recognition, reducing false alarms with customizable detection rules and triggers. With Check Point cybersecurity protection, the DI-320IPSN-VF-V4 safeguards your device against threats, delivering round-the-clock security for peace of mind.

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

Register for Member Pricing

s-sight-2mp-features-3

DI-320IPSN-VF-V4 Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/3s ~ 1/10000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.009lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
2MP (1920×1080) / D1 (704×576) / QVGA (480×240) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920×1080) / 1MP (1280×720) (1~30fps) Substream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm VF (96°-33°)
Iris
Fixed Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W): 43.13m(141.50ft) – 2.8~12mm(T): 131.90m(432.74ft)
Recognize
2.8~12mm(W): 8.63m(28.31ft) – 2.8~12mm(T): 26.38m(86.54ft)
Identify
2.8~12mm(W): 4.31m(14.14ft) – 2.8~12mm(T): 13.19m(43.27ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
40m (3 High-Power IR LED)
Power Supply
DC12V/~500mA / PoE/~7W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø113mm×99.6mm
Weight (gross)
~750g
Hard Reset Button
Yes

Documents

DI-320IPSN-VF-V4 Datasheet

Manual

Register for Member Pricing

Software:

Ossia Video Player

Latest VMS Version

Register for Member Pricing

IP Tool Archive

2MP Vari-Focal Lens Dome/Turret Camera with IR LED

Engineered for medium-range surveillance up to 40 meters, this 2MP turret/dome camera features a versatile 2.8-12mm vari-focal lens, adapting to various security scenarios with precision. Equipped with Dual System technology, it autonomously resolves internal anomalies, minimizing software-related disruptions for enhanced reliability. Its advanced DDA Analytics (Detect, Distinguish, Alert) ensures accurate human and vehicle recognition, reducing false alarms with customizable detection rules and triggers. With Check Point cybersecurity protection, the DI-320IPSN-VF-V4 safeguards your device against threats, delivering round-the-clock security for peace of mind.

Register for Member Pricing

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

s-sight-2mp-features-3

DI-320IPSN-VF-V4 Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/3s ~ 1/10000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.009lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
2MP (1920×1080) / D1 (704×576) / QVGA (480×240) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920×1080) / 1MP (1280×720) (1~30fps) Substream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm VF (96°-33°)
Iris
Fixed Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W): 43.13m(141.50ft) – 2.8~12mm(T): 131.90m(432.74ft)
Recognize
2.8~12mm(W): 8.63m(28.31ft) – 2.8~12mm(T): 26.38m(86.54ft)
Identify
2.8~12mm(W): 4.31m(14.14ft) – 2.8~12mm(T): 13.19m(43.27ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
40m (3 High-Power IR LED)
Power Supply
DC12V/~500mA / PoE/~7W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø113mm×99.6mm
Weight (gross)
~750g
Hard Reset Button
Yes

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
DI-320IPSN-VF-V4

Detect (25px/m)
43m (Wide)
132m (Tele)

Observe (63px/m)
18m (Wide)
55m (Tele)

Recognise (125px/m)
8.63m (Wide)
26m (Tele)

Identify (250px/m)
4.3m (Wide)
13 (Tele)

Register for Member Pricing

Note: Wide is for minimum zoom and Tele is for Maximum Zoom

For more information on selecting a CCTV camera please see this post:

Choosing the right CCTV camera for your application.
