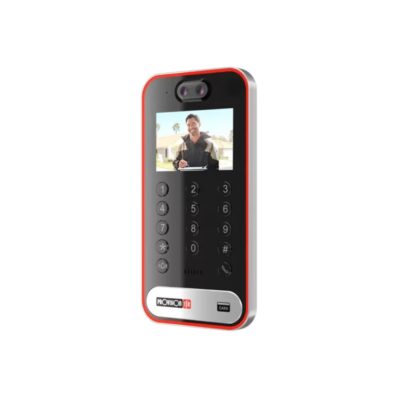

IR Outdoor Intercom Unit With Face Recognition - INT-320WIPN

IR Outdoor Intercom Unit With Face Recognition – INT-320WIPN

Login, Register, or Call for Price

INT-320WIPN is a 2MP Intercom equipped with built-in IR LEDs, microphone, and speaker. Ideal for smaller compounds like offices, private houses, and stores, it seamlessly connects to various MON-TCH7. This facilitates direct calling to specific areas within the compound and enables door opening functionality
SKU: INT-320WIPN Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Register for Member Pricing

IR Outdoor Intercom Unit with Face Recognition

The INT-320WIPN is a durable 2MP outdoor intercom, designed for residential and small commercial installations such as offices, private homes, and retail premises. Outfitted with IR LEDs, a microphone, and a speaker, it facilitates crystal-clear two-way communication and supports direct calling via the MON-TCH7 indoor units, enabling targeted communication and remote door release functionality.

Register for Member Pricing

For elevated security, the unit features an integrated card reader and supports the Wiegand protocol for seamless interaction with access control systems. Going beyond standard intercoms, the INT-320WIPN offers advanced 3D facial recognition, capable of identifying authorised individuals and activating doors or alarms based on pre-defined face groups—delivering an innovative layer of smart access control

Register for Member Pricing

Register for Member Pricing

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

INT-320WIPN-features

INT-320WIPN Features

Access Control

Door Lock
2 NO/NC
Door Sensor
2 NO/NC
RFID
MIFARE 13.56 MHz + EM 125kHz with IC, M1, CPU, DESFire Encryption Support Up to 3000 Keyfobs supported
Exit Button
2 NO
Doorbel Button
Configurable Call to Provision Cam2, Ossia VMS, Indoor Monitor (Optional)
Indoor units
500 indoor units supported

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/3s ~ 1/100000s
Day & Night
ICR
Min. Illumination
0 lux (IR LED on)

Network

User Access
Device Sharing: The device can be shared with up to 5 user accounts (By APP). Simultaneous monitoring: Up to 10 users with multi-stream real-time transmission.
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, UPnP, Email, FTP, HTTPS, HTTP POST, P2P, QoS, WiFi: WiFi Standard: IEEE802.11b/g/n Frequency: 2.4GHz ~ 2.4835 GHz Channel Bandwidth: 20MHz Security: WEP, WPA-PSK/WPA2-PSK Wireless Range: 20m
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile T/S/G

Lens

Lens (Field of View)
2.3mm (132°)
Iris
Fixed Iris
Lens Mount
M12 Mount

Housing

PoE
Yes
Illumination
2m IR LED
Power Supply
DC12V/~700mA / PoE/~10.5W
Protection Rate
Water Proof: IP65
Work Environment
-20°C~50°C, 10%~90% Humidity
Bracket
Wall Bracket Included
Dimensions
210mm × 104mm ×30mm
Weight (gross)
~600g
Hard Reset Button
Yes

Events and Analytics

Analytics
3D Face Detection Face Recognition
Motion Detection
No
Face database
Up to 10000 faces Add face via App, Web or VMS
Triggers
Alarm output for allow/block lists
Recognition per second
Up to 10 face detections and 3 face recognitions per second
Recognition distance
Recommended distance: 40cm-1m distance

Connectivity

Network
RJ45 (+PoE), WIFI(2.4G)
Audio Connectivity
Built-in Microphone and Speaker
Alarm
2Ch Input + 2Ch Output
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
Integral Reader: 26(10)/34bit Input/Output 26(8)/26(10)/34/37/42/58/66bit
Power
DC wiring
Tamper Switch
Back Tamper
Analog Video Output
No

Compression

Resolution
2MP / 1MP / D1 (704×576) / QVGA (480×240) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265 / H.264 / H.265+ / H.264+ / MJPEG (Substream only)
Multi-Stream
Master Stream: 2MP (1920×1080) / 1MP (1280×720) (1~30fps) Substream: 720P/D1/CIF (1~30fps) Third-Stream: D1/QVGA/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 128Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio

Documents

INT-320WIPN Datasheet

INT-320WIPN User Manual
