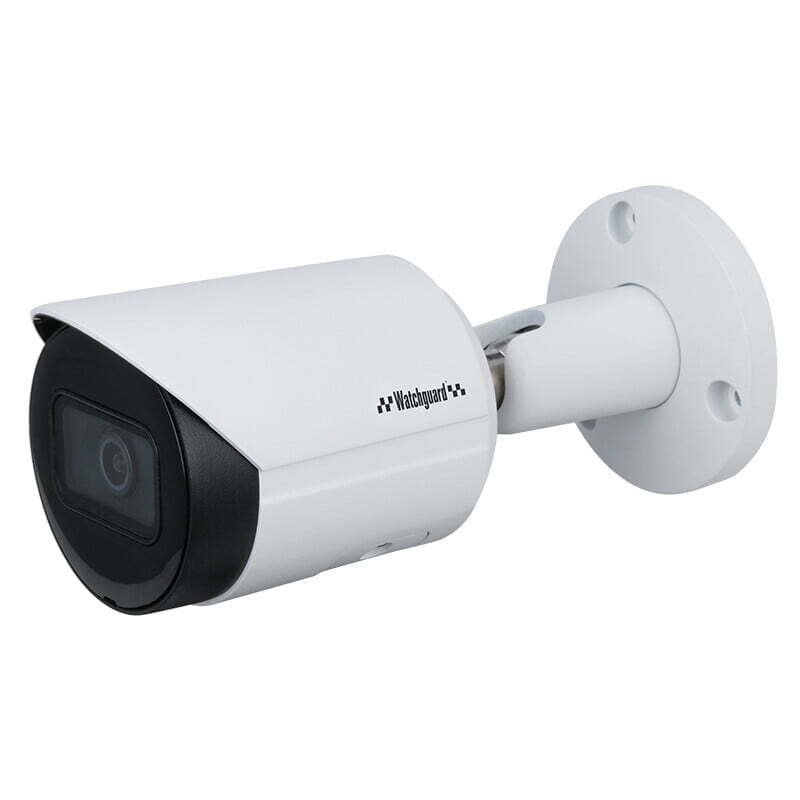

Compact Series 8.0MP Fixed Mini Bullet - VSIPC-8BIRS
Sale!
Compact Series 8.0MP Fixed Mini Bullet
Compact Series 8.0MP Fixed Mini Bullet
Compact Series 8.0MP Fixed Mini Bullet
Compact Series 8.0MP Fixed Mini Bullet

Compact Series 8.0MP Fixed Mini Bullet – VSIPC-8BIRS

Original price was: $235.00.Current price is: $180.29.

Compact Series 8.0MP Fixed Mini Bullet – CCTV Surveillance Systems > Network Surveillance Cameras

SKU: VSIPC-8BIRS Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The VSIPC-8BIRS boasts impressive performance at an affordable price point, delivering high image quality at a smooth framerate, intelligent video functions and the convenience of Power over Ethernet installation.

Camera features:

  • Stream up to 8.0MP (3840 x 2160) at 15fps
  • 2.8mm fixed lens with wide 105° viewing angle
  • 30m infrared range; true day/night (auto ICR)
  • H.265 encoding for efficient storage & streaming
  • 3D digital noise reduction & true WDR (120dB)
  • Tripwire, Intrusion, Motion detection and more
  • Power via 12VDC or Power over Ethernet (802.3af)
  • IP67 weather rated metal housing


Specifications

Camera
Image Sensor
1/2.7″ 8.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
256MB / 128MB
Ultra Low Light Colour
No
Min Illumination
0.009 Lux/F2.0
S/N Ratio
N/A
Infrared
Yes
Infrared System
1 x Infrared LED, 30m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F2.0 Fixed Lens
Field of View
Horizontal: 105°, Vertical: 56°
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
75m
Observe (63px/m)
30m
Recognise (125px/m)
15m
Identify (250px/m)
7m
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 15fps) / 4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Bit Rate
H.265: 12 ~ 8192Kbps / H.264: 32 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / True WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower for corridor mode)
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
N/A
Alarm Interface
N/A
RS485
N/A
Edge Storage
FTP / SFTP / NAS / Micro SD Card (supports max. 256GB)
Interoperability
ONVIF Profile S, G & T / CGI / P2P / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<5.5W
Operating Conditions
-40° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Compact Series
Camera Type
Bullet
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~360°
Tri-Axis Mounting
Yes
ePoE
No

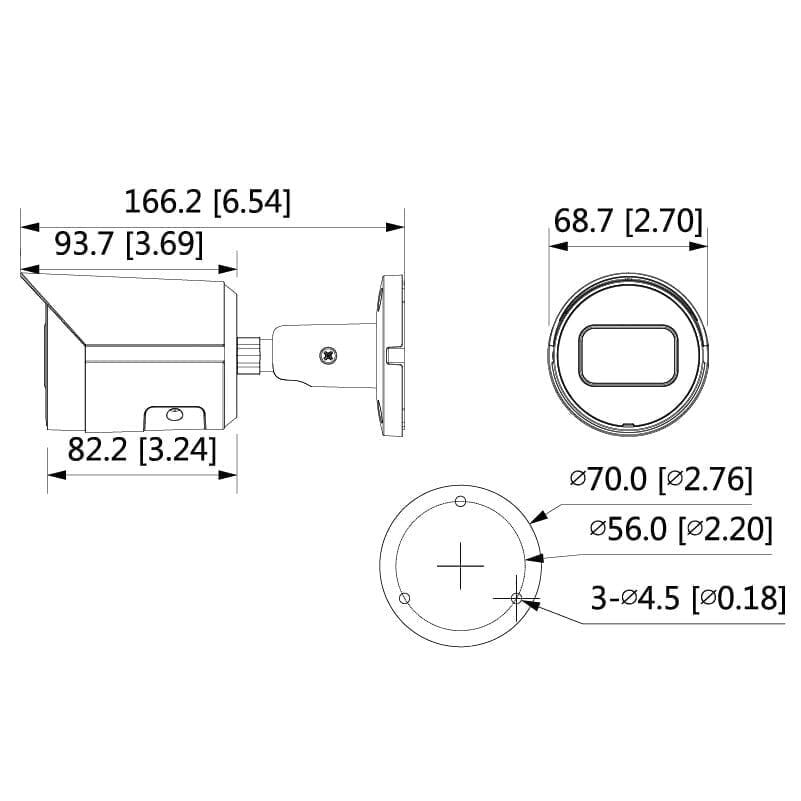

Dimensions
166mm x Ø70mm
Net Weight
0.48kg
Other
Category
Network Surveillance
Warranty (Years)
4
Register for Member Pricing



Please download documents from the following links:

VSIPC-8BIRS Datasheet
