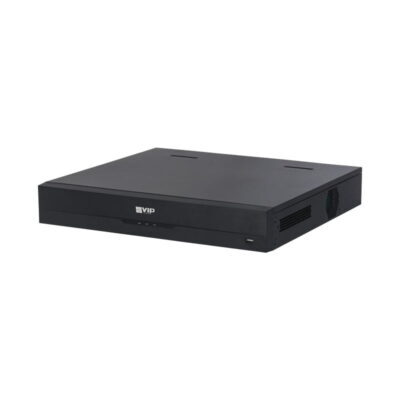

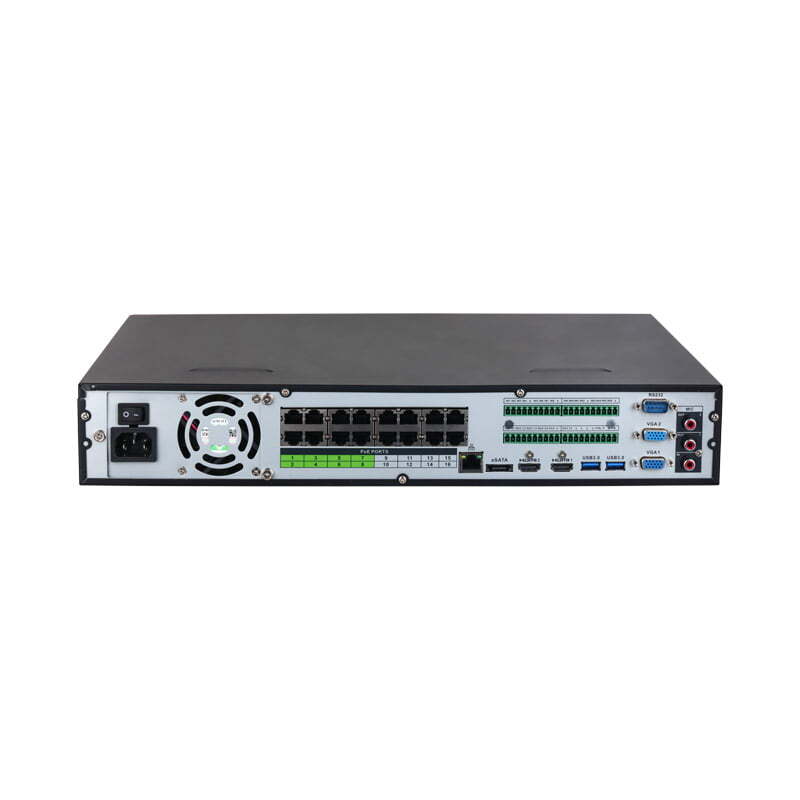

Professional AI Series 32CH PoE NVR with 4 x HDD Bays - NVR32PRO16P-I3
Sale!
Professional AI Series 32CH PoE NVR with 4 x HDD Bays - NVR32PRO16P-I3 - Image 2
Professional AI Series 32CH PoE NVR with 4 x HDD Bays - NVR32PRO16P-I3 - Image 3
Professional AI Series 32CH PoE NVR with 4 x HDD Bays - NVR32PRO16P-I3 - Image 4
Professional AI Series 32CH PoE NVR with 4 x HDD Bays - NVR32PRO16P-I3 - Image 5

Professional AI Series 32CH PoE NVR with 4 x HDD Bays – NVR32PRO16P-I3

Original price was: $1,295.00.Current price is: $1,051.49.

Professional AI Series 32CH PoE NVR with 4 x HDD Bays

SKU: NVR32PRO16P-I3 Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The NVR32PRO16P-I3 transforms the way you secure your home or small business. Use superb accuracy AI detection to take the guesswork out searching footage and get important AI video notifications as they happen. Experience peace of mind with capacity for months of footage storage and integrate a huge range of cameras to protect what’s most important to you.

Product Features:
• Record up to 32.0MP with H.265 video compression
• Up to 384Mbps bandwidth (200Mbps AI enabled)
• Suite of AI functions for improved alerts & playback
• Supports AI face detection and recognition via NVR
• Supports AI human/vehicle detection via NVR
• Supports ANPR by camera up to 4 channels
• 4 x SATA bay with HDD support up to 16TB/bay
• Built-in 16 port Power over Ethernet switch
• HDMI (4K) and VGA simultaneous video output
• Backup via external USB device or local network

Specifications

General
Video Input
32 channels
PoE
Yes
HDD Capacity
4
Processor & Operation
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Interoperability
ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK. Supports Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Canon. Chrome, IE9 and later, Firefox support.
App Integration
iOS / Android
Recording
Recording Resolution
Configurable from 32.0MP (6528 x 4896) to QCIF (176 x 144)
Network Bandwidth (AI Disabled)
384Mbps (incoming/recording/outgoing)
Network Bandwidth (AI Enabled)
200Mbps (incoming/recording/outgoing)
Video & Audio Compression
Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG, Audio: G.711a / G.711u / PCM / G726
Playback Channels
Up to 16 channels
Playback Modes
General Recording, Motion Detection, Intelligent Events, Alarm Triggers, POS
Decoding Capacity (AI Disabled)
8CH@8.0MP/25fps, 32CH@1080P/25fps
Decoding Capacity (AI Enabled)
24CH@1080P/25fps
Backup Method
USB device / Network / eSATA
Interface
HDD
4 x SATA bays, up to 16TB per bay
Audio
1 channel input (RCA), 2 channel output (RCA)
Alarm Interface
16 channels input, 6 channels output
Alarm Types
General (motion, video loss, scene change, etc.), Anomalies (camera disconnect, disk full, IP conflict , etc.), Intelligent (AI alerts, face, human/vehicle, etc.)
Alarm Actions
Begin record, take snapshot, camera external alarm output, access controller, audio, buzzer, NVR log, camera preset, email
Display Output
Display Split
1st & 2nd Screens: 1/4/8/9/16/25/36
Display Mode
Multiple sources: HDMI1+VGA1 (Mirror), HDMI2+VGA2 (Mirror)
Network Input
1 x 1000Mbps Ethernet uplink, 16 x PoE 100Mbps (802.3af/at), ports 1-8 supports ePoE
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
USB & Other Inputs
1 x Front USB 2.0, 2 x Rear USB 3.0 / 1 x RS-485, 1 x RS-232, 1 x eSATA
Artificial Intelligence
NVR Operated AI
Face Detection, Face Recognition, AI Human/Vehicle Detection
Supported Camera AI
Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp
Face Detection Functions
Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Face Detection (By NVR)
2 channels (up to 12 face images per second, per channel)
Face Detection (By Camera)
16 channels
Face Recognition Capacity
NVR Supports up to 20 face databases and 20,000 face images
Face Recognition (By NVR)
2 channel (Face detection via NVR video stream analysis; Face recognition performed by NVR) 16 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
Face Recognition (By Camera)
16 channels
Human/Vehicle Detection Functions
AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
Human/Vehicle Detection (By NVR)
IVS: 4 channels (10 rules per channel), SMD: 8 channels
Human/Vehicle Detection (By Camera)
IVS: 16 channels, SMD: 16 channels
ANPR Functions
Up to 20,000 plate numbers, blocklist & allowlist
ANPR (By Camera)
8 channels
Video Metadata Functions
People (clothing colour, hat, bag, umbrella, etc.), Vehicle (vehicle colour, vehicle model, number plate, etc.)
Video Metadata (By NVR)
N/A
Video Metadata (By Camera)
8 channels
Environment
Power Supply
100–240 VAC ~ 50-60 Hz
Power Consumption
? 13W (without HDD) / PoE: Max 25.5W for single port, 130W total
Operating Environment
-10°C ~ +55°C / 10 ~ 93%RH
Rackmountable
Rackmount Units
Dimensions
Weight
4.82kg (without HDD)
Other
Dimensions / Rack Units
440mm × 416mm × 76mm / 1.5U
Display Input
2 x HDMI (up to 3840 x 2160), 2 x VGA (up to 1920 x 1080)
Warranty (Years)
4
Storage Space Calculator
The Free disk space calculator predicts the amount of hard drive storage space that will be used by a CCTV camera over a period of time.  The calculator uses the camera resolution, frame rate, quality setting, and encoding method to estimate the space required to store video. Storage space calculation also depends on the amount of activity recorded by the camera.  For example a camera recording a busy street would use more storage space than a camera on a quiet street.  This is not something that can be estimated by a tool and therefore we recommend you use this tool with discretion.  Active Online Security will not be responsible for variations between the tools estimation and actual results.

How to use the Storage Space Calculator:

Register for Member Pricing

The Storage Space Calculator has been defined for the recorder on this page.  The maximum number of cameras has been set and the available hard drive bays and maximum hard drive size have been preset.

Select the number of cameras you will install, the resolution of those cameras (for different cameras you will need to run the tool for each camera and then add the totals of all calculations to arrive at the total), the frame rate, the quality setting, the type of encoding, the number of hours per day you will be recording, and the number of days you wish to store recordings.  When you click Calculate the calculator will show the Daily Storage (GB), the Total Storage (TB) for the number of days, and the Max Storage of System (TB) available on the recorder.  If the Total Storage (TB) exceeds the Max Storage of System (TB) then you will need to reduce the settings to below Max Storage of System (TB) for the system to meet your requirements.

Number of Cameras
Camera Resolution
Frame Rate
Quality
Encoding
Hours per Day
Number of Days
Calculate
1 Number of calculations
|
|

Download documents from the following links:

VIP Vision NVRxxPRO16P-I3 Datasheet

VIP Vision / Watchguard AI NVR Installation Manual Q2 2023 (PDF)
