4.0m Octagonal Hinged Light Pole – SLR-POL4-3
$1,479.50Original price was: $1,479.50.$1,082.95Current price is: $1,082.95.4.0m Octagonal Hinged Light Pole – Solar Powered Systems > Solar CCTV Systems
Description
4.0m octagonal hinged light pole for street lights, CCTV surveillance and solar powered systems.
• Ø60mm top diameter for light or panel mounting
• 4mm thickness, 3mm thickness after hinge
• Ø164mm bottom diameter (A/F)
• Hinge height : 1840mm

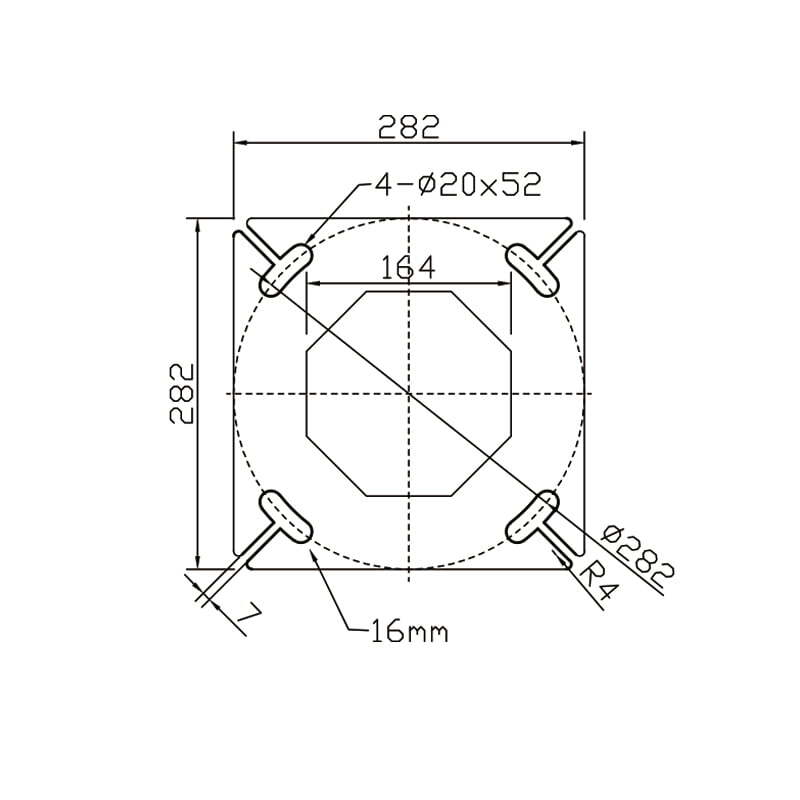

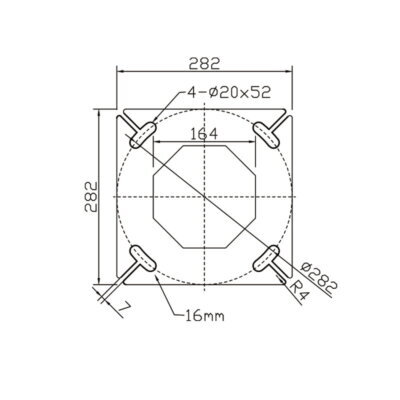

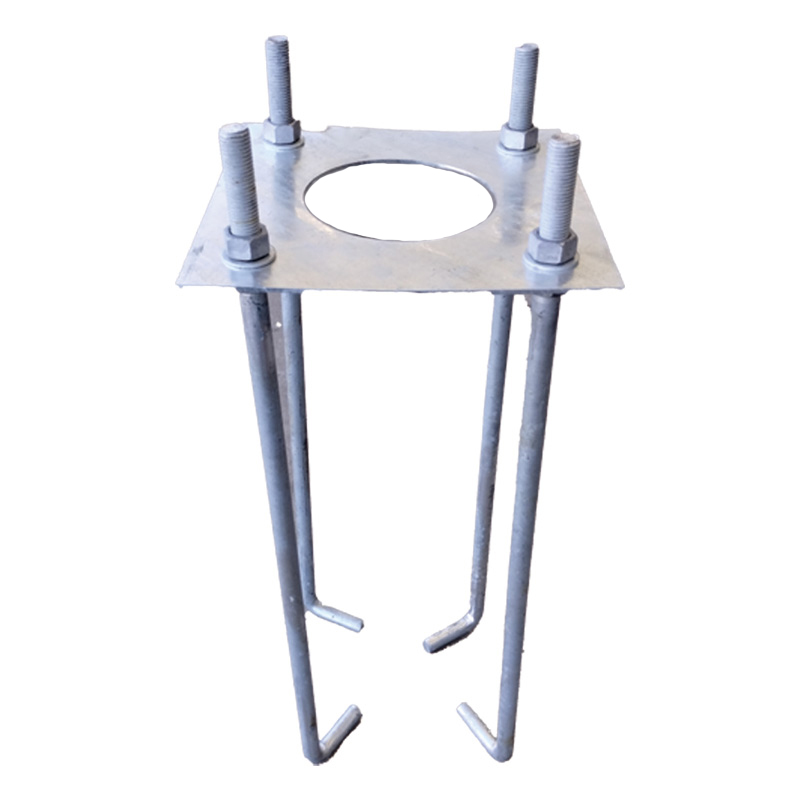

• Includes bolt template: 350 x 350mm x 16mm hot-dipped galvanized
• Includes anchor bolts: 4 x M24 1000mm hot-dipped galvanized
• Approximate weight 92kg (excluding template & bolts)

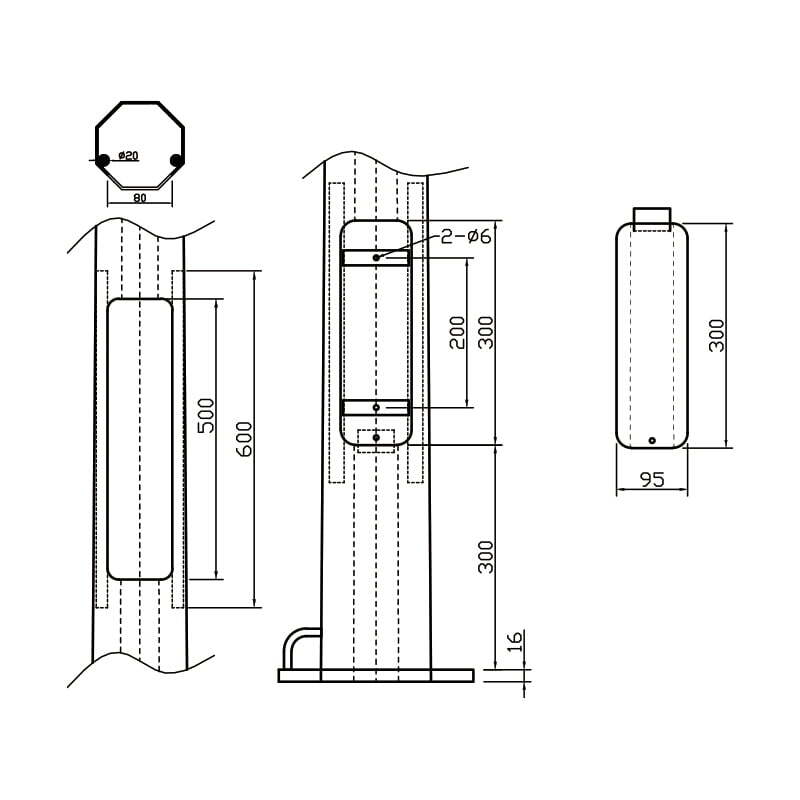

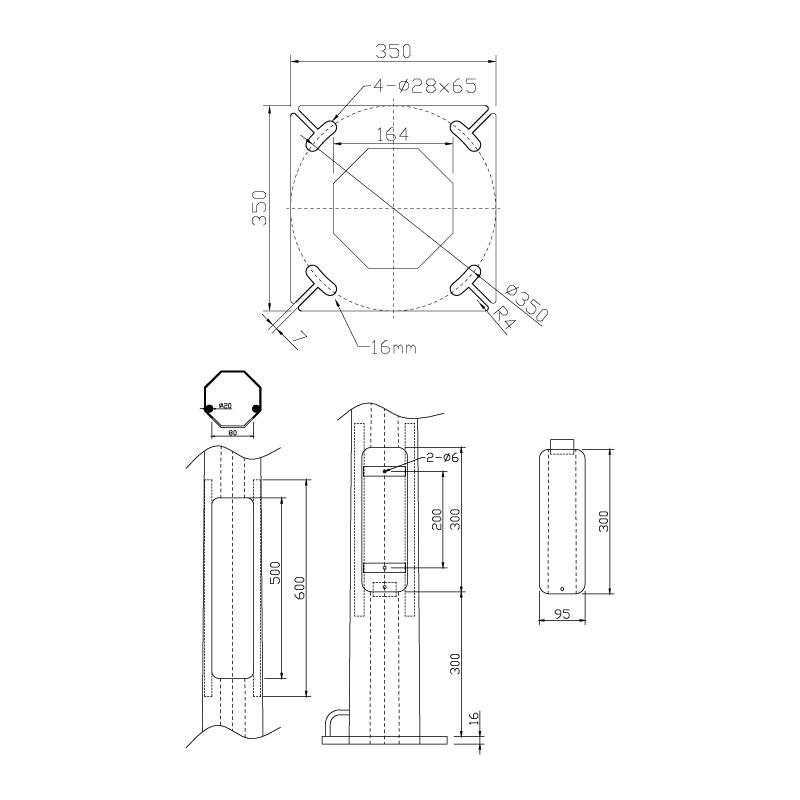

• Access panel at base of pole for easy product maintenance
Delivery quotation available on request or pick-up from Western Sydney NSW
Choose between 700mm (use in portable bases) or 1000mm (in-ground installations) anchor bolt
Note: This item does not qualify for free shipping. Costs will be passed through at time of order.
Shipping Weight and Dimensions includes product packaging
Width: 285 mm
Height: 4,000 mm
Depth: 285 mm
Weight: 92.00 kg
Download documents from the following links:

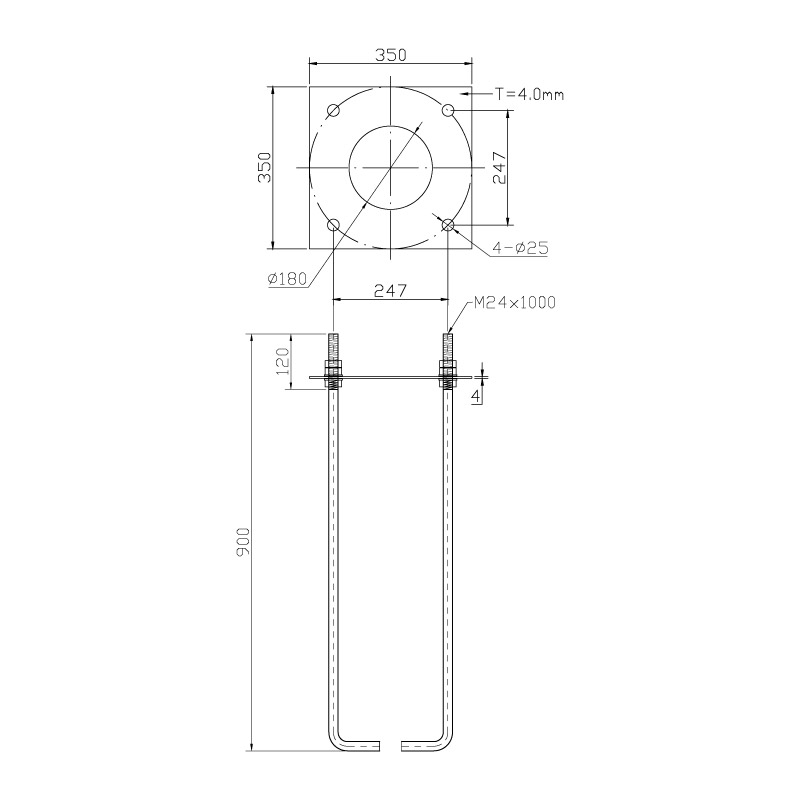

Anchor Bolts for Hinged Pole Diagram (PDF)

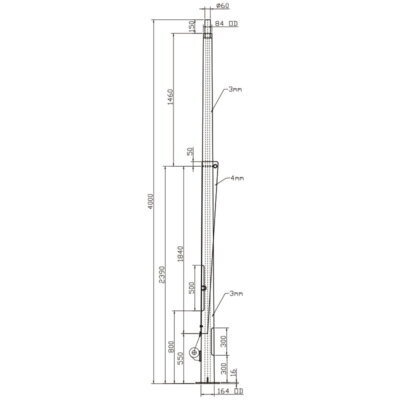

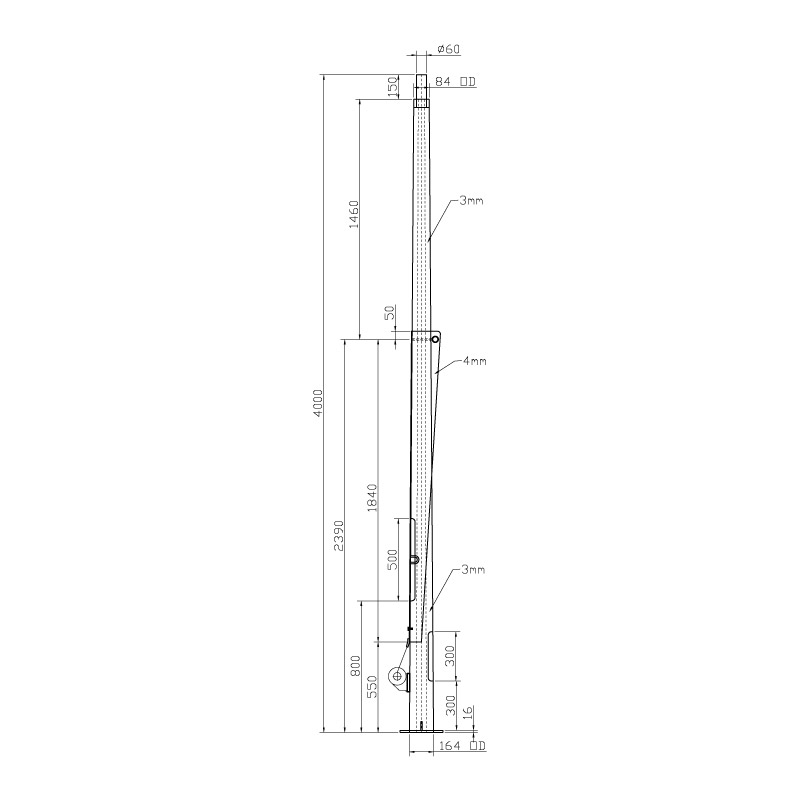

4m Hinged Pole+Bolt Drawing & Dimensions (PDF)
