2 Channel Mains Voltage RF Receiver
Sale!
2 Channel Mains Voltage RF Receiver
2 Channel Mains Voltage RF Receiver

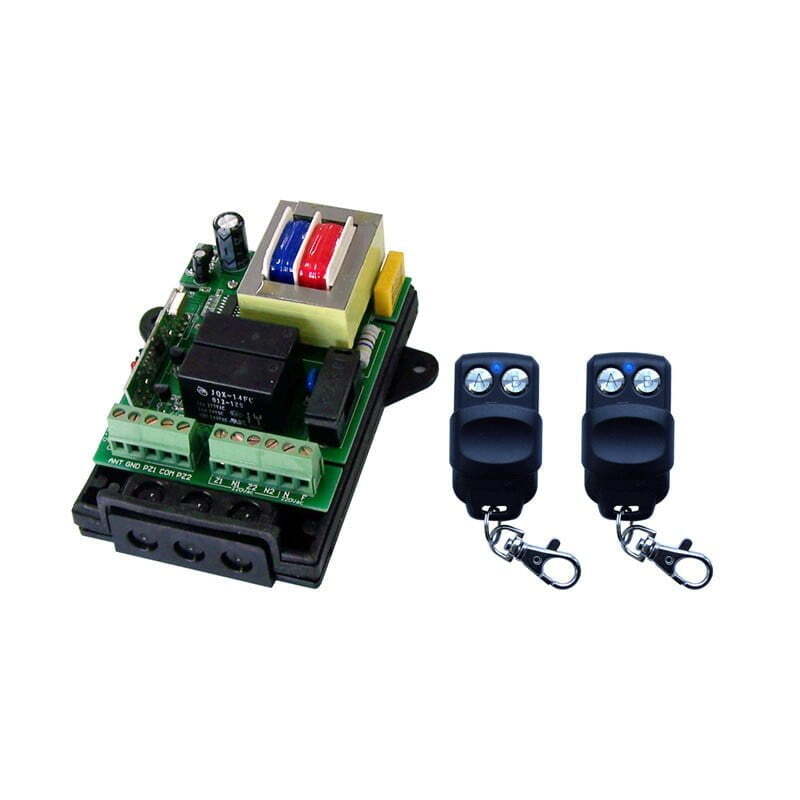

2 Channel Mains Voltage RF Receiver – ENSA-RS1

Original price was: $109.00.Current price is: $84.25.

2 Channel Mains Voltage RF Receiver

SKU: ENSA-RS1 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Automate your lighting with the ENSA-RS1 and Watchguard™ universal transmitters.

Product features:

  • 240VAC 433.92MHz fixed code receiver with up to 100m RF range (LoS)
  • Remote control your LED lighting for added security and energy savings
  • Integrate wireless PIR and reed switches for automatic activation of lights
  • Features 2 programmable relay outputs (latched or timed)
  • Comes standard with two remote control keyfobs
  • Adding outdoor remote control function for your light switch
  • Add up to 128 remotes or universal transmitters
  • IP55 weather/dust resistant; suitable for mounting with lighting
  • 3 year warranty

Register for Member Pricing

Integrates with Watchguard™ wireless universal transmitters*:

* Universal transmitters require modification and are sold separately.

Specification

Register for Member Pricing

Frequency
433.92MHz fixed code

Included Remotes
2

Ingress Protection
IP55

Input Voltage
240VAC 50 ~ 60Hz

Maximum Codes
128

Maximum Rated Load
1000W

Operating Environment
-20 ~ 55°C

Programmable Outputs
2 relay outputs (latched or timed)

Range (LoS)
100m





Register for Member Pricing

Download documents from the links below:

ENSA-RS1 Installation Manual (PDF)

ENSA Sensor Switch Series Product Brochure (PDF)
