Name: LTE 4G Door Intercom - 12 Buttons - 2 doors - Slave
Brand: Aristel
SKU: AN2106S-12D
Availability: InStock

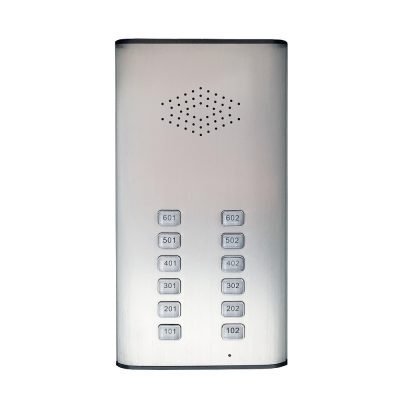

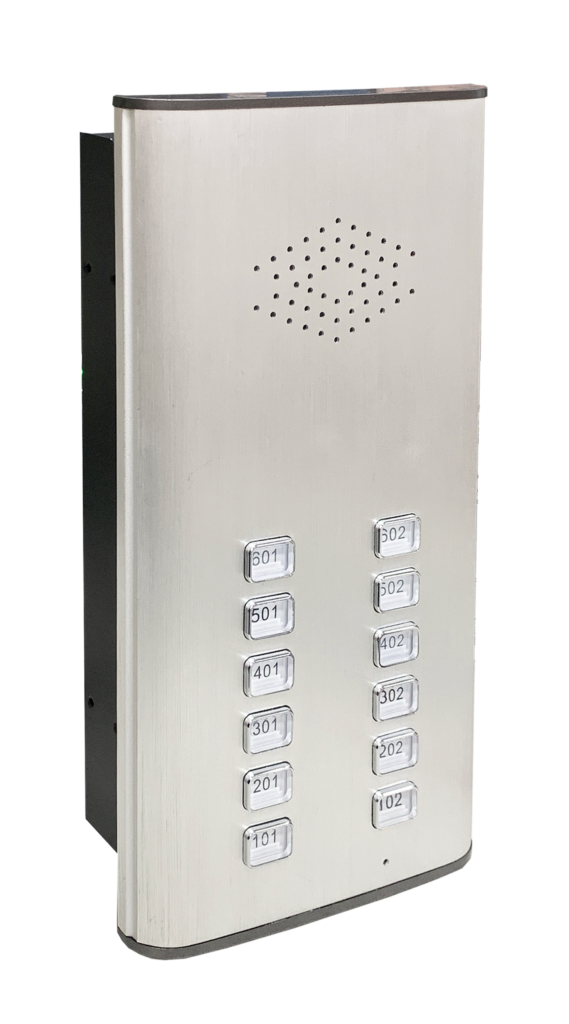

LTE 4G Door Intercom – 12 Buttons – 2 doors – Slave

Eliminate cables with this LTE 4G door audio intercom with keypad for up to 12 apartments. Set the intercom to call up to 3 numbers per apartment. Call in to open the door (1152 numbers). Requires Master AN2106M 12D

Description

The Aristel AN2106S-12D 4G LTE Door Intercom is a multi-function system designed to eliminate the cost of expensive cabling when installed in existing apartments or retirement complexes. The intercom supports up to 12 apartments with a single button for each apartment for ease of use. The intercom can be expanded with a slave unit which allows for the same SIM to be used for multiple doors on the same property. This is the slave version and required a Master intercom to operate.

Product Features

Illuminated keypad
Intercom can call up to 3 numbers sequentially to each of 12 apartments.
Remote access control of 2 gates or doors.
Up to 1152 authorized guests can activate the door release by calling the intercom.
IP54 rated
Set up via SMS/Smartphone APP/PC
Anti Vandal & Aluminium Design
Expand to more doors with slave unit.

Specification

Intercom Features

Supports calling up to 12 villas or apartments
2 Relays for access control.
Programmable timers for ring time, door open / closed time.
Access control by up to 1152 authorized guests by free call to intercom.
Intercom can be called for silent monitoring
Requires a Master station to function – AN2106M-12D

Interconnect parameters

input terminals for egress button
2 relays, each with NO/NC contacts
Inbuilt rectifier bridge enables AC or DC operation on 12-24 volts.
Adjustable speaker and microphone levels.
Network signal strength check by SMS.
Operating temperature -20C to 50C.

Security

Administrator only has SMS and dial in access for changing settings
Log of guests’ arrival times can be SMS to administrator

Physical properties

1 hotline programmable button. (Speed dial, Intercom etc.)
Operates on 12-24 volt AC or DC

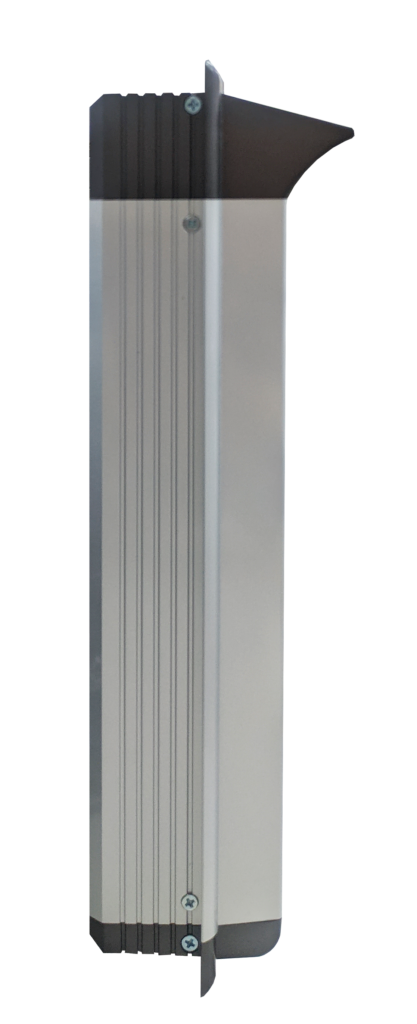

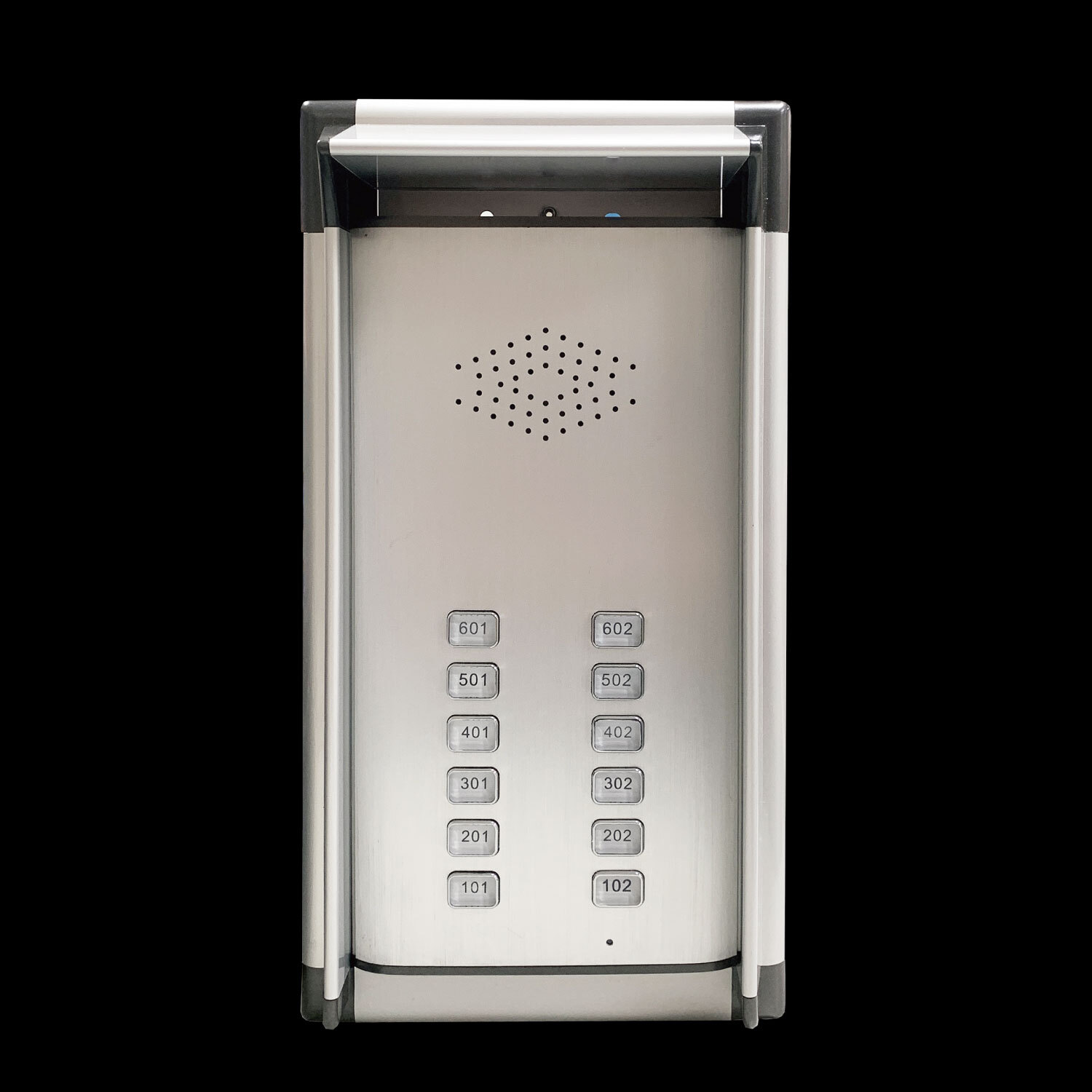

Rainhood and in & On wall mounting brackets ARE Included

Please ask your product question below:

LTE 4G Door Intercom – 12 Buttons – 2 doors – Slave

Description

Product Features

Related products

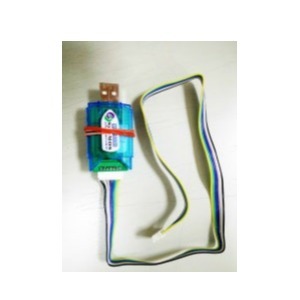

SS 1609 P – USB Programming Cable for AN1808 and AN2106M
