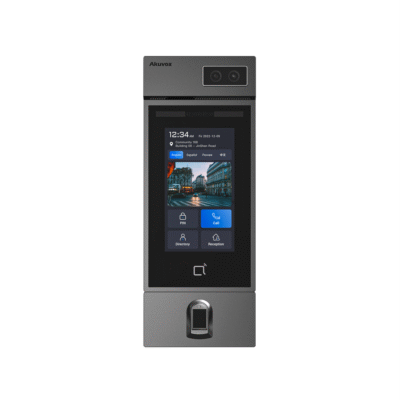

Akuvox S535 Expandable door station - fingerprint version

Akuvox Facial Recognition Door Phone with Functional Modules – FP

Login, Register, or Call for Price

Video SIP door intercom with:

2 SIP accounts
Card Reader
Face Recognition
5″ Colour Screen
2MP camera
116° FOV
2 input / 1 output relays
IP65 / IK08
Select Mount Type
Different models with expansion
LTE (4G) module

Free Shipping for orders over $600 (AU Only)*

Brand: Akuvox

Description

AK-S535-LTE – Facial Recognition Door Phone Expandable with Functional Modules – Fingerprint Module Version

Akuvox’s S535 features a modular architecture for flexible adaptation to various application scenarios. This model includes a fingerprint expansion module for access control. With innovative hardware design and scenario-based expandability it meets diversified access control requirements for both residential and commercial applications while adapting to evolving user and environmental needs.

Features

Aluminum panel with 5inch touchscreen
Linux operation system
Wide-angle camera 116º H 62º V
Two-way audio communication over IP networks with Echo Cancel feature
Multi-way access feature including Face Card PIN BLE & QR code
Support expandable module LTE or Fingerprint or Induction Loop
Flush-mounted & surface-mounted
Complies with SIP & ONVIF
Fingerprint Access Control

At a Glance

Aluminum panel with 5inch touchscreen;

Linux operation system;

Wide-angle camera: 116º (H), 62º (V);

Two-way audio communication over IP networks with Echo Cancel feature;

Multi-way access feature including: Face, Card, PIN, BLE & QR code;

Support expandable module: LTE or Fingerprint or Induction Loop;

Flush-mounted & surface-mounted;

Complies with SIP & ONVIF;

Physical & Power

Front Panel: Aluminum

Display: 5 Inch IPS LCD

Main Camera: 2M pixels, auto-lighting

Light Sensor: Support

Motion Sensor: Support

Wiegand Port: Support

RS485 Port: Support

RF Card Reader: 13.56MHz, 125kHz & NFC

Relays Out: 1

Inputs: 2

Microphone: 1

Speaker: 1

Reset: 1

BLE: Support

Tamper Alarm: Support

Expandable Module: Support

Ethernet Port: 1xRJ45, 10/100Mbps adaptive

802.3at Power-over-Ethernet

Power supply: DC 12V / 4A (max)

IP Rating: IP66

IK Rating: IK08

Installation: Flush-mounted & Wall-mounted

Size:210x100x27mm

Working Humidity: 10~90%

Working Temperature: -40°C ~ +55°C

Storage Temperature: -40°C ~ +70°C

Audio

SIP v1 (RFC2543), SIP v2 (RFC3261)

Narrowband audio codec: G.711a, G.711?

Wideband audio codec: G.722

DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

Echo Cancellation

Voice Activation Detection

Comfort Noise Generator

Video

Sensor: 1/2.9”, CMOS for main camera

Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p

Video codec: H.264

Video technology: HDR

Video resolution: up to 1920×1080

Max. image transfer rate: 1080p – 30fps

Viewing angle: 110°(H) / 62°(V)

Compatible to 3rd-Party-Video components, e.g. NVRs

Networking & Protocol

Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Door Entry Feature

Relays controlled individually by DTMF tones

Multi-way Unlock: Face, Card, PIN, BLE & QR code

Camera permanently operational

Auto-night mode with LED illumination

White balance: auto

Minimum illumination: 0.1LUX

Deployment & Maintenance

Auto-Provisioning

Web management portal

Web-based packet dump

Configuration backup / restore

Entry log export

Access table export / import

Firmware upgrade

System logs (include door access logs)

Application Scenario

Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings

Accessories

Akuvox S535 On Wall Box for Extender

Akuvox S535 In Wall Box for Extender
