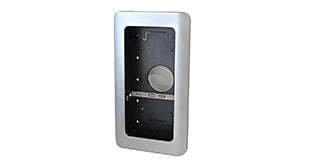

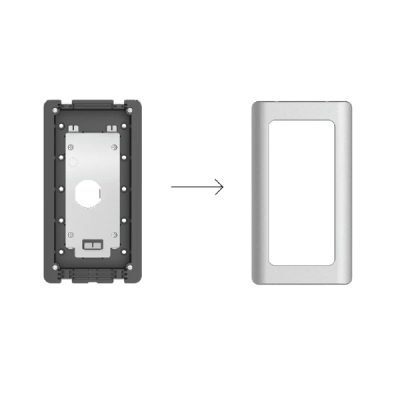

GDS Series In-Wall Mounting Kit

The In-Wall Mounting Kit is available for use with the GDS3710 and GDS3705.

This mounting kit allows the GDS series to be mounted flushed within a wall rather on the surface of the wall.

It supports solid wall, stud and drywall (hollow wall) installatio n. When installing any GDS series device or the In-Wall Mounting kit, please follow local building and electrical code.

The device is suggested to be installed with the bottom of the device 125-140cm above the ground.

Included in the box:

1 installation bracket
1 cover plate
1 plastic box
1 drill template
Quick reference guide
1 metal frame
6 piece anchor and screw set
12 screws (2 different lengths
12 nuts (two different styles)
6 anti-tamper screws
1 anti-tamper hex key

Required In-Wall Space:

99.8mm (3,93 inches) x 193.88mm (7.63 inches), 35mm deep (1.38 inches)
