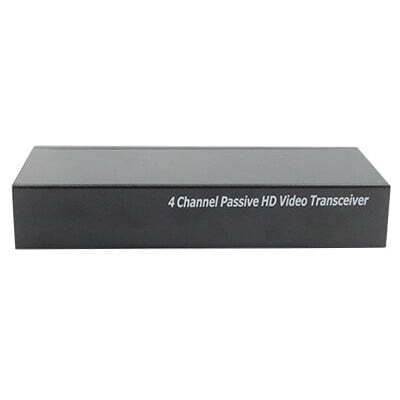

4 Channel Passive HDCVI/Analogue Balun
Sale!
4 Channel Passive HDCVI/Analogue Balun
8 Channel Passive HDCVI/Analogue Balun

4 Channel Passive HDCVI/Analogue Balun – VSBALHDP4

Original price was: $35.75.Current price is: $29.70.

4 Channel Passive HDCVI/Analogue Balun

SKU: VSBALHDP4 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The VSBALHDP4 4 channel video balun minimises the cost of CCTV installations allowing network cabling (CAT5/5e/6) to be used instead of coax cable in HDCVI installations.

Product features:
• Compatible with up to 4 HDCVI, HDTVI and AHD signals
• Transmit HD video up to 400m (passive to passive)
• Transmit HD video up to 600m (passive to active)
• Compatible with CAT5/CAT5e/CAT6 UTP cable
• RJ45/green terminal block connects UTP cable
• Compact design with surge protection
• Passive – no power supply required

Includes:
1 x 4 Channel Passive HDCVI/Analogue Balun
1 x Installation manual
2 x Rack-mount ears
8 x Rack-mount screws
4 x Rubber base pads

Specification

Register for Member Pricing

Channels
4

Dimensions
180 x 100 x 45mm

Interference Rejection
>60dB

Signal Compatibility
HDCVI / HDTVI / AHD

Signal Transmission Band
0-65MHz

Transmission Distance (AHD)
720p: 350m / 1080p: 200m

Transmission Distance (HDCVI)
720p: 400m / 1080p: 250m / 4.0MP: 200m

Transmission Distance (HDTVI)
720p/1080p: 250m

UTP Cable Connector
8 pin green terminal block / RJ-45

UTP Cable Connector Protection
2KV (different mode) / 4KV (common mode)

Video Connector
BNC-F

Video Connector Protection
2KV (common mode)

Weight
0.4kg



Download documents from the following links:

Securview VSBALHDP Series Datasheet (PDF)
