Heavy Duty Hard Wired Reed Switch (Brown) - RSW-M1B
Sale!
Heavy Duty Hard Wired Reed Switch (Brown) - RSW-M1B - Image 2
Heavy Duty Hard Wired Reed Switch (Brown) - RSW-M1B - Image 3

Heavy Duty Hard Wired Reed Switch (Brown) – RSW-M1B

Original price was: $19.00.Current price is: $13.66.

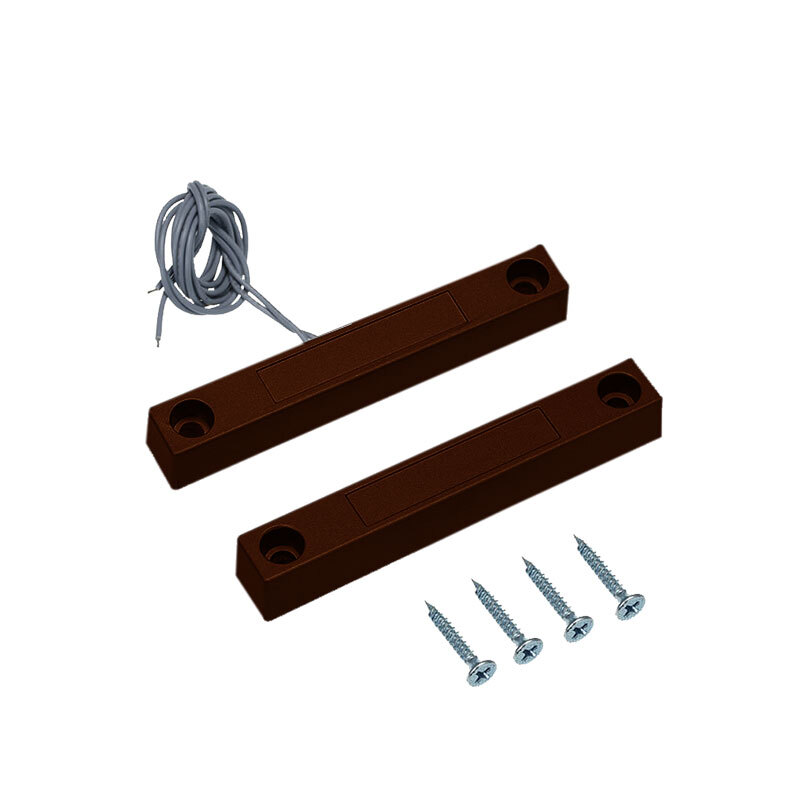

Heavy Duty Hard Wired Reed Switch – Brown

SKU: RSW-M1B Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The RSW-M1 is a heavy duty hard wired reed switch, designed for window and door applications.

Product features:

  • Heavy duty magnetic contact switch
  • Large magnet sensor gap, up to 50mm
  • Normally closed (NC) reed switch output
  • 10W maximum contact rating ( up to 100V, 0.5A)
  • 250mm sensor leads (22 AWG / Ø0.64mm)
  • Robust casing of zinc alloy construction
  • Surface Mounted, screws included
  • Dimensions 106 x 16 x 16mm

Register for Member Pricing

Available in silver, white or brown casing.

Specification

Contact
N/C

Dimensions
160mm x 16mm x 16mm

Gap
50mm

Max Current
0.5A

Max Rating
10W

Max Voltage
100VDC

Type
Reed Switch



Register for Member Pricing

Download documents from the following links:

Watchguard RSW-M1 Series Datasheet (PDF)
