The sensor analyses two sequential signals of different frequencies allowing detection of both shock signal and glass breakage preventing false alarms. The detector can be mounted on a wall providing up to 15m movement and 10m glass break coverage, allowing you to protect several windows at once.
Product features:
• Quad (Four element) pyrosensor
• Two independent relay outputs for GLASS/SHOCK and PIR alarm signals
• Adjustable PIR / GLASS / SHOCK sensitivity
• Automatic temperature compensation
• Height installation: 1.8 ~ 2.4m
• Pet immunity up to 25Kg (active below 1m)
• PIR Range: 15m
• Glass Break Range: 10m
• EMI Protection: 50,000V
• Contacts of Alarm: N.C.
• Dimensions: 120 x 65 x 45mm
• Input Voltage: 12V

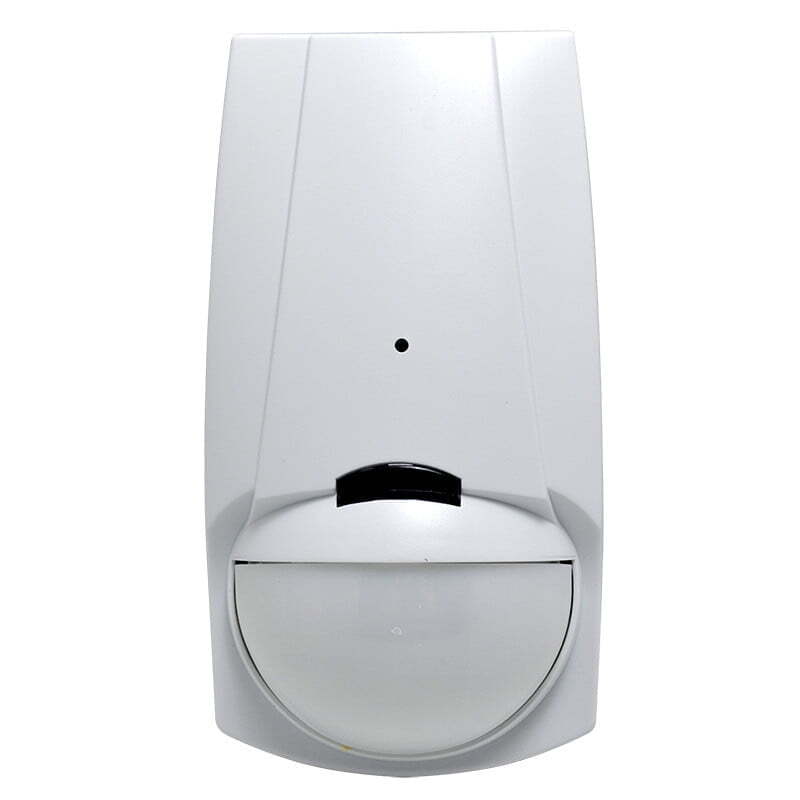

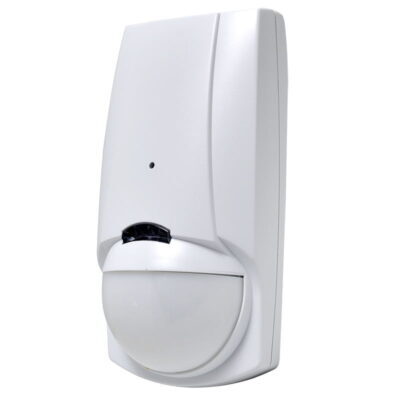

PIR with Glass and Shock Detection
$59.00Original price was: $59.00.$43.55Current price is: $43.55.Description
The sensor analyses two sequential signals of different frequencies allowing detection of both shock signal and glass breakage preventing false alarms. The detector can be mounted on a wall providing up to 15m movement and 10m glass break coverage, allowing you to protect several windows at once.
Product features:
• Quad (Four element) pyrosensor
• Two independent relay outputs for GLASS/SHOCK and PIR alarm signals
• Adjustable PIR / GLASS / SHOCK sensitivity
• Automatic temperature compensation
• Height installation: 1.8 ~ 2.4m
• Pet immunity up to 25Kg (active below 1m)
• PIR Range: 15m
• Glass Break Range: 10m
• EMI Protection: 50,000V
• Contacts of Alarm: N.C.
• Dimensions: 120 x 65 x 45mm
• Input Voltage: 12V
