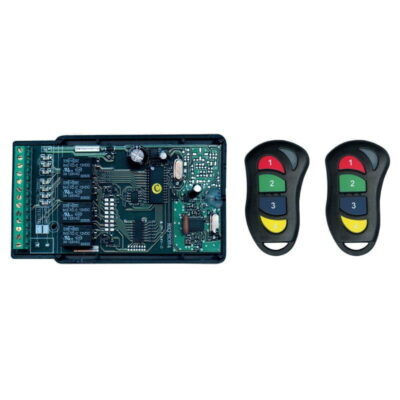

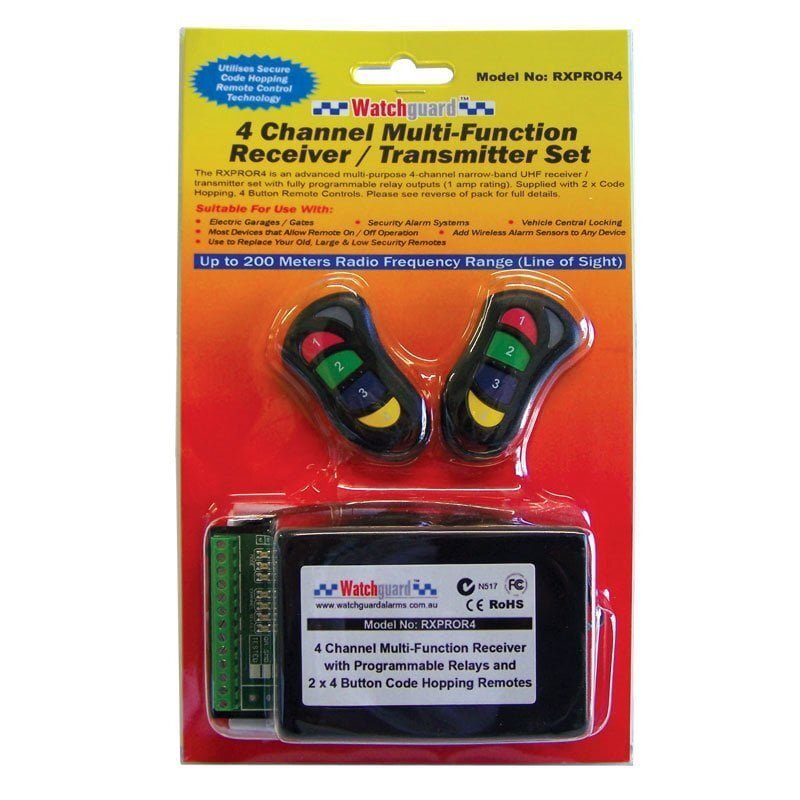

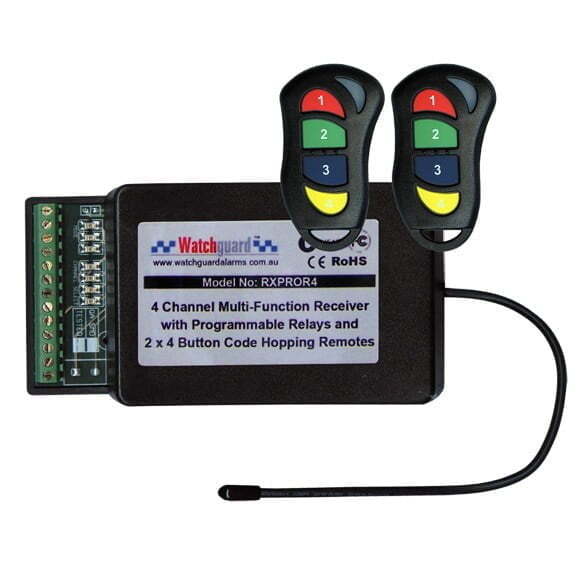

4 Channel Multi-Function Receiver / Transmitter Set – 433.92 MHz with Onboard Relays – RXPROR4

The RXPROR4 is an advanced multi-purpose 4-channel narrow-band UHF receiver / transmitter set with fully programmable relay outputs (1 amp rating). It is supplied as standard with 2 x code hopping, 4 button remote controls with long life lithium batteries. It can be used to add Watchguard wireless alarm accessories to virtually any alarm panel or device.

– Up to 200m radio frequency range (line of sight)
– All outputs are individually programmable to suit almost any application (momentary, latched, timed or pulsed)
– Up to 5 high security code hopping remotes (anti-scan, anti-code grabbing) can be used
– Power supply requirement: 12VDC @ 500mA
– Compatible with Watchguard wireless alarm detectors
– Up to 4 wireless detectors can be used
– Supports detector low battery, supervision & tamper signal outputs
– Step by step programming via remote control & indication via feature and channel LEDs
