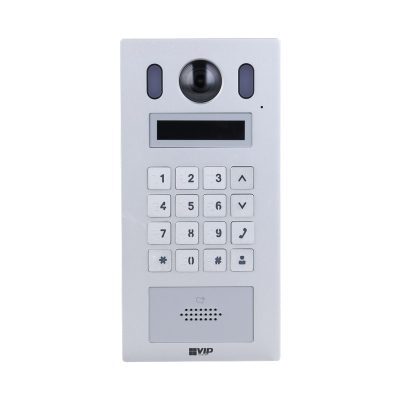

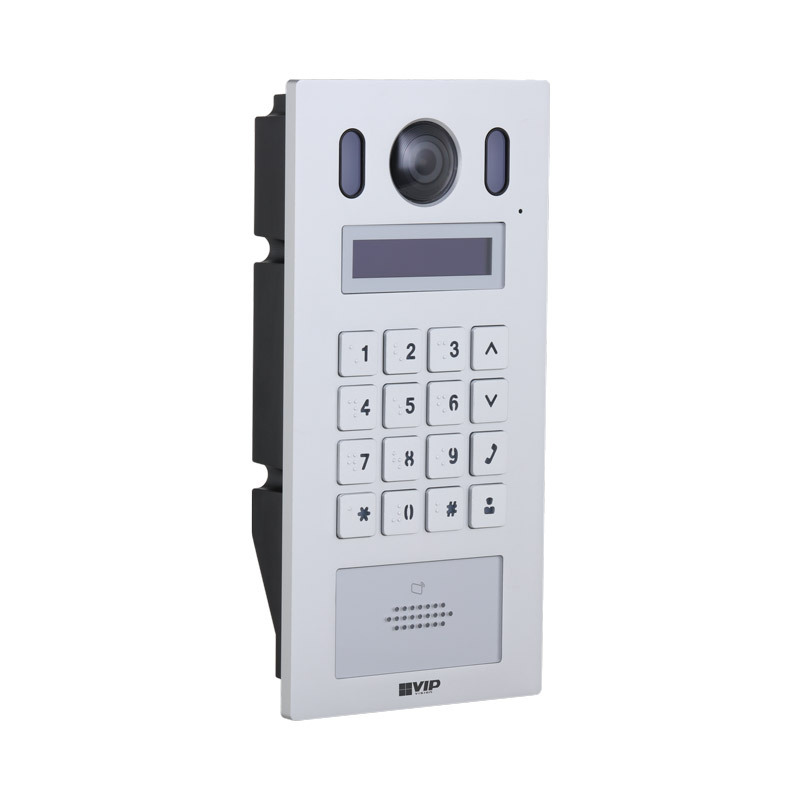

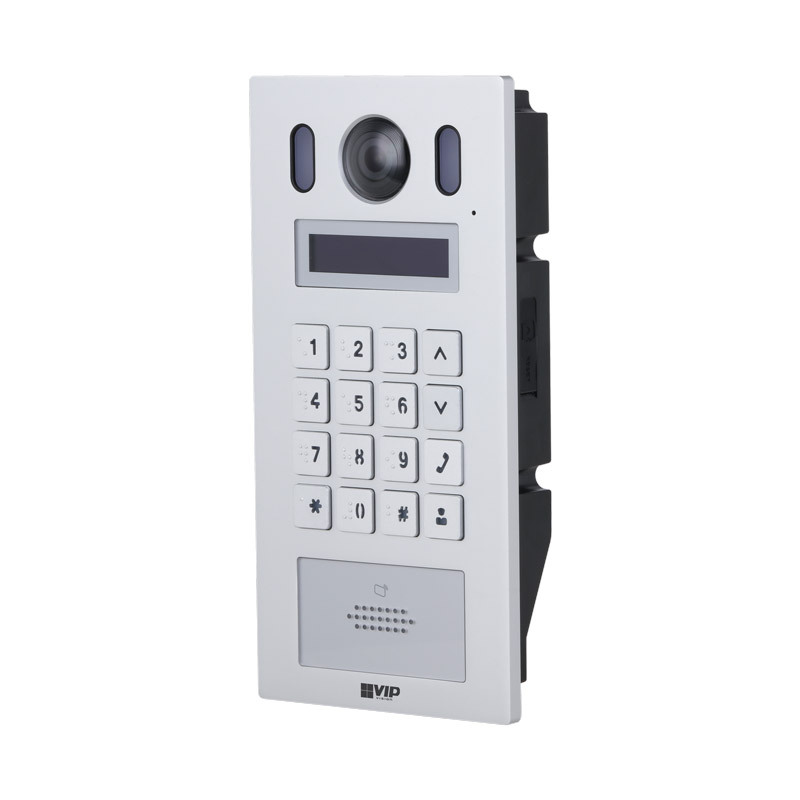

This INTIPADSD2 is an intercom door station from the VIP Vision Apartment Series which can improve access and communication in multi-dwelling premises. It features support for intercom upgrades via existing 2-wire infrastructure and for new IP installations. It features keypad or IC card unlock for easy access.
Product features:
1/2.9’’ 2.0MP sensor, 1080p Full HD resolution
Wide angle lens with 140° horizontal field of view
Keypad for code unlock & NFC reader for card access
Connect up to 200 intercom monitor(s) via Ethernet
* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.

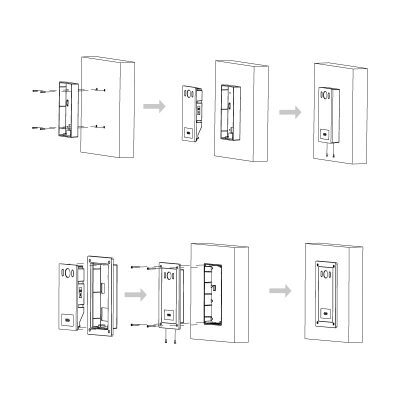

* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.
*This door station is compatible with 13.56MHz NFC cards only.
*Please note that this model requires a firmware update to use remote access/DMSS app.
Specifications
General
Main Processor
Embedded Microprocessor
Button Illumination
Backlit 2.3″ OLED, Supplemental White Light (AGC)
Card Support
Mifare, Up to 30mm card detection, AM Modulation, 13.56MHz, 42dBuA/m@10m max. TX power
Tamper Detection
Yes
Internal MicroSD Slot
MicroSD Slot, up to 256GB (sold separately)
Max. Additional Door Stations
20
Max. Indoor Monitors
500
App Connection
N/A
Camera
Camera System
1/2.9″ 2.0 Megapixel CMOS with 2mm lens (Horizontal. FoV: 140°)
Low-Light Application
N/A
Input / Output

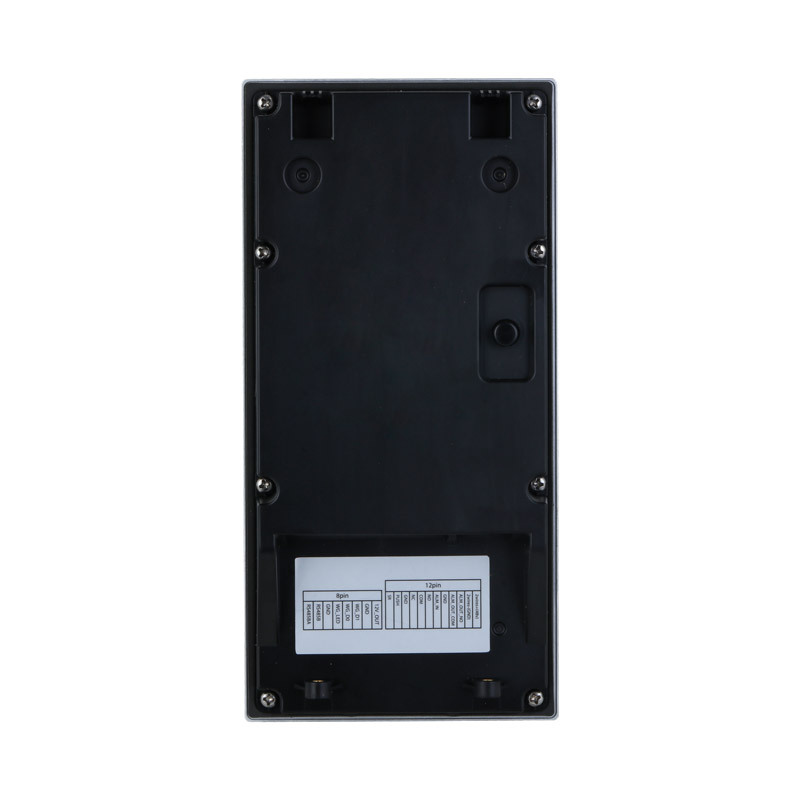

1 x RJ45, 1 x 12V/600mA, 1 x Alarm I/O, 1 x Wiegand, 1 x RS-485
Audio / 2-Way Talk
Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
Apartment D2 Series IP Door Station – INTIPADSD2
$564.85Original price was: $564.85.$471.90Current price is: $471.90.Description
This INTIPADSD2 is an intercom door station from the VIP Vision Apartment Series which can improve access and communication in multi-dwelling premises. It features support for intercom upgrades via existing 2-wire infrastructure and for new IP installations. It features keypad or IC card unlock for easy access.
Product features:
* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.
*This door station is compatible with 13.56MHz NFC cards only.
*Please note that this model requires a firmware update to use remote access/DMSS app.
Specifications
Download documents for VIP Vision Apartment Series intercoms below:
VIP Vision Apartment Series INTIPADSD2 Datasheet (PDF)
Please ask your product question below:
Related products
Residential IP Intercom Monitor with Handset (Black) – INTIPMONDBH2
$293.15Original price was: $293.15.$253.01Current price is: $253.01.Residential Series Touchscreen IP Intercom Monitor (Black) – INTIPMONKB
$240.90Original price was: $240.90.$171.56Current price is: $171.56.Akuvox Facial Recognition Door Phone with Functional Modules – IL
Login, Register, or Call for PriceAvailable on back-order
View productRead moreDesktop Mount Bracket for Intercom Monitors – INTIPMON-BKT

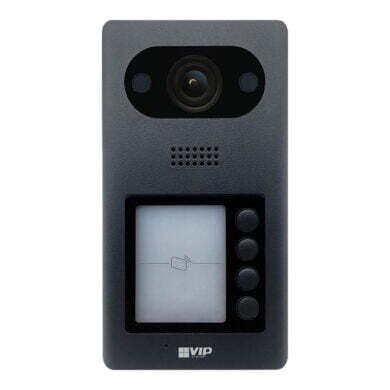

$24.31Original price was: $24.31.$20.98Current price is: $20.98.Residential IP Intercom Door Station – INTIPRDSJ
$184.47Original price was: $184.47.$159.21Current price is: $159.21.Residential Series Touchscreen IP Intercom Monitor (White) – INTIPMONKW

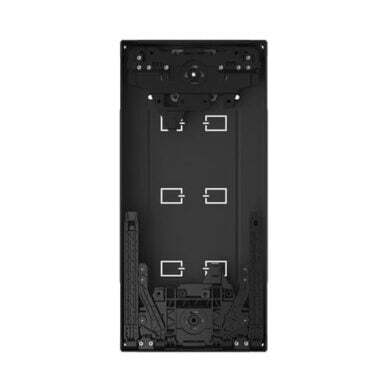

$240.90Original price was: $240.90.$171.56Current price is: $171.56.2N® IP Style – Surface Mount Box
$169.40Residential IP Intercom Monitor with Handset (White) – INTIPMONDWH2

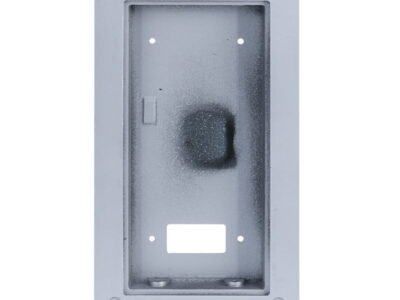

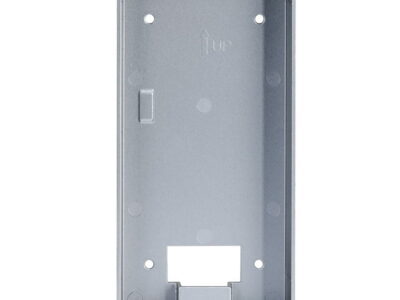

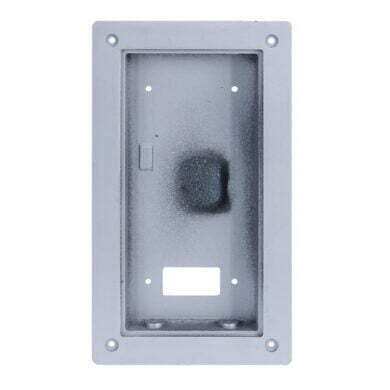

$293.15Original price was: $293.15.$253.01Current price is: $253.01.Surface Mount Box for INTIPADSD & INTIPRDSD – INTIPADSDSB
