Active Online Security » Shop » Products » Residential Intercom » 2 Wire Intercom » 2-Wire IP Intercom » Residential D2 Series IP Door Station – INTIPRDSD2
Residential Series IP Outdoor Station with keypad, RFID
Sale!
Residential Series IP Outdoor Station with keypad, RFID

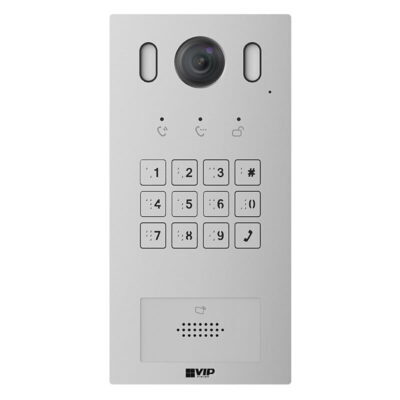

Residential D2 Series IP Door Station – INTIPRDSD2

Guest Price – Login to see Member Pricing

Original price was: $379.00.Current price is: $272.25.

Video door station with 2MP camera, keypad and NFC access, 2-wire/IP support, and IP65/IK08-rated aluminium faceplate—smart access for premium homes.

Available on back-order

SKU: INTIPRDSD2 Categories: , , Tags: , , , , , , ,
Free Shipping for orders over $600 (AU Only)*
Brand: ,

Description

Residential IP Video Door Station with Keypad, NFC Access & 2-Wire Compatibility

The INTIPRDSD2 is a versatile video intercom door station tailored for large single-dwelling residences, offering seamless upgrades via existing 2-wire infrastructure or integration into modern IP systems. Equipped with a 2.0MP Full HD sensor and 140° horizontal viewing angle, it delivers wide coverage and crystal-clear video.

Access is streamlined with a built-in keypad for code entry and a 13.56MHz NFC card reader, giving homeowners multiple options for secure entry. The station supports up to 10 indoor monitors, ringing all on call, and features a tactile mechanical button interface for intuitive operation.

Its durable IP65/IK08 aluminium faceplate offers weather and vandal resistance, complemented by supplemental white light illumination for clear visibility in low light. Powered via 48VDC or PoE (802.3af/at), this unit is built to meet modern access control needs in premium residential environments.

Register for Member Pricing

For optimal installation, mount in a sheltered location and seal all edges and cable penetrations with outdoor-grade silicone.

You must order a flush or surface mount box for this intercom as it is not included.



Register for Member Pricing



Specifications

General
Main Processor
Embedded Microprocessor
Button Illumination
Supplemental White Light (AGC) with backlit keypad
Card Support
Mifare, Up to 30mm card detection, AM Modulation, 13.56MHz, 42dBuA/m@10m max. TX power
Tamper Detection
Yes
Internal MicroSD Slot
MicroSD Slot, up to 256GB (sold separately)
Max. Additional Door Stations
20
Max. Indoor Monitors
10
App Connection
QR Code
Camera
Camera System
1/2.9″ 2.0 Megapixel CMOS with 2mm lens (Horizontal. FoV: 140°)
Low-Light Application
N/A
Input / Output
1 x RJ45, 1 x 12V/600mA, 1 x Alarm I/O, 1 x Wiegand, 1 x RS-485
Audio / 2-Way Talk
Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
Ethernet / Network
10M/100Mbps Self-adaptive / TCP/IP protocol
Environmental
Vandal Resistant
IK08
Ingress Protection
IP65 (Front plate)
Construction
N/A
Installation Options
Surface mount / Flush mount (sold separately)
Power Input
48VDC, PoE (802.3af/at)
Power Consumption
Standby <5W / Operation <7W
Weight
0.69kg

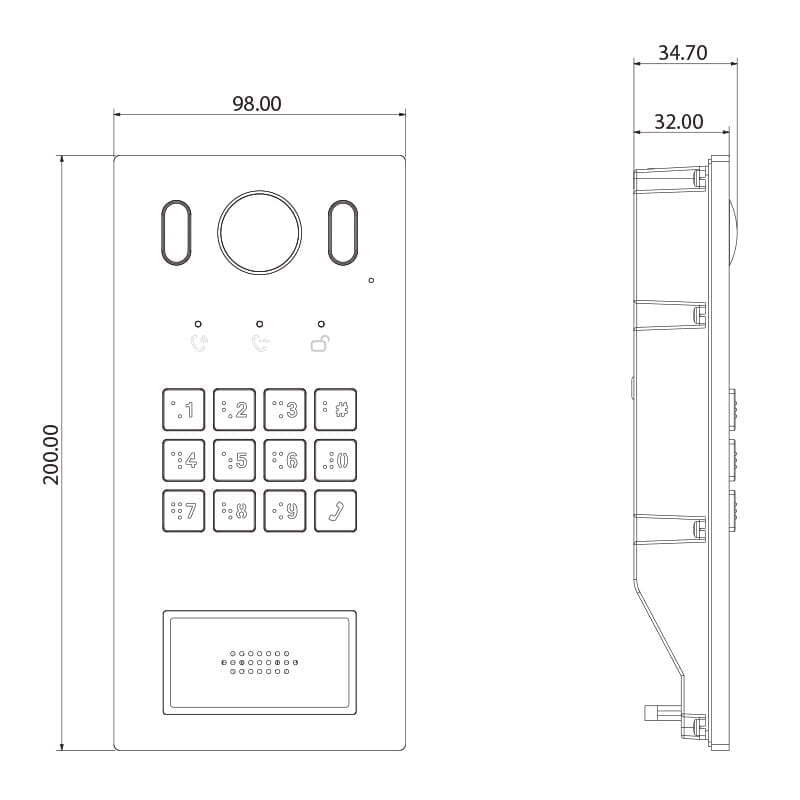

Dimensions
200 x 98 x 35mm
Other
Interface
1 x Door Chime, 1 x Exit Button, 1 x Lock Control
Operating Environment
-40°C ~ +60°, 10~90% relative humidity
Warranty (Years)
4
