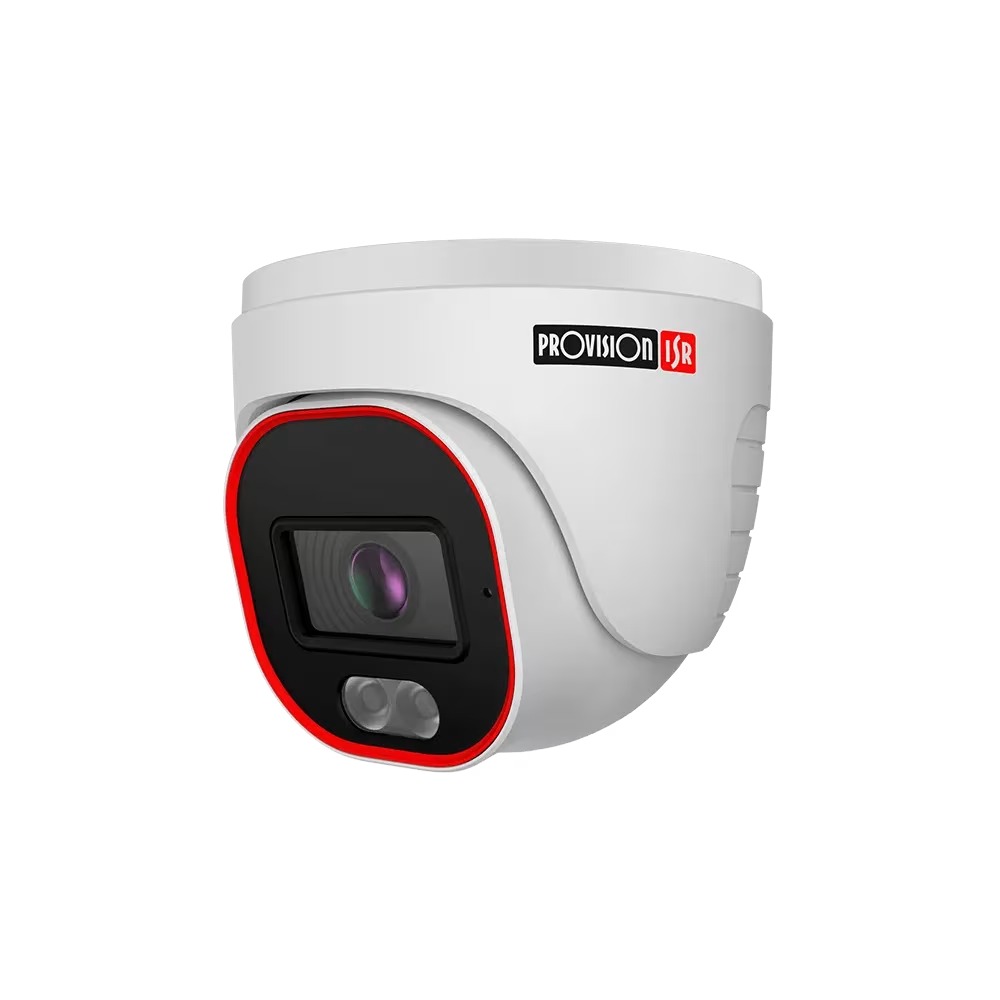

20M IR / White LED 2MP Fixed Lens Dome - DH-320IPBN-28
20M IR / White LED 2MP Fixed Lens Dome - DH-320IPBN-28 - Image 2

20M IR / White LED 2MP Fixed Lens Dome – DH-320IPBN-28

Login, Register, or Call for Price

This 2MP hybrid dome camera is made of aluminum alloy and polycarbonate. With it’s hybrid capability, the white LED will enlighten the scene when humans being detected
SKU: DH-320IPBN-28 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

2MP Fixed Lens Dome/Turret Camera with Hybrid LED

The DH-320IPBN-28 is a high-performance 2MP hybrid dome camera designed for short-distance surveillance up to 20m in both indoor and outdoor settings.

Constructed from durable aluminum alloy and polycarbonate, it ensures long-term reliability and protection. Featuring hybrid LED technology, the camera activates a white LED upon human detection, delivering full-color imaging even in low-light conditions.

Register for Member Pricing

With its exceptional performance, reliability, and affordability, the DH-320IPBN-28 is an ideal solution for basic security installations.

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

Register for Member Pricing

b-sight-2mp-features

DH-320IPBN-28

3rd Party Cyber Protection

General
N/A
Protection Methods
N/A

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/3s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.2lux / Night: 0.046lux (@F2.2, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
Digital WDR, BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip
Privacy Zone
Yes

Events and Analytics

Analytics
Human & Vehicle Recogition: Sterile Area, Line Crossing *Human only
Motion Detection
Yes

Compression

Resolution
2MP (1920×1080) / 1MP (1280×720) / D1 (704×576) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920×1080) / 1MP (1280×720) (1~30fps) Substream: D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 5Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (93°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
41m(133ft)
Recognize
8m(26ft)
Identify
4m(13ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, 802.1X, RTSP, RTMP, Auto Report
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile S

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone
Alarm
No
SD Card
No
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
20m (1 High-Power IR LED) 20m (1 High-Power White LED)
Power Supply
DC12V/~300mA / PoE/~4.5W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø97mm×82.6mm
Weight (gross)
~300g
Hard Reset Button
No

Documents

DH-320IPBN-28 Datasheet

320IPS 340IPS 380IPS S-Series v2 Manual (All Models)

Register for Member Pricing

Software:

Ossia Video Player

Latest VMS Version

Register for Member Pricing

IP Tool Archive

2MP Fixed Lens Dome/Turret Camera with Hybrid LED

The DH-320IPBN-28 is a high-performance 2MP hybrid dome camera designed for short-distance surveillance up to 20m in both indoor and outdoor settings.

Register for Member Pricing

Constructed from durable aluminum alloy and polycarbonate, it ensures long-term reliability and protection. Featuring hybrid LED technology, the camera activates a white LED upon human detection, delivering full-color imaging even in low-light conditions.

With its exceptional performance, reliability, and affordability, the DH-320IPBN-28 is an ideal solution for basic security installations.

Register for Member Pricing

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

b-sight-2mp-features

DH-320IPBN-28

3rd Party Cyber Protection

General
N/A
Protection Methods
N/A

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/3s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.2lux / Night: 0.046lux (@F2.2, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
Digital WDR, BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip
Privacy Zone
Yes

Events and Analytics

Analytics
Human & Vehicle Recogition: Sterile Area, Line Crossing *Human only
Motion Detection
Yes

Compression

Resolution
2MP (1920×1080) / 1MP (1280×720) / D1 (704×576) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920×1080) / 1MP (1280×720) (1~30fps) Substream: D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 5Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (93°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
41m(133ft)
Recognize
8m(26ft)
Identify
4m(13ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, 802.1X, RTSP, RTMP, Auto Report
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile S

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone
Alarm
No
SD Card
No
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
20m (1 High-Power IR LED) 20m (1 High-Power White LED)
Power Supply
DC12V/~300mA / PoE/~4.5W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø97mm×82.6mm
Weight (gross)
~300g
Hard Reset Button
No

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
DH-320IPBN-28

Detect (25px/m)
47m

Observe (63px/m)
18m

Recognise (125px/m)
9m

Identify (250px/m)
4.7m

Register for Member Pricing

For more information on selecting a CCTV camera please see this post:  Choosing the right CCTV camera for your application.
