10M IR 4MP Fixed Lens Anti-Vandal Dome - DMA-340IPEN-28-V4
10M IR 4MP Fixed Lens Anti-Vandal Dome - DMA-340IPEN-28-V4 - Image 2
10M IR 4MP Fixed Lens Anti-Vandal Dome - DMA-340IPEN-28-V4 - Image 3

10M IR 4MP Fixed Lens Anti-Vandal Dome – DMA-340IPEN-28-V4

Login, Register, or Call for Price

4MP IP Camera • Eye-Sight v2 Series • Real-Time • NDAA • 1/3″ CMOS • 2.8mm Fixed Lens • DDA Object Detection • Face Detection
SKU: DMA-340IPEN-28-V4 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

10m IR 4MP DDA Analytics fixed Lens Small Anti-Vandal Dome Camera With Built-in Check Point Protection and Dual System technology

The

The DMA-340IPEN-28-V4 camera has a 2.8mm fixed lens and a protective dome.

With its 11cm diameter, this 4MP mini-dome camera is designed for short-distance surveillance (up to 10m) in indoor scenarios. The vandal-proof IK10 protection makes it extremely hard to sabotage.

Fitted with the new “Dual System” technology, the camera can deal with internal anomalies independently, making it more redundant to software-based issues.

The camera offers broad possibilities for Analytics, from Face Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the newly developed DDA2, which can perform object recognition, object counting, and investigate specifics such as age, color, gender, vehicle brand and much more. The DMA-340IPEN-28-V4 camera is here to end false alarms.

Check Point Quantum IoT Nano agent is integrated into this model. It provides an advanced threat prevention layer against the common attack vectors at runtime.

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

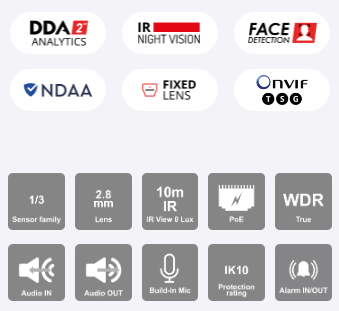

DMA-340IPEN-28-V4-features

DMA-340IPEN-28-V4  Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
2592×1520
Electronic Shutter
1/2s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area) AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection
Yes

Compression

Resolution
4MP (2592×1520) / 3MP (2304×1296) / 2MP (1920×1080) / D1 / QVGA /CIF
Frame Rate
1-25/30FPS in Normal Mode. 1-50/60FPS in HFR Mode**
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP(2592×1520) / 2K (2560×1440) / 3MP / 2MP / 1MP Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 7Mbps@H.265 / 64Kbps ~ 8Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (93°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
60.69m(199.11ft)
Recognize
12.14m(39.82ft)
Identify
6.07m(19.91ft)

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input + Audio output
Alarm
Alarm in + Alarm Out
SD Card
Event/Schedule based Main/Substream recording (Up to 256Gb)
Wiegand
No
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
10m (2 High-Power IR LED)
Power Supply
DC12V/~400mA / PoE/~6.5W
Protection Rate
Vandal Proof: IK10
Work Environment
-30°C~50°C, 10%~90% Humidity
Bracket
3-Axis Gimbal
Dimensions
?110.4mm×62mm
Weight (gross)
430g
Hard Reset Button
Yes

Documents

DMA-340IPEN-28-V4 Datasheet

v5.x 320IPEN 340IPEN FL Series Manual

Register for Member Pricing

Software:

Latest CMS Version

Latest CMS for MAC

Register for Member Pricing

Latest IP Tool

10m IR 4MP DDA Analytics fixed Lens Small Anti-Vandal Dome Camera With Built-in Check Point Protection and Dual System technology

The

The DMA-340IPEN-28-V4 camera has a 2.8mm fixed lens and a protective dome.

With its 11cm diameter, this 4MP mini-dome camera is designed for short-distance surveillance (up to 10m) in indoor scenarios. The vandal-proof IK10 protection makes it extremely hard to sabotage.

Fitted with the new “Dual System” technology, the camera can deal with internal anomalies independently, making it more redundant to software-based issues.

The camera offers broad possibilities for Analytics, from Face Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the newly developed DDA2, which can perform object recognition, object counting, and investigate specifics such as age, color, gender, vehicle brand and much more. The DMA-340IPEN-28-V4 camera is here to end false alarms.

Check Point Quantum IoT Nano agent is integrated into this model. It provides an advanced threat prevention layer against the common attack vectors at runtime.

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.
DMA-340IPEN-28-V4-features

DMA-340IPEN-28-V4  Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
2592×1520
Electronic Shutter
1/2s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area) AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection
Yes

Compression

Resolution
4MP (2592×1520) / 3MP (2304×1296) / 2MP (1920×1080) / D1 / QVGA /CIF
Frame Rate
1-25/30FPS in Normal Mode. 1-50/60FPS in HFR Mode**
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP(2592×1520) / 2K (2560×1440) / 3MP / 2MP / 1MP Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 7Mbps@H.265 / 64Kbps ~ 8Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (93°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
60.69m(199.11ft)
Recognize
12.14m(39.82ft)
Identify
6.07m(19.91ft)

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input + Audio output
Alarm
Alarm in + Alarm Out
SD Card
Event/Schedule based Main/Substream recording (Up to 256Gb)
Wiegand
No
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
10m (2 High-Power IR LED)
Power Supply
DC12V/~400mA / PoE/~6.5W
Protection Rate
Vandal Proof: IK10
Work Environment
-30°C~50°C, 10%~90% Humidity
Bracket
3-Axis Gimbal
Dimensions
?110.4mm×62mm
Weight (gross)
430g
Hard Reset Button
Yes

Register for Member Pricing

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
DMA-340IPEN-28-V4

Detect (25px/m)
59m

Observe (63px/m)
23.5m

Recognise (125px/m)
11.8m

Identify (250px/m)
5.9m

Register for Member Pricing

For more information on selecting a CCTV camera please see this post:  Choosing the right CCTV camera for your application.
