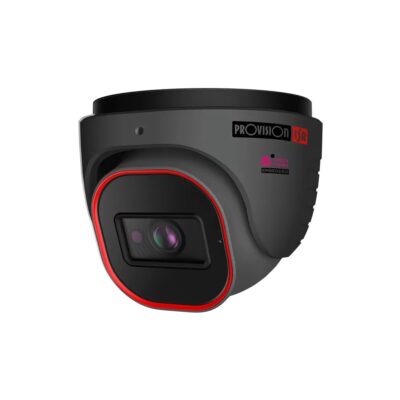

20M 4MP IR Fixed Lens Dome - DI-340IPEN-28-G-V4
20M 4MP IR Fixed Lens Dome - DI-340IPEN-28-G-V4 - Image 2
20M 4MP IR Fixed Lens Dome - DI-340IPEN-28-G-V4 - Image 3

20M 4MP IR Fixed Lens Dome – DI-340IPEN-28-G-V4

Login, Register, or Call for Price

4MP IP Camera • Eye-Sight v2 Series • Real-Time • 1/2.8″ CMOS • NDAA Certified • 2.8mm Fixed Lens • DDA Object Detection • Face Detection • Grey
SKU: DI-340IPEN-28-G-V4 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

4MP Dome/Turret Camera with IR LED and Advanced DDA2 Analytics

Optimized for short-distance surveillance, the DI-340IPEN-28-V4 camera features a high-resolution 4MP sensor and a 2.8mm fixed lens, delivering clear and reliable monitoring up to 20 meters in both indoor and outdoor settings.

With Dual System technology, the camera autonomously manages internal anomalies, minimizing software-related issues and ensuring uninterrupted operation.

Equipped with DDA Analytics (Detect, Distinguish, Alert) and the advanced DDA2 system, this model offers precise object recognition, counting, and attribute analysis, identifying details such as age, color, gender, and vehicle brand to significantly reduce false alarms.

Register for Member Pricing

For robust security, the Check Point Quantum IoT Nano Agent is integrated, providing advanced threat prevention against common attack vectors, reinforcing cybersecurity at runtime.

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

DI-340IPEN-28-G-features

DI-340IPEN-28-G Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS
Effective Pixels
2592×1520
Electronic Shutter
1/2s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing, Object Counting (Line), Object Counting (Area) AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection
Yes

Compression

Resolution
4MP/ 3MP / 2MP / 1MP / D1 / VGA / CIF
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP(2592×1520) / 2K (2560×1440) / 3MP / 2MP / 1MP Substream: 1MP/D1/VGA/640×360/480×240/CIF Third Stream: 1MP/D1/480×240/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (96°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
60.69m(199.11ft)
Recognize
12.14m(39.82ft)
Identify
6.07m(19.91ft)

Network

User Access
Supports simultaneous monitoring of up to 8 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P, HTTP POST, Auto Report
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input + Audio output
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
Technician Port

Housing

PoE
Yes
Illumination
20m (1 High-Power IR LED)
Power Supply
DC12V/~450mA / PoE/~7W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø97mm×82.6mm
Weight (gross)
~540g
Hard Reset Button
Yes


Documents

DI-340IPEN-28-G-V4 Datasheet
v5.x 320IPEN 340IPEN FL Series Manual

Software:

Register for Member Pricing

Latest CMS Version

Latest CMS for MAC

Latest IP Tool

4MP Dome/Turret Camera with IR LED and Advanced DDA2 Analytics

Register for Member Pricing

Optimized for short-distance surveillance, the DI-340IPEN-28-V4 camera features a high-resolution 4MP sensor and a 2.8mm fixed lens, delivering clear and reliable monitoring up to 20 meters in both indoor and outdoor settings.

With Dual System technology, the camera autonomously manages internal anomalies, minimizing software-related issues and ensuring uninterrupted operation.

Equipped with DDA Analytics (Detect, Distinguish, Alert) and the advanced DDA2 system, this model offers precise object recognition, counting, and attribute analysis, identifying details such as age, color, gender, and vehicle brand to significantly reduce false alarms.

Register for Member Pricing

For robust security, the Check Point Quantum IoT Nano Agent is integrated, providing advanced threat prevention against common attack vectors, reinforcing cybersecurity at runtime.

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

DI-340IPEN-28-G-features

DI-340IPEN-28-G Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS
Effective Pixels
2592×1520
Electronic Shutter
1/2s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing, Object Counting (Line), Object Counting (Area) AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection
Yes

Compression

Resolution
4MP/ 3MP / 2MP / 1MP / D1 / VGA / CIF
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP(2592×1520) / 2K (2560×1440) / 3MP / 2MP / 1MP Substream: 1MP/D1/VGA/640×360/480×240/CIF Third Stream: 1MP/D1/480×240/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (96°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
60.69m(199.11ft)
Recognize
12.14m(39.82ft)
Identify
6.07m(19.91ft)

Network

User Access
Supports simultaneous monitoring of up to 8 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P, HTTP POST, Auto Report
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input + Audio output
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
Technician Port

Housing

PoE
Yes
Illumination
20m (1 High-Power IR LED)
Power Supply
DC12V/~450mA / PoE/~7W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø97mm×82.6mm
Weight (gross)
~540g
Hard Reset Button
Yes


DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
DI-340IPEN-28-G

Detect (25px/m)
59m

Observe (63px/m)
23m

Recognise (125px/m)
11.8m

Identify (250px/m)
5.9m

Register for Member Pricing

For more information on selecting a CCTV camera please see this post:  Choosing the right CCTV camera for your application.
