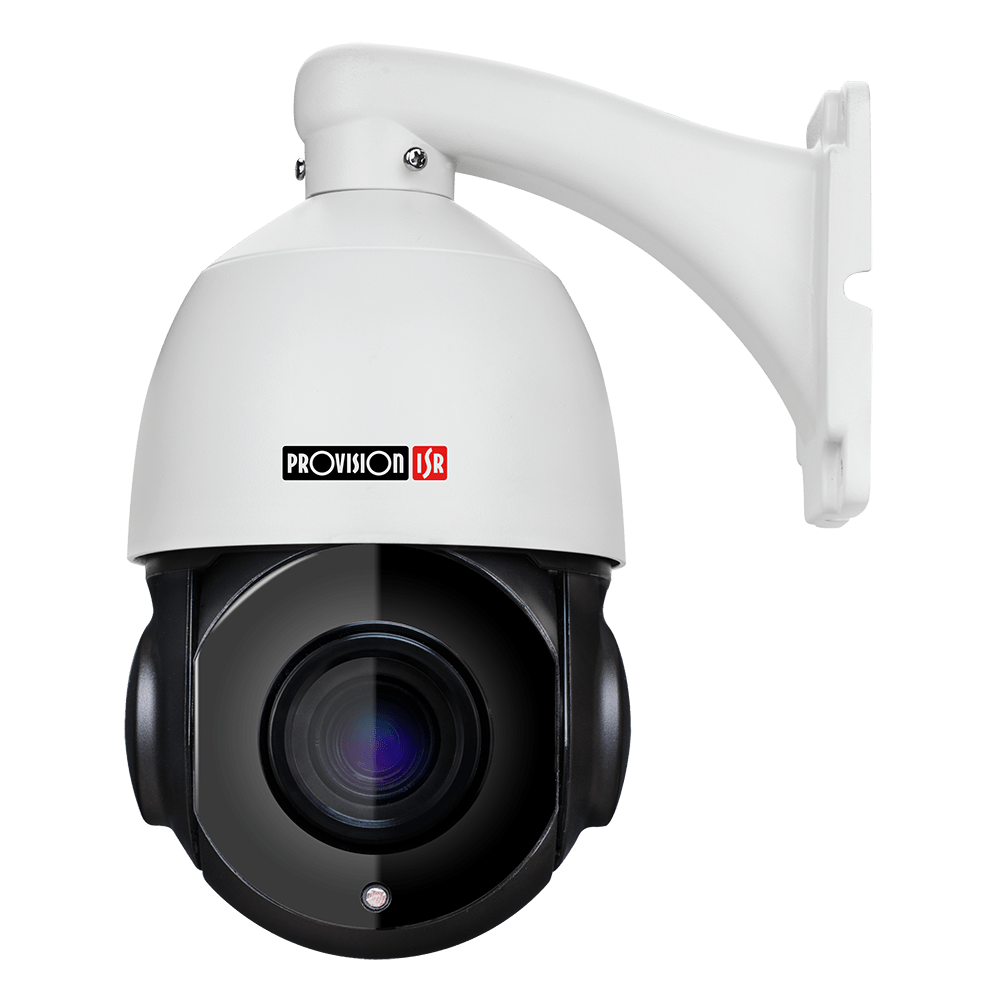

80m IR 2MP Mini PTZ Camera - MZ-20IPM-2(IR)
80m IR 2MP Mini PTZ Camera - MZ-20IPM-2(IR)
80m IR 2MP Mini PTZ Camera - MZ-20IPM-2(IR)
80m IR 2MP X20 Zoom, Mini PTZ Camera - MZ-20IPM-2(IR) - Image 4

80m IR 2MP X20 Zoom, Mini PTZ Camera – MZ-20IPM-2(IR)

Login, Register, or Call for Price

80m IR 2MP Mini PTZ Camera 1080P IP Camera • 1/2.8″ CMOS Sensor • X20 Zoom
SKU: MZ-20IPM-2(IR) Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

80M IR 2MP MINI PTZ CAMERA

The MZ-20IPM-20 (IR) is a small but powerful PTZ camera.

Equipped with fast and accurate 120°/s motors and 80m IR distance it is a perfect solution when camera mobility is required without attracting much attention.

Israeli made, professional, high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

MZ-20IPM-2(IR)-features

MZ-20IPM-2(IR) Features

Video

Image Sensor
1/2.8″ CMOS
Effective Pixels
1920×1080
Sync System
Progressive Scan
Electronic Shutter
1/25~1/30,000s
Day & Night
ICR (Auto/Day/Night)
Min. Illumination
0.05 Lux (Color), 0.01 Lux (B&W), 0 Lux (IR On)

NDAA Compliant

NDAA Compliant
No

Lens

Optical Zoom
X20
Digital Zoom
No
Focus
Auto/Manual
Minimum Focus Distance
1CM~1.5M
Horizontal Field of View
56°(wide) ~ 3.86°(tele)

AI Features

Analytics
No
Smart Tracking
No
Face Recognition
No
Face Database
No

PTZ Features

Pan Range
360° (Endless)
Pan Speed
Manual: 0.01°/s – 90°/s
Tilt Range
0°~180°
Tilt Speed
Manual: 0.01°/s – 22.5 °/s
Presets
256
Patterns
1
Cruise
1 cruise (32 Presets/cruise)
Scan
Standard (with left and right boundary)
Park Action
Yes (Preset)
Power Up Action
No
Schedule
Yes
3D Control
No

Image Enhancement

Image Settings
AWB Adjustable Exposure Mode Sharpness, Saturation, Brightness & Contrast Adjustable Auto Gain Adjustable
WDR Range
DWDR
BLC-HLC
Yes
3D-DNR Noise Reduction
3D-DNR
EIS
N/A
Defog
No
Image Orientation
Mirror/Flip
Dynamic Privacy Zone
No
Privacy Zone
No
Motion Detection
Yes

Audio

Audio Compression
No
Communication
No

Housing

IR Distance
80m
Smart IR
No
Network
RJ45
Analog Video Output
No
Audio Input
No
Audio Output
No
SD Card
No
RS-485
No
Alarm In
No
Alarm Out
No
Power Consumption
Max 20W (With IR)
Power Supply
DC12v/3A
Work Environment
-20?~50?, 10%~90% Humidity
Protection Rate
IP66
Fan & Heater
No
Dimensions
? 218mm × 136mm
Weight (Gross)
~2.6Kg

Network

Interface
1 RJ45 10M/100M
User Access
Supports simultaneous monitoring for up to 4 users with multi-stream real time transmission
Network Protocols
TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, UPnP
ONVIF
Yes
Remote Monitoring
IE Browsing, Ossia VMS

Compression

Video Compression
H.264/H.265
Resolutions and Streams
Main stream:1920×1080 (1080P) 1280X960 (960P) 1280X720 (720P) Sub stream?704×576 (D1) 640X480 (VGA) 352X288 (CIF)
FPS
1-25/30FPS
Bit-Rate
64Kbps ~ 8Mbps
Encode Mode
VBR/CBR
Image Quality
Six levels under VBR; Free adjustment under CBR
Register for Member Pricing

Documents

MZ-20IPM-2(IR)

MZ-20IPM-2(IR) User Manual

Register for Member Pricing

Software:

Latest CMS Version

Latest CMS for MAC

Register for Member Pricing

Latest IP Tool

80M IR 2MP MINI PTZ CAMERA

The MZ-20IPM-20 (IR) is a small but powerful PTZ camera.

Equipped with fast and accurate 120°/s motors and 80m IR distance it is a perfect solution when camera mobility is required without attracting much attention.

Register for Member Pricing

Israeli made, professional, high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

MZ-20IPM-2(IR)-features

MZ-20IPM-2(IR) Features

Video

Image Sensor
1/2.8″ CMOS
Effective Pixels
1920×1080
Sync System
Progressive Scan
Electronic Shutter
1/25~1/30,000s
Day & Night
ICR (Auto/Day/Night)
Min. Illumination
0.05 Lux (Color), 0.01 Lux (B&W), 0 Lux (IR On)

NDAA Compliant

NDAA Compliant
No

Lens

Optical Zoom
X20
Digital Zoom
No
Focus
Auto/Manual
Minimum Focus Distance
1CM~1.5M
Horizontal Field of View
56°(wide) ~ 3.86°(tele)

AI Features

Analytics
No
Smart Tracking
No
Face Recognition
No
Face Database
No

PTZ Features

Pan Range
360° (Endless)
Pan Speed
Manual: 0.01°/s – 90°/s
Tilt Range
0°~180°
Tilt Speed
Manual: 0.01°/s – 22.5 °/s
Presets
256
Patterns
1
Cruise
1 cruise (32 Presets/cruise)
Scan
Standard (with left and right boundary)
Park Action
Yes (Preset)
Power Up Action
No
Schedule
Yes
3D Control
No

Image Enhancement

Image Settings
AWB Adjustable Exposure Mode Sharpness, Saturation, Brightness & Contrast Adjustable Auto Gain Adjustable
WDR Range
DWDR
BLC-HLC
Yes
3D-DNR Noise Reduction
3D-DNR
EIS
N/A
Defog
No
Image Orientation
Mirror/Flip
Dynamic Privacy Zone
No
Privacy Zone
No
Motion Detection
Yes

Audio

Audio Compression
No
Communication
No

Housing

IR Distance
80m
Smart IR
No
Network
RJ45
Analog Video Output
No
Audio Input
No
Audio Output
No
SD Card
No
RS-485
No
Alarm In
No
Alarm Out
No
Power Consumption
Max 20W (With IR)
Power Supply
DC12v/3A
Work Environment
-20?~50?, 10%~90% Humidity
Protection Rate
IP66
Fan & Heater
No
Dimensions
? 218mm × 136mm
Weight (Gross)
~2.6Kg

Network

Interface
1 RJ45 10M/100M
User Access
Supports simultaneous monitoring for up to 4 users with multi-stream real time transmission
Network Protocols
TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, UPnP
ONVIF
Yes
Remote Monitoring
IE Browsing, Ossia VMS

Compression

Video Compression
H.264/H.265
Resolutions and Streams
Main stream:1920×1080 (1080P) 1280X960 (960P) 1280X720 (720P) Sub stream?704×576 (D1) 640X480 (VGA) 352X288 (CIF)
FPS
1-25/30FPS
Bit-Rate
64Kbps ~ 8Mbps
Encode Mode
VBR/CBR
Image Quality
Six levels under VBR; Free adjustment under CBR

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
MZ-20IPM-2(IR)

Detect (25px/m)
78.5m (Wide)
1100m (Tele)

Observe (63px/m)
31m (Wide)
450m (Tele)

Recognise (125px/m)
15.7m (Wide)
220m (Tele)

Identify (250px/m)
7.8m (Wide)
113m (Tele)

Register for Member Pricing

Note: Wide is for minimum zoom and Tele is for Maximum Zoom

For more information on selecting a CCTV camera please see this post:

Choosing the right CCTV camera for your application.

80M IR 2MP MINI PTZ CAMERA

Register for Member Pricing

The MZ-20IPM-20 (IR) is a small but powerful PTZ camera.

Equipped with fast and accurate 120°/s motors and 80m IR distance it is a perfect solution when camera mobility is required without attracting much attention.

Israeli made, professional, high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

MZ-20IPM-2(IR)-features

MZ-20IPM-2(IR) Features

Video

Image Sensor
1/2.8″ CMOS
Effective Pixels
1920×1080
Sync System
Progressive Scan
Electronic Shutter
1/25~1/30,000s
Day & Night
ICR (Auto/Day/Night)
Min. Illumination
0.05 Lux (Color), 0.01 Lux (B&W), 0 Lux (IR On)

NDAA Compliant

NDAA Compliant
No

Lens

Optical Zoom
X20
Digital Zoom
No
Focus
Auto/Manual
Minimum Focus Distance
1CM~1.5M
Horizontal Field of View
56°(wide) ~ 3.86°(tele)

AI Features

Analytics
No
Smart Tracking
No
Face Recognition
No
Face Database
No

PTZ Features

Pan Range
360° (Endless)
Pan Speed
Manual: 0.01°/s – 90°/s
Tilt Range
0°~180°
Tilt Speed
Manual: 0.01°/s – 22.5 °/s
Presets
256
Patterns
1
Cruise
1 cruise (32 Presets/cruise)
Scan
Standard (with left and right boundary)
Park Action
Yes (Preset)
Power Up Action
No
Schedule
Yes
3D Control
No

Image Enhancement

Image Settings
AWB Adjustable Exposure Mode Sharpness, Saturation, Brightness & Contrast Adjustable Auto Gain Adjustable
WDR Range
DWDR
BLC-HLC
Yes
3D-DNR Noise Reduction
3D-DNR
EIS
N/A
Defog
No
Image Orientation
Mirror/Flip
Dynamic Privacy Zone
No
Privacy Zone
No
Motion Detection
Yes

Audio

Audio Compression
No
Communication
No

Housing

IR Distance
80m
Smart IR
No
Network
RJ45
Analog Video Output
No
Audio Input
No
Audio Output
No
SD Card
No
RS-485
No
Alarm In
No
Alarm Out
No
Power Consumption
Max 20W (With IR)
Power Supply
DC12v/3A
Work Environment
-20?~50?, 10%~90% Humidity
Protection Rate
IP66
Fan & Heater
No
Dimensions
? 218mm × 136mm
Weight (Gross)
~2.6Kg

Network

Interface
1 RJ45 10M/100M
User Access
Supports simultaneous monitoring for up to 4 users with multi-stream real time transmission
Network Protocols
TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, UPnP
ONVIF
Yes
Remote Monitoring
IE Browsing, Ossia VMS

Compression

Video Compression
H.264/H.265
Resolutions and Streams
Main stream:1920×1080 (1080P) 1280X960 (960P) 1280X720 (720P) Sub stream?704×576 (D1) 640X480 (VGA) 352X288 (CIF)
FPS
1-25/30FPS
Bit-Rate
64Kbps ~ 8Mbps
Encode Mode
VBR/CBR
Image Quality
Six levels under VBR; Free adjustment under CBR
Register for Member Pricing

Please ask your product question below:

80M IR 2MP MINI PTZ CAMERA

The MZ-20IPM-20 (IR) is a small but powerful PTZ camera.

Equipped with fast and accurate 120°/s motors and 80m IR distance it is a perfect solution when camera mobility is required without attracting much attention.

Register for Member Pricing

Israeli made, professional, high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

MZ-20IPM-2(IR)-features

MZ-20IPM-2(IR) Features

Video

Image Sensor
1/2.8″ CMOS
Effective Pixels
1920×1080
Sync System
Progressive Scan
Electronic Shutter
1/25~1/30,000s
Day & Night
ICR (Auto/Day/Night)
Min. Illumination
0.05 Lux (Color), 0.01 Lux (B&W), 0 Lux (IR On)

NDAA Compliant

NDAA Compliant
No

Lens

Optical Zoom
X20
Digital Zoom
No
Focus
Auto/Manual
Minimum Focus Distance
1CM~1.5M
Horizontal Field of View
56°(wide) ~ 3.86°(tele)

AI Features

Analytics
No
Smart Tracking
No
Face Recognition
No
Face Database
No

PTZ Features

Pan Range
360° (Endless)
Pan Speed
Manual: 0.01°/s – 90°/s
Tilt Range
0°~180°
Tilt Speed
Manual: 0.01°/s – 22.5 °/s
Presets
256
Patterns
1
Cruise
1 cruise (32 Presets/cruise)
Scan
Standard (with left and right boundary)
Park Action
Yes (Preset)
Power Up Action
No
Schedule
Yes
3D Control
No

Image Enhancement

Image Settings
AWB Adjustable Exposure Mode Sharpness, Saturation, Brightness & Contrast Adjustable Auto Gain Adjustable
WDR Range
DWDR
BLC-HLC
Yes
3D-DNR Noise Reduction
3D-DNR
EIS
N/A
Defog
No
Image Orientation
Mirror/Flip
Dynamic Privacy Zone
No
Privacy Zone
No
Motion Detection
Yes

Audio

Audio Compression
No
Communication
No

Housing

IR Distance
80m
Smart IR
No
Network
RJ45
Analog Video Output
No
Audio Input
No
Audio Output
No
SD Card
No
RS-485
No
Alarm In
No
Alarm Out
No
Power Consumption
Max 20W (With IR)
Power Supply
DC12v/3A
Work Environment
-20?~50?, 10%~90% Humidity
Protection Rate
IP66
Fan & Heater
No
Dimensions
? 218mm × 136mm
Weight (Gross)
~2.6Kg

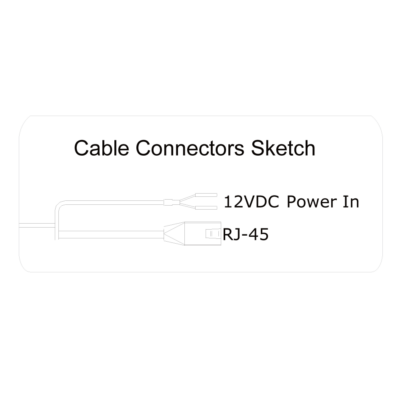

Network

Interface
1 RJ45 10M/100M
User Access
Supports simultaneous monitoring for up to 4 users with multi-stream real time transmission
Network Protocols
TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, UPnP
ONVIF
Yes
Remote Monitoring
IE Browsing, Ossia VMS

Compression

Video Compression
H.264/H.265
Resolutions and Streams
Main stream:1920×1080 (1080P) 1280X960 (960P) 1280X720 (720P) Sub stream?704×576 (D1) 640X480 (VGA) 352X288 (CIF)
FPS
1-25/30FPS
Bit-Rate
64Kbps ~ 8Mbps
Encode Mode
VBR/CBR
Image Quality
Six levels under VBR; Free adjustment under CBR

Related products

×






Price match available for Australian web sites only. Price match is not for refurbished items or grey imports. We will match pricing where possible and reserve the right to decline where we would incur a cost
