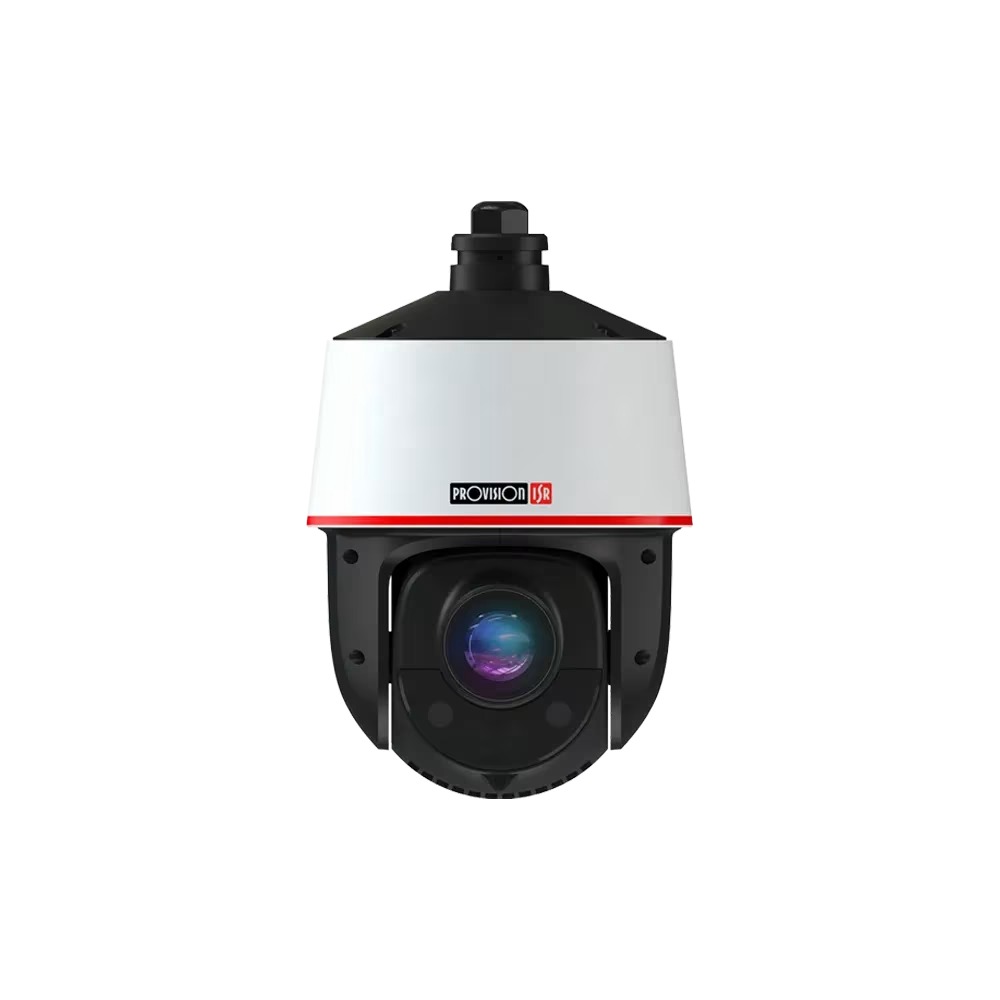

150m IR 2MP PTZ Camera X25 – Z4-25IPEN-2(IR)
Login, Register, or Call for Price
Description
4″ 2MP x25 Zoom Mini IP PTZ Camera with DDA Analytics, PoE+, and NDAA Compliance
The Z4-25IPEN-2(IR) is a compact 4-inch AI PTZ camera, delivering 2MP resolution and a 25x optical zoom in a discreet, sleek form factor. Designed for flexible installations, it includes a wall bracket and supports additional mounting options including in-ceiling setups.
With standard motor speed, PoE+ support, and basic connectivity options, this model is fully compatible with Provision-ISR platforms, including Ossia NVRs, Ossia VMS, and the Provision Cam2 Mobile App. Embedded DDA Analytics (Detect, Distinguish, Alert) provide intelligent human and vehicle detection, while NDAA compliance ensures confidence in secure environments
Overview:
Israeli made, professional, high quality security cameras for professional installations. Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.
Z4-25IPEN-2(IR) Features
Video
1/2.8? CMOS
1920×1080
Progressive Scan
1/25~1/100,000s
ICR (Auto/Day/Night)
Color?0.00125Lux@(F1.65, AGC on), B/W: 0.00025Lux@(F1.65, AGC on), 0Lux with IR
NDAA Compliant
Lens
x25
x16
4.8mm (F1.65) – 120mm (F3.8)
F1.65 ~ F3.8
Auto/Manual
1M~15M
55°(wide) ~ 2.4°(tele)
AI Features
Auto Tracking based on DDA (Human / Vehicle)
Up to 10000 faces
PTZ Features
Manual: 0.1~80°/s; Preset speed: 80°/s
Manual: 0.1~80°/s; Preset speed: 80°/s
300
4 Tracks. Up to 3 minutes each
8 cruises (16 presets per cruise)
Standard / Random (with left and right boundaries)
Up to 8 tasks (Preset/Cruise/Pattern/Auto Scan/Random Scan)
Supported (via Provision-ISR Devices)
Image Enhancement
AWB Adjustable Exposure Mode Sharpness, Saturation, Brightness & Contrast Adjustable Auto Gain Adjustable
True WDR (120dB)
N/A
Yes
Mirror/Flip
Yes
Audio
G.711A/G.711U
2-Way Audio
Housing
Yes
RJ45
No
1Ch
1Ch
Yes (microSD/SDHC/SDXC. Up to 256GB)
No
Max 22W (With IR, Heater and Fan working)
PoE+ (802.3at) / DC12V/~480mA (not included)
-30?~50?, 10%~90% Humidity (Cold start at – 20°C)
IP66
Yes
? 173mm × 268mm
~2.1Kg
Network
1 RJ45 10M/100M Adaptive Ethernet (Support PoE 802.3.at)
Supports simultaneous monitoring of up to 6 users with multi-stream real-time transmission
HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, P2P, UDP, IGMP, ICMP,DHCP, PPPoE, HTTP POST
IE Browsing (Plug-in required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Compression
H.264/H.265/H264+/H265+/MJPEG
Mainstream: 1920×1080 (2MP), 1280×720 (720P) Substream: 1280×720 (720P), 704×576 (D1), 352×288 (CIF) Third stream: 704×576 (D1), 480×240, 352×288 (CIF)
1-25/30FPS
768Kbps ~ 4096Kbps@H.265 / 1024Kbps ~ 6144Kbps@H.264
VBR/CBR
Five levels under VBR; Free adjustment under CBR
DORI Distance
(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Note: Wide is for minimum zoom and Tele is for Maximum Zoom
For more information on selecting a CCTV camera please see this post:
Choosing the right CCTV camera for your application.
4″ 2MP x25 Zoom Mini IP PTZ Camera with DDA Analytics, PoE+, and NDAA Compliance
The Z4-25IPEN-2(IR) is a compact 4-inch AI PTZ camera, delivering 2MP resolution and a 25x optical zoom in a discreet, sleek form factor. Designed for flexible installations, it includes a wall bracket and supports additional mounting options including in-ceiling setups.
With standard motor speed, PoE+ support, and basic connectivity options, this model is fully compatible with Provision-ISR platforms, including Ossia NVRs, Ossia VMS, and the Provision Cam2 Mobile App. Embedded DDA Analytics (Detect, Distinguish, Alert) provide intelligent human and vehicle detection, while NDAA compliance ensures confidence in secure environments
Overview:
Israeli made, professional, high quality security cameras for professional installations. Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.
Z4-25IPEN-2(IR) Features
Video
1/2.8? CMOS
1920×1080
Progressive Scan
1/25~1/100,000s
ICR (Auto/Day/Night)
Color?0.00125Lux@(F1.65, AGC on), B/W: 0.00025Lux@(F1.65, AGC on), 0Lux with IR
NDAA Compliant
Lens
x25
x16
4.8mm (F1.65) – 120mm (F3.8)
F1.65 ~ F3.8
Auto/Manual
1M~15M
55°(wide) ~ 2.4°(tele)
AI Features
Auto Tracking based on DDA (Human / Vehicle)
Up to 10000 faces
PTZ Features
Manual: 0.1~80°/s; Preset speed: 80°/s
Manual: 0.1~80°/s; Preset speed: 80°/s
300
4 Tracks. Up to 3 minutes each
8 cruises (16 presets per cruise)
Standard / Random (with left and right boundaries)
Up to 8 tasks (Preset/Cruise/Pattern/Auto Scan/Random Scan)
Supported (via Provision-ISR Devices)
Image Enhancement
AWB Adjustable Exposure Mode Sharpness, Saturation, Brightness & Contrast Adjustable Auto Gain Adjustable
True WDR (120dB)
N/A
Yes
Mirror/Flip
Yes
Audio
G.711A/G.711U
2-Way Audio
Housing
Yes
RJ45
No
1Ch
1Ch
Yes (microSD/SDHC/SDXC. Up to 256GB)
No
Max 22W (With IR, Heater and Fan working)
PoE+ (802.3at) / DC12V/~480mA (not included)
-30?~50?, 10%~90% Humidity (Cold start at – 20°C)
IP66
Yes
? 173mm × 268mm
~2.1Kg
Network
1 RJ45 10M/100M Adaptive Ethernet (Support PoE 802.3.at)
Supports simultaneous monitoring of up to 6 users with multi-stream real-time transmission
HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, P2P, UDP, IGMP, ICMP,DHCP, PPPoE, HTTP POST
IE Browsing (Plug-in required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Compression
H.264/H.265/H264+/H265+/MJPEG
Mainstream: 1920×1080 (2MP), 1280×720 (720P) Substream: 1280×720 (720P), 704×576 (D1), 352×288 (CIF) Third stream: 704×576 (D1), 480×240, 352×288 (CIF)
1-25/30FPS
768Kbps ~ 4096Kbps@H.265 / 1024Kbps ~ 6144Kbps@H.264
VBR/CBR
Five levels under VBR; Free adjustment under CBR
Documents
Z4-25IPEN-2(IR) Datasheet
Z# PTZ Series English User Manual
Software:
Ossia Video Player
Latest VMS Version
IP Tool Archive
4″ 2MP x25 Zoom Mini IP PTZ Camera with DDA Analytics, PoE+, and NDAA Compliance
The Z4-25IPEN-2(IR) is a compact 4-inch AI PTZ camera, delivering 2MP resolution and a 25x optical zoom in a discreet, sleek form factor. Designed for flexible installations, it includes a wall bracket and supports additional mounting options including in-ceiling setups.
With standard motor speed, PoE+ support, and basic connectivity options, this model is fully compatible with Provision-ISR platforms, including Ossia NVRs, Ossia VMS, and the Provision Cam2 Mobile App. Embedded DDA Analytics (Detect, Distinguish, Alert) provide intelligent human and vehicle detection, while NDAA compliance ensures confidence in secure environments
Overview:
Israeli made, professional, high quality security cameras for professional installations. Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.
Z4-25IPEN-2(IR) Features
Video
1/2.8? CMOS
1920×1080
Progressive Scan
1/25~1/100,000s
ICR (Auto/Day/Night)
Color?0.00125Lux@(F1.65, AGC on), B/W: 0.00025Lux@(F1.65, AGC on), 0Lux with IR
NDAA Compliant
Lens
x25
x16
4.8mm (F1.65) – 120mm (F3.8)
F1.65 ~ F3.8
Auto/Manual
1M~15M
55°(wide) ~ 2.4°(tele)
AI Features
Auto Tracking based on DDA (Human / Vehicle)
Up to 10000 faces
PTZ Features
Manual: 0.1~80°/s; Preset speed: 80°/s
Manual: 0.1~80°/s; Preset speed: 80°/s
300
4 Tracks. Up to 3 minutes each
8 cruises (16 presets per cruise)
Standard / Random (with left and right boundaries)
Up to 8 tasks (Preset/Cruise/Pattern/Auto Scan/Random Scan)
Supported (via Provision-ISR Devices)
Image Enhancement
AWB Adjustable Exposure Mode Sharpness, Saturation, Brightness & Contrast Adjustable Auto Gain Adjustable
True WDR (120dB)
N/A
Yes
Mirror/Flip
Yes
Audio
G.711A/G.711U
2-Way Audio
Housing
Yes
RJ45
No
1Ch
1Ch
Yes (microSD/SDHC/SDXC. Up to 256GB)
No
Max 22W (With IR, Heater and Fan working)
PoE+ (802.3at) / DC12V/~480mA (not included)
-30?~50?, 10%~90% Humidity (Cold start at – 20°C)
IP66
Yes
? 173mm × 268mm
~2.1Kg
Network
1 RJ45 10M/100M Adaptive Ethernet (Support PoE 802.3.at)
Supports simultaneous monitoring of up to 6 users with multi-stream real-time transmission
HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, P2P, UDP, IGMP, ICMP,DHCP, PPPoE, HTTP POST
IE Browsing (Plug-in required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Compression
H.264/H.265/H264+/H265+/MJPEG
Mainstream: 1920×1080 (2MP), 1280×720 (720P) Substream: 1280×720 (720P), 704×576 (D1), 352×288 (CIF) Third stream: 704×576 (D1), 480×240, 352×288 (CIF)
1-25/30FPS
768Kbps ~ 4096Kbps@H.265 / 1024Kbps ~ 6144Kbps@H.264
VBR/CBR
Five levels under VBR; Free adjustment under CBR
Please ask your product question below:
4″ 2MP x25 Zoom Mini IP PTZ Camera with DDA Analytics, PoE+, and NDAA Compliance
The Z4-25IPEN-2(IR) is a compact 4-inch AI PTZ camera, delivering 2MP resolution and a 25x optical zoom in a discreet, sleek form factor. Designed for flexible installations, it includes a wall bracket and supports additional mounting options including in-ceiling setups.
With standard motor speed, PoE+ support, and basic connectivity options, this model is fully compatible with Provision-ISR platforms, including Ossia NVRs, Ossia VMS, and the Provision Cam2 Mobile App. Embedded DDA Analytics (Detect, Distinguish, Alert) provide intelligent human and vehicle detection, while NDAA compliance ensures confidence in secure environments
Overview:
Israeli made, professional, high quality security cameras for professional installations. Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.
Z4-25IPEN-2(IR) Features
Video
1/2.8? CMOS
1920×1080
Progressive Scan
1/25~1/100,000s
ICR (Auto/Day/Night)
Color?0.00125Lux@(F1.65, AGC on), B/W: 0.00025Lux@(F1.65, AGC on), 0Lux with IR
NDAA Compliant
Lens
x25
x16
4.8mm (F1.65) – 120mm (F3.8)
F1.65 ~ F3.8
Auto/Manual
1M~15M
55°(wide) ~ 2.4°(tele)
AI Features
Auto Tracking based on DDA (Human / Vehicle)
Up to 10000 faces
PTZ Features
Manual: 0.1~80°/s; Preset speed: 80°/s
Manual: 0.1~80°/s; Preset speed: 80°/s
300
4 Tracks. Up to 3 minutes each
8 cruises (16 presets per cruise)
Standard / Random (with left and right boundaries)
Up to 8 tasks (Preset/Cruise/Pattern/Auto Scan/Random Scan)
Supported (via Provision-ISR Devices)
Image Enhancement
AWB Adjustable Exposure Mode Sharpness, Saturation, Brightness & Contrast Adjustable Auto Gain Adjustable
True WDR (120dB)
N/A
Yes
Mirror/Flip
Yes
Audio
G.711A/G.711U
2-Way Audio
Housing
Yes
RJ45
No
1Ch
1Ch
Yes (microSD/SDHC/SDXC. Up to 256GB)
No
Max 22W (With IR, Heater and Fan working)
PoE+ (802.3at) / DC12V/~480mA (not included)
-30?~50?, 10%~90% Humidity (Cold start at – 20°C)
IP66
Yes
? 173mm × 268mm
~2.1Kg
Network
1 RJ45 10M/100M Adaptive Ethernet (Support PoE 802.3.at)
Supports simultaneous monitoring of up to 6 users with multi-stream real-time transmission
HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, P2P, UDP, IGMP, ICMP,DHCP, PPPoE, HTTP POST
IE Browsing (Plug-in required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Compression
H.264/H.265/H264+/H265+/MJPEG
Mainstream: 1920×1080 (2MP), 1280×720 (720P) Substream: 1280×720 (720P), 704×576 (D1), 352×288 (CIF) Third stream: 704×576 (D1), 480×240, 352×288 (CIF)
1-25/30FPS
768Kbps ~ 4096Kbps@H.265 / 1024Kbps ~ 6144Kbps@H.264
VBR/CBR
Five levels under VBR; Free adjustment under CBR
Related products

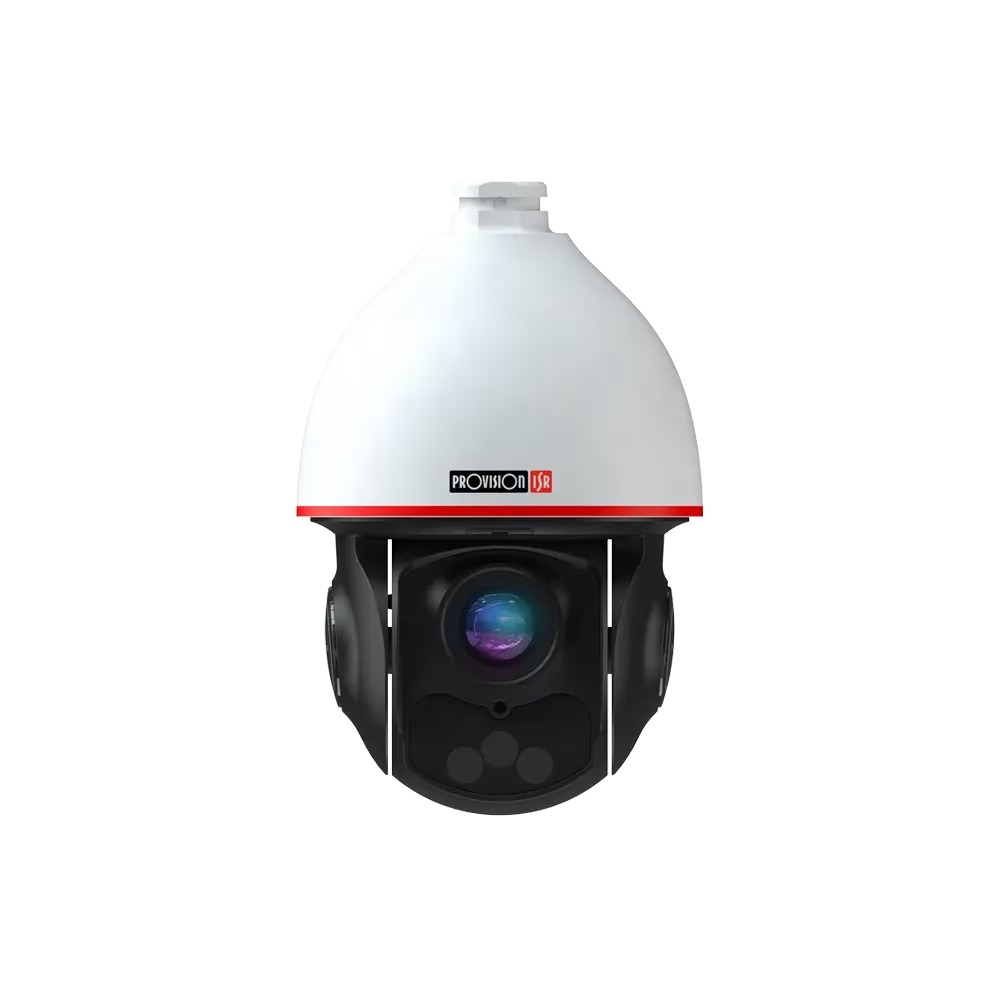

150m IR 2MP PTZ Camera X25 – Z5-25IPE-2(IR)
