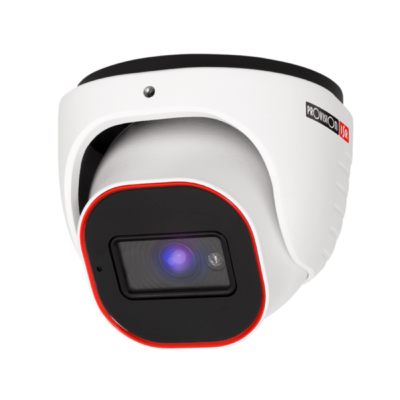

20M IR 2MP Fixed Lens Dome - DI-320IPSN-28
20M IR 4MP Fixed Lens Dome - DI-340IPSN-28-V2 - Image 2
20M IR 4MP Fixed Lens Dome - DI-340IPSN-28-V2 - Image 3

20M IR 4MP Fixed Lens Dome – DI-340IPSN-28-V2

Login, Register, or Call for Price

EOL, replaced by DH-340IPSN-28
4MP IP Camera • S-Sight v2 Series • Real-Time • 1/3″ CMOS • 2.8mm Fixed Lens
SKU: DI-340IPSN-28-V2 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

20m IR 4MP Fixed Lens Small Dome/Turret Camera

EOL, replaced by DH-340IPSN-28

Equipped with a 2.8mm fixed lens, this 4MP Dome/Turret camera is designed for short-distance surveillance (up to 20m) in indoor and outdoor scenarios.

The camera offers outstanding DDA Analytics (Detect, Distinguish, Alert), which can perform human and vehicle recognition.

Register for Member Pricing

With its excellent performance, reliability, and affordable price, the DI-340IPSN-28-V2 camera is the perfect solution for any basic installation.

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

DI-340IPSN-28-V2-features

DI-340IPSN-28 Features

3rd Party Cyber Protection

General
N/A
Protection Methods
N/A

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
2560×1440
Electronic Shutter
1/2s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing
Motion Detection
Yes

Compression

Resolution
4MP (2560×1440) / 3MP (2304×1296) / 2MP (1920×1080) / D1 / QVGA /CIF
Frame Rate
1-25/30FPS
Video Compression
H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP (2560×1440) / 3MP (2304×1296) / 2MP (1~30fps) Substream: 1MP (1~12/15fps) /D1/CIF (1~30fps) Third Stream: D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 5Mbps@H.265 / 64Kbps ~ 5Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (102°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
61.76m(202.62ft)
Recognize
12.35m(40.51ft)
Identify
6.18m(20.27ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS
Remote Monitoring
IE Browsing (Plug-in required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256Gb)
Wiegand
No
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
20m (1 High-Power IR LED)
Power Supply
DC12V/~400mA / PoE/~5.2W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø97mm×82.6mm
Weight (gross)
~450g
Hard Reset Button
Yes
Register for Member Pricing

Documents

DI-340IPSN-28-V2 Datasheet

320IPS 340IPS 380IPS S-Series v2 NDAA Manual (All Models)

Register for Member Pricing

Software:

Latest CMS Version

Latest CMS for MAC

Register for Member Pricing

Latest IP Tool

20m IR 4MP Fixed Lens Small Dome/Turret Camera

EOL, replaced by DH-340IPSN-28

Equipped with a 2.8mm fixed lens, this 4MP Dome/Turret camera is designed for short-distance surveillance (up to 20m) in indoor and outdoor scenarios.

Register for Member Pricing

The camera offers outstanding DDA Analytics (Detect, Distinguish, Alert), which can perform human and vehicle recognition.

With its excellent performance, reliability, and affordable price, the DI-340IPSN-28-V2 camera is the perfect solution for any basic installation.

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

Register for Member Pricing

DI-340IPSN-28-V2-features

DI-340IPSN-28 Features

3rd Party Cyber Protection

General
N/A
Protection Methods
N/A

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
2560×1440
Electronic Shutter
1/2s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing
Motion Detection
Yes

Compression

Resolution
4MP (2560×1440) / 3MP (2304×1296) / 2MP (1920×1080) / D1 / QVGA /CIF
Frame Rate
1-25/30FPS
Video Compression
H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP (2560×1440) / 3MP (2304×1296) / 2MP (1~30fps) Substream: 1MP (1~12/15fps) /D1/CIF (1~30fps) Third Stream: D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 5Mbps@H.265 / 64Kbps ~ 5Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (102°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
61.76m(202.62ft)
Recognize
12.35m(40.51ft)
Identify
6.18m(20.27ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS
Remote Monitoring
IE Browsing (Plug-in required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256Gb)
Wiegand
No
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
20m (1 High-Power IR LED)
Power Supply
DC12V/~400mA / PoE/~5.2W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø97mm×82.6mm
Weight (gross)
~450g
Hard Reset Button
Yes

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
DI-340IPSN-28-V2

Detect (25px/m)
54m

Observe (63px/m)
21m

Recognise (125px/m)
10.8m

Identify (250px/m)
5.4m

Register for Member Pricing

For more information on selecting a CCTV camera please see this post:  Choosing the right CCTV camera for your application.
