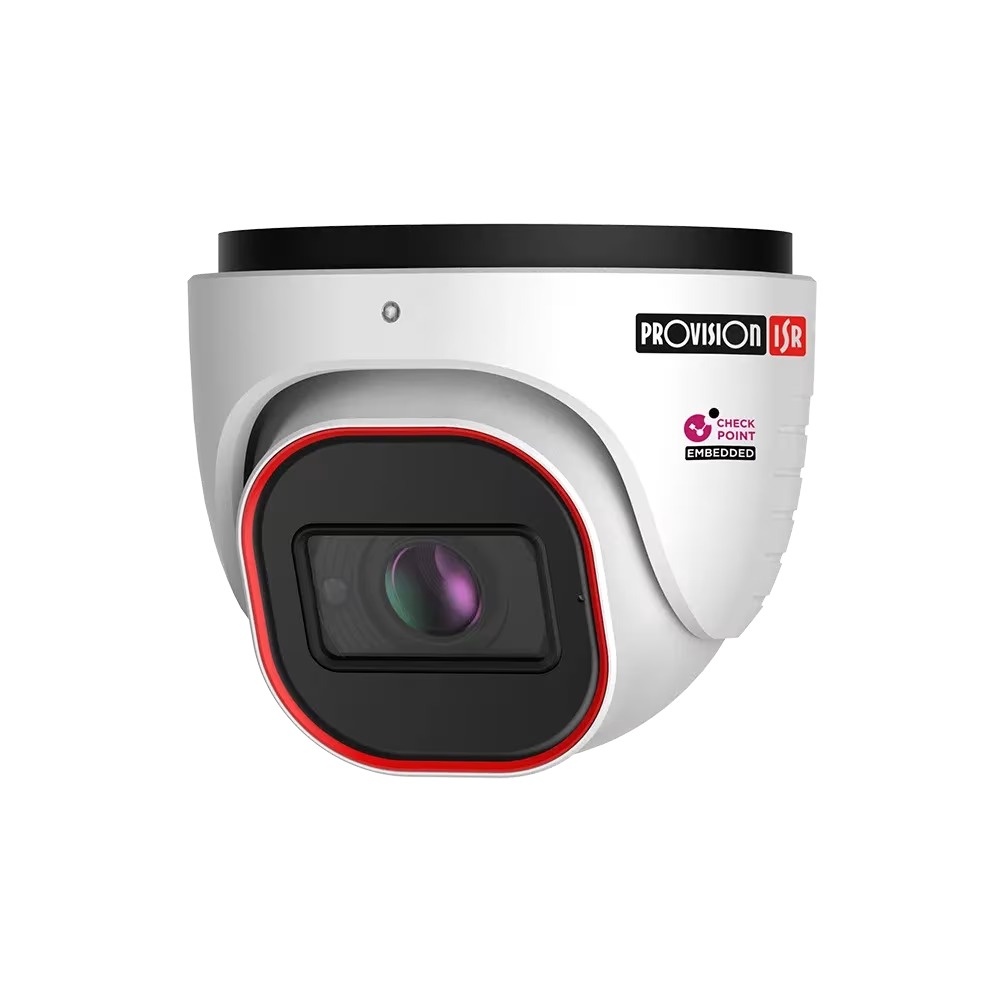

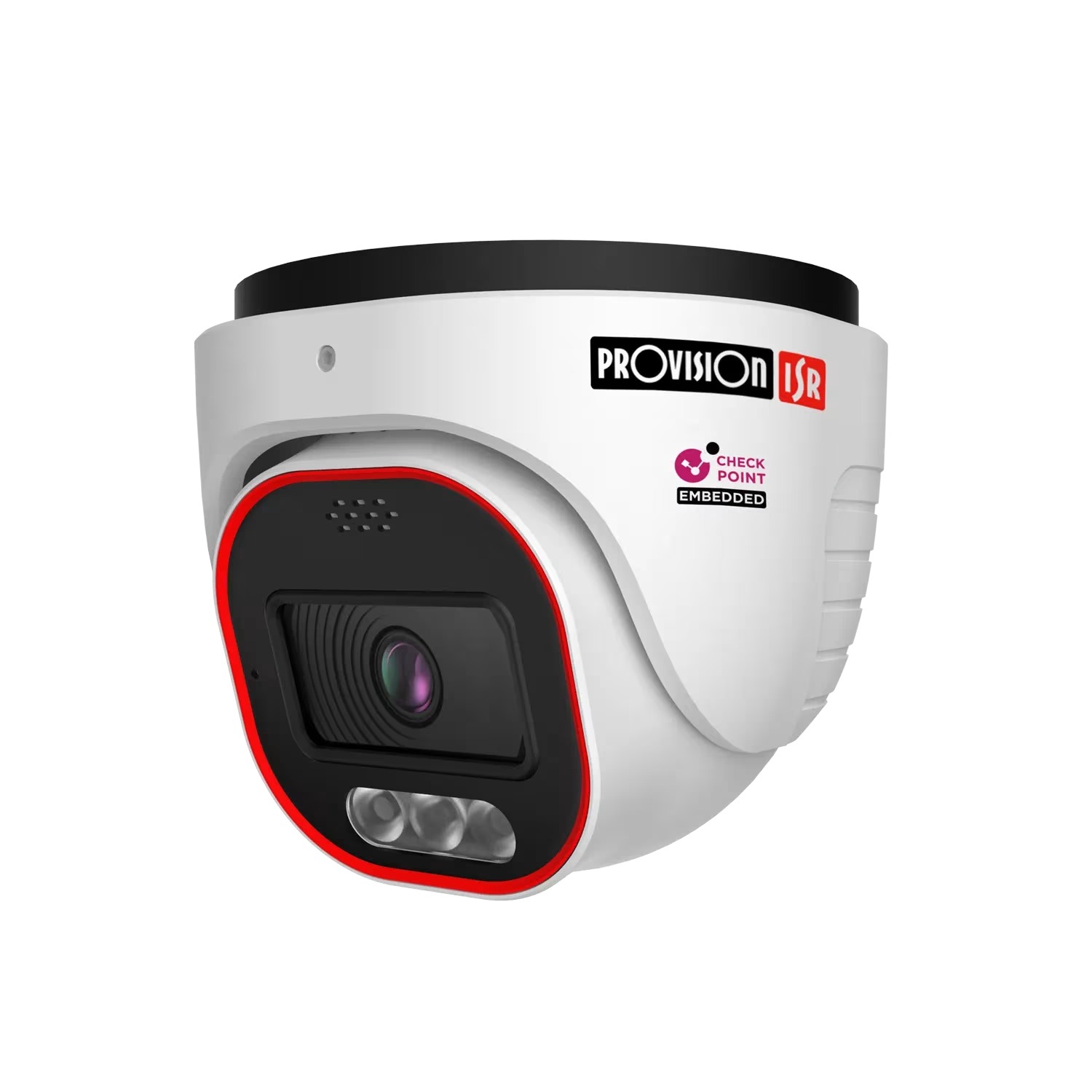

4MP Active Deterrence Fixed Lens Dome/Turret Camera with Hybrid LED
SKU: DH-340ADSN-28 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

4MP Active Deterrence Fixed Lens Dome/Turret Camera with Hybrid LED

Designed to deter unwanted visitors, this 4MP dome/turret camera features active deterrence technology, triggering visual and audio alerts upon detection. Equipped with a 2.8mm fixed lens, it provides short-range surveillance up to 30 meters, ensuring full-color imaging in dark environments with its hybrid LED capability. Advanced DDA Analytics (Detect, Distinguish, Alert) enables precise human and vehicle recognition, supporting various detection rules to reduce false alarms. Fully NDAA-compliant, it integrates Check Point Quantum IoT Nano security, delivering real-time cybersecurity protection against evolving threats. The DH-340ADSN-28 combines exceptional reliability, performance, and affordability, making it an ideal choice for efficient IP installations.

Register for Member Pricing

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

Register for Member Pricing

s-sight-4mp-active-d-features

DH-340ADSN-28

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
2560×1440
Electronic Shutter
1s ~ 1/100000s
Day & Night
ICR + 24/7 Full-Color Day Mode
Min. Illumination
0.005 lux @F1.6, AGC ON; 0 lux with illumination on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering, Item Monitoring Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
4MP (2560×1440) / 3MP (2304×1296) / 2MP (1920×1080) / 1MP (1280×720) / D1 / VGA / QVGA /CIF
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP (2560×1440) / 3MP (2304×1296) / 2MP / 1MP (1~30fps) Substream: 1MP/D1/VGA/CIF (1~30fps) Third Stream: D1/QVGA/CIF (1~30fps)
Bit Rate
64Kbps ~ 6Mbps
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (94°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
62m(203ft)
Recognize
12m(40ft)
Identify
6m(20ft)

Network

User Access
Supports simultaneous monitoring of up to 4 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile M/T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone and Speaker + Audio Input / Output
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
30m (1 High-Power IR LED) 30m (1 High-Power White LEDs) Red/Blue Strobe Lights
Power Supply
DC12V/~700mA / PoE/~10.5W
Protection Rate
Water Proof: IP66
Work Environment
-30°C~60°C, 10%~95% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø111.5 × 99.6mm
Weight (gross)
~720g
Hard Reset Button
Yes

Documents

DH-340ADSN-28 Datasheet

Active Deterrence Series User Manual

Register for Member Pricing

Software:

Ossia Video Player

Latest VMS Version

Register for Member Pricing

IP Tool Archive

4MP Active Deterrence Fixed Lens Dome/Turret Camera with Hybrid LED

Register for Member Pricing

Designed to deter unwanted visitors, this 4MP dome/turret camera features active deterrence technology, triggering visual and audio alerts upon detection. Equipped with a 2.8mm fixed lens, it provides short-range surveillance up to 30 meters, ensuring full-color imaging in dark environments with its hybrid LED capability. Advanced DDA Analytics (Detect, Distinguish, Alert) enables precise human and vehicle recognition, supporting various detection rules to reduce false alarms. Fully NDAA-compliant, it integrates Check Point Quantum IoT Nano security, delivering real-time cybersecurity protection against evolving threats. The DH-340ADSN-28 combines exceptional reliability, performance, and affordability, making it an ideal choice for efficient IP installations.

Register for Member Pricing

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

s-sight-4mp-active-d-features

DH-340ADSN-28

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
2560×1440
Electronic Shutter
1s ~ 1/100000s
Day & Night
ICR + 24/7 Full-Color Day Mode
Min. Illumination
0.005 lux @F1.6, AGC ON; 0 lux with illumination on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering, Item Monitoring Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
4MP (2560×1440) / 3MP (2304×1296) / 2MP (1920×1080) / 1MP (1280×720) / D1 / VGA / QVGA /CIF
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP (2560×1440) / 3MP (2304×1296) / 2MP / 1MP (1~30fps) Substream: 1MP/D1/VGA/CIF (1~30fps) Third Stream: D1/QVGA/CIF (1~30fps)
Bit Rate
64Kbps ~ 6Mbps
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (94°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
62m(203ft)
Recognize
12m(40ft)
Identify
6m(20ft)

Network

User Access
Supports simultaneous monitoring of up to 4 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile M/T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone and Speaker + Audio Input / Output
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
30m (1 High-Power IR LED) 30m (1 High-Power White LEDs) Red/Blue Strobe Lights
Power Supply
DC12V/~700mA / PoE/~10.5W
Protection Rate
Water Proof: IP66
Work Environment
-30°C~60°C, 10%~95% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø111.5 × 99.6mm
Weight (gross)
~720g
Hard Reset Button
Yes

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
DH-340ADSN-28

Detect (25px/m)
62m

Observe (63px/m)
25m

Recognise (125px/m)
12m

Identify (250px/m)
6m

Register for Member Pricing

For more information on selecting a CCTV camera please see this post:  Choosing the right CCTV camera for your application.
