Active Online Security » Shop » Products » IP CCTV » Provision-ISR IP CCTV » Provision-ISR NVR » 8CH 8MP NVR, NDAA, No PoE – NVR8-8200N-V2

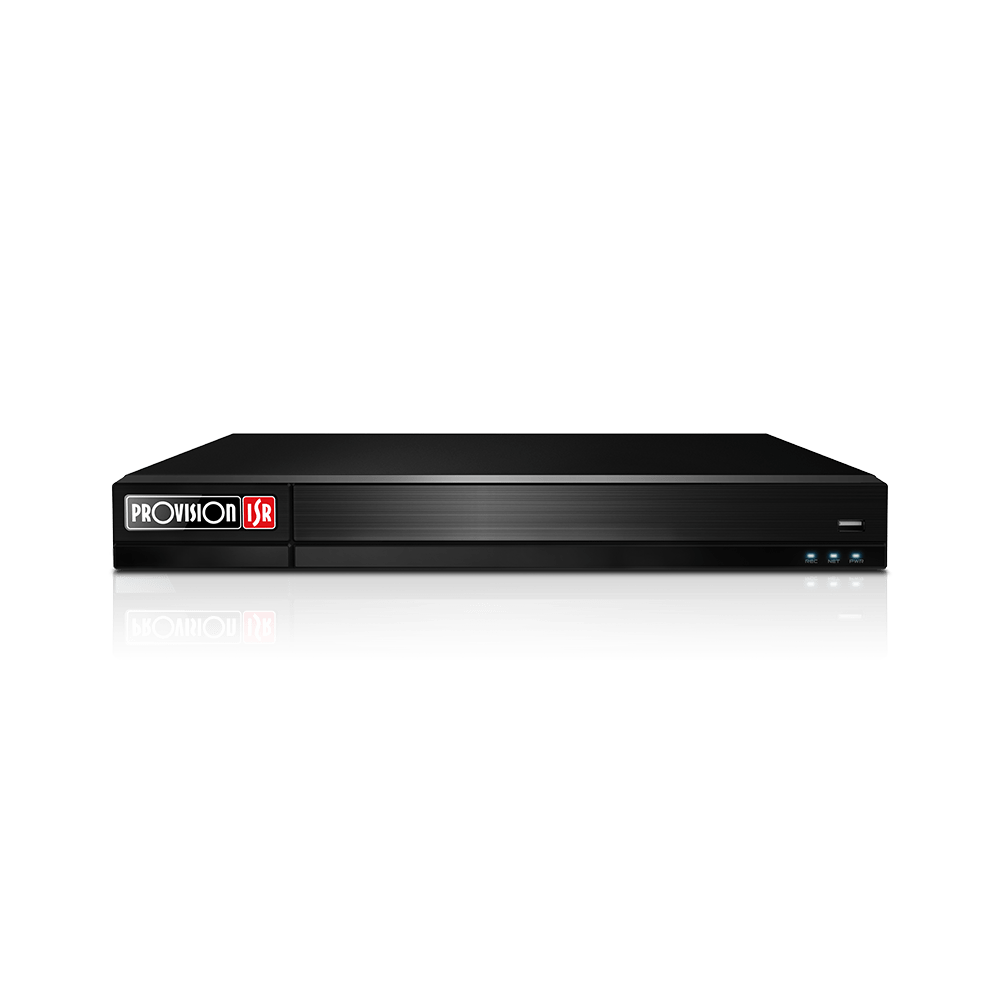

8CH 8MP NVR, NDAA, No PoE – NVR8-8200N-V2

Login, Register, or Call for Price

8MP 8CH NVR (no PoE) embedded with check point protection, and NDAA compliance Provision-ISR’s NVR8-8200PN-V2 offers a seamless solution tailored for mid-sized installations (up to 8 channels).

SKU: NVR8-8200N-V2 Category: Provision-ISR NVR

Free Shipping for orders over $600 (AU Only)*

Brand: Provision-ISR

Description

8MP 8CH NVR with Check Point Protection and NDAA Compliance

The NVR8-8200N-V2 from Provision-ISR is a reliable 8MP network video recorder, designed for mid-sized CCTV installations with support for up to 8 IP channels. Embedded with Check Point’s Quantum IoT Nano agent, it delivers advanced, real-time threat prevention, protecting systems from common cyberattack vectors.

Fully NDAA compliant, the device ensures adherence to critical regulatory standards while providing all the essential features for streamlined and secure surveillance deployments

Video:

Input: 8 Channel Support
8 Channel Standard Connection (Via RJ-45 Network Port)
Output: HDMI (4K, 1080P), VGA (1080P, 1280×1024, 1024×768)

Bandwidth:

Incoming: 80Mbps
Outgoing: 80Mbps

Decoding Support:

H.265S/H.265+/H.265/H264

Analytics:

Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Loitering Detection, Illegal Parking, Audio Exception, Heat Map, Object Counting (Line),Object Counting (Area), Smart Search, Face Recognition, LPR, Thermal, Crowd Gathering, People Intrusion

Recording:

8CH 8MP Real-Time
FPS: 200 (PAL) / 240 (NTSC)

Playback:

Local: 8Ch Simultaneously
Remote: 8Ch Simultaneously

Audio:

Input: 1CH + IPC Inputs
Output: 1CH + IPC Output
2 Way Audio

Alarm:

Input: Based on IPC only
Output: Based on IPC only

Storage:

1 x SATA (Up to 10TB each)

USB Port:

2 USB 2.0 Port

Network:

1 x RJ-45: 10/100/1000Mbps Each

Remarks:

The following features are based on firmware v1.4.12_76576_RD250115 and are subject to firmware version changes.

Israeli made, professional, high quality security cameras for professional installations. Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

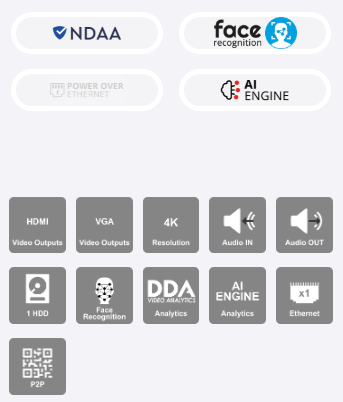

NVR8-8200N-V2 Features

3rd Party Cyber Protection

General

Quantum IoT Nano agent by Check Point™

Protection Methods

Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

Yes

Video

Video Input

8Ch over Network

Output

HDMI (4K, 1080P), VGA (1080P, 1280×1024, 1024×768)

View Mode

Mirrored

Fish-Eye Dewarp

Web Only

Decoding Format

H.265 / H.265+ / H.265S / H.264

Decoding Capabilities

1Ch – 8MP ; 4Ch – 2MP

Audio

Audio-specs-Input

1CH RCA (Linear, 1k?) + IPC inputs

audio-specs-Output

1CH RCA (2.0 Vp-p, 1 k?) + IPC outputs IP Speaker

Compression

G.711A/G.711U

Two Way Audio

Yes

Analytics

Supported Analytics

Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Loitering Detection, Illegal Parking, Audio Exception, Heat Map, Object Counting (Line),Object Counting (Area), Smart Search, Face Recognition, LPR, Thermal, Crowd Gathering, People Intrusion

Analytics Channels (IPC Based)

8Ch (Requires supporting IPC)

Analytic Channels (NVR Based)

Up to 2Ch DDA1 (Sterile Area/Line Crossing) or Up to 2Ch Face Detection (or their combinations)

Face Recognition Rate

N/A

Bandwidth

Incoming

80Mbps

Outgoing

80Mbps

Record/ Main Stream

Real-Time Recording

8CH 8MP Real-Time

Record Type

Video / Video + Audio

Recording Modes

Schedule, Manual, Motion, Sensor, Analytics, POS and all of the combinations

16MP

N/A

12MP

N/A

8MP

240FPS(NTSC)/200FPS(PAL)

5MP and lower

240FPS(NTSC)/200FPS(PAL)

Master stream over network

Up to 8CH@Recording Resolution

Substream

Resolution substream

Depends on IPC

Remote view

Max Channel View

40Ch (Limited to Outgoing Bandwidth Capacity)

Remote Applications

User Access

64 Users online with Professional Authority Management

Mobile App

Provision Cam2 for iOS/Android

PC/Mac Software

Ossia VMS Standard / Enterprise

Plug-in free Web-Browser

Chrome, FireFox, Safari, Edge, Opera. (All Limited to 4Ch Live View / Playback) *P2P WEB connetion always requires Plugin

Plug-in based Web-Browser

Internet Explorer

Playback

Local

8Ch

Remote

8Ch

Search Mode

DDA Object, Smart Search, LPR, Time-Slice, Time, Event, POS

Backup

USB

2 USB 2.0 Port

Backup Format

AVI (Unencrypted) / Private Format (Encrypted / Unencrypted)

Alarm

Alarm-in

Based on IPC only

Alarm-out

Based on IPC only

Storage

HDD

HDD Max Capacity

10TB

E-Sata Support

Total HDD Max Capacity

10TB

RAID

N/A

PTZ

Connection

Via Network

Supported Controls

Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus

RS-485

N/A

Network

Ethernet

1000/100/10Mbps self-adaptive Ethernet interface

Protocols

TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report Input + Output (Ossia VMS)

ONVIF

Full Device Support (Profile T/S/G, ONVIF Version 20.12)

PoE

PoE Ports

N/A

Speed

N/A

Standard

N/A

CCTV Mode

N/A

Total Power

N/A

Max. Power Output (Per Ch.)

N/A

Others

Power Supply

DC 12V/2A

Power consumption (No HDD)

10W

Dimension

W300xD249xH45mm

Operation Temperature

0°C~50°C

Documents

NVR8-8200N-V2 Datasheet
