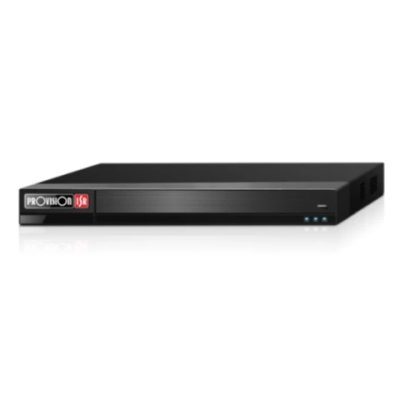

16CH 12MP Face Recognition NVR with Alarm, PoE – NVR12-16400PFAN(1U)

Login, Register, or Call for Price

16 Channel AI (PoE) • NDAA Certified • Output: HDMI/VGA • 1U Case, 2 HDD • Audio In/Out • Alarm In/Out • 1000Mbps Network

SKU: NVR12-16400PFAN(1U) Category: Provision-ISR NVR

Free Shipping for orders over $600 (AU Only)*

Brand: Provision-ISR

Description

Input: 16 Channel (Via PoE / Network) • Output: HDMI/VGA (4K, 1080P, 1280×1024, 1024×768) • Recording resolution – up to 12 Megapixels • Mini Metal Case, 2 HDD up to 8TB (not installed) • 1000Mbps Network

This is a 16 Channel AI NVR capable of recording cameras up to 12MP. Record 16 channels of up to 12MP with analytics – Face Recognition, Smart Search, Camera Tampering, Line Crossing (Old + DDA), Sterile Area (Old + DDA), Object Counting (Old + DDA), Item Monitoring, Crowd Gathering.

Playback to 4K / HD / VGA monitor in real time.

PoE ports are included on this model and maximum of 160Mb/s incoming or outgoing stream. Camera streams are added via LAN port (cameras require separate power) or PoE ports on NVR.

Install up to 2 surveillance grade Hard Disk Drives up to 8TB each.

Israeli made, professional, high quality security cameras for professional installations. Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

NVR8-16400PFA(1U) Features

3rd Party Cyber Protection

General

N/A

Protection Methods

N/A

NDAA Compliant

Yes

Video

Video Input

16Ch over Network

Output

HDMI (4K@60Hz, 4K@30Hz, 1080P), VGA (1080P, 1280×1024, 1024×768)

View Mode

Mirrored

Fish-Eye Dewarp

Local + Web

Decoding Format

H.265 / H.265+ / H.265S / H.264

Decoding Capabilities

1Ch – 12MP ; 4Ch – 2MP

Audio

Audio-specs-Input

1CH RCA (Linear, 1k?) + IPC inputs

audio-specs-Output

1CH RCA (2.0 Vp-p, 1 k?) + IPC outputs

Compression

G.711A/G.711U

Two Way Audio

Yes

Analytics

Supported Analytics

Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR, Thermal (Limited Support). Advanced Face Recognition Mode: Supports 2 Non-AI IPCs and performs face detection and recognition.

Analytics Channels (IPC Based)

16Ch (Requires supporting IPC)

Analytic Channels (NVR Based)

Up to 2Ch DDA1 (Sterile Area/Line Crossing) or Up to 2Ch Face Detection + Recognition or Up to 6Ch Face Recognition (or their combinations)

Face Recognition Rate

18 Faces per second (6Ch supported)

Bandwidth

Incoming

160Mbps

Outgoing

160Mbps

Record/ Main Stream

Real-Time Recording

16CH 8MP Real-Time 12MP – 20FPS

Record Type

Video / Video + Audio

Recording Modes

Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations

16MP

N/A

12MP

320FPS(PAL/NTSC)

8MP

480FPS(NTSC)/400FPS(PAL)

5MP and lower

480FPS(NTSC)/400FPS(PAL)

Master stream over network

Up to 12CH@Recording Resolution

Substream

Resolution substream

Depends on IPC

Remote view

Max Channel View

80Ch (Limited to outgoing Bandwidth Capacity)

Remote Applications

User Access

64 Users online with Professional Authority Management

Mobile App

Provision Cam2 for iOS/Android

PC/Mac Software

Ossia VMS Standard / Enterprise

Plug-in free Web-Browser

Chrome, FireFox, Safari, Edge, Opera. (All Limited to 4Ch Live View / Playback)

Plug-in based Web-Browser

Internet Explorer

Playback

Local

16Ch

Remote

16Ch on IE, 4Ch on H5

Search Mode

DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS

Backup

USB

2 USB 2.0 Port + 1 USB 3.0 Port

Backup Format

AVI (Unencrypted) / Private Format (Encrypted / Unencrypted)

Alarm

Alarm-in

8+IPC

Alarm-out

4+IPC

Storage

HDD

E-Sata Support

RAID

N/A

PTZ

Connection

via Network

Supported Controls

Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus

RS-485

Yes (C06 Keyboard Connection)

Network

Ethernet

10/100Mbps self-adaptive Ethernet interface

Protocols

TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS)

ONVIF

Full Device Support (Profile T/G, ONVIF Version 20.12)

PoE

PoE Ports

16xRJ45

Speed

10/100Mbps (10Mbps under CCTV Mode)

Standard

IEEE802.3AF/AT

CCTV Mode

Yes (Up to 200m and 10Mbps bandwidth)

Total Power

150W (Avarage 9.3W per Channel)

Max. Power Output (Per Ch.)

~15W*

Others

Power Supply

12VDC/4A

Power consumption (No HDD)

20W

Dimension

380 × 268 × 48.1 mm

Operation Temperature

0°C~50°C

Documents

NVR12-16400PFAN(1U)
