Name: Ultimate AI Series 8.0MP Motorised Bullet - VSIPU-8BIRM-I
Brand: VIP Vision
SKU: VSIPU-8BIRM-I
Availability: InStock

Ultimate AI Series 8.0MP Motorised Bullet – VSIPU-8BIRM-I

Ultimate AI Series 8.0MP Motorised Bullet

Description

Applying a deep learning algorithm, the VSIPU-8BIRM-I detects and captures both faces and vehicles to use in face recognition, intelligent searching and perimeter protection, all while delivering superb image performance with low light colour and automatic image adjustment.

Camera features:

Stream up to 8.0MP (3840 x 2160) at 25fps
2.7 ~ 12mm motorised lens with 114 ~ 47° viewing angles
H.265 encoding for efficient storage & streaming
Up to 60m infrared range; true day/night (auto ICR)
MicroSD slot for recording at the edge up to 256GB
Up to 10 channels of face recognition with an AI NVR
Detect faces and receive face alerts in real time
Search footage by face image or by facial attributes
Set up AI powered tripwire & intrusion rules, receive alerts and search footage by people or vehicles
Extend PoE up to 800m (requires ePoE NVR/switch)

Specification

Alarm Interface

3 channel in: 5mA 5VDC / 2 channel out: 1000mA 30VDC / 500mA 50VDC

Audio Interface

1 input (RCA Port) / 1 output (RAC Port) / Audio Compression: G.711a; G.711Mu; G726; G.723

Bit Rate

H.264: 32Kbps ~ 16384Kbps / H.265: 12Kbps ~ 16384Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Auto (ICR) / Color / B&W

Detect (25px/m)

87m (wide) / 187m (tele)

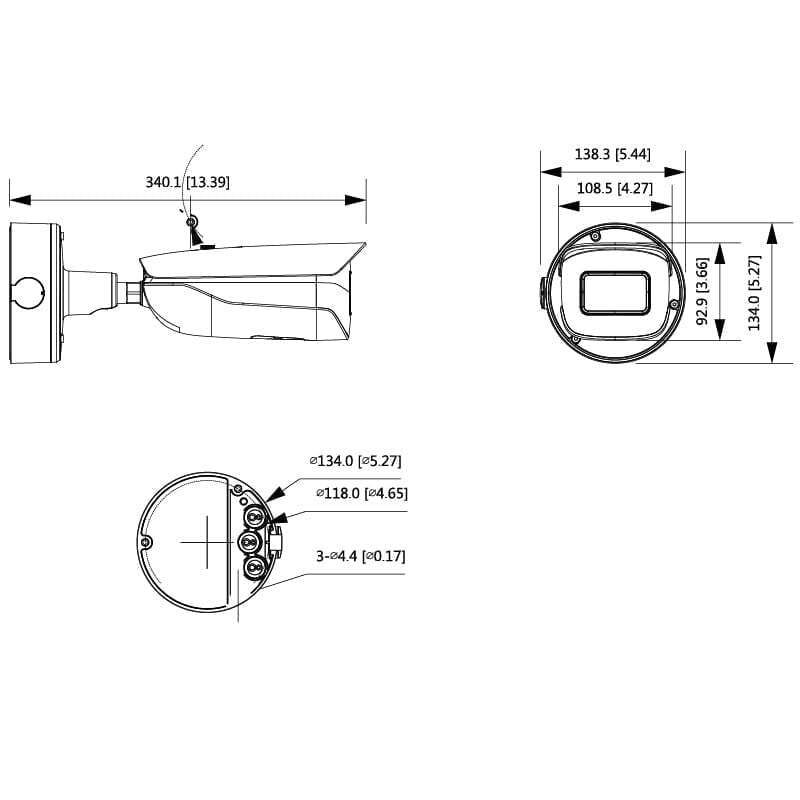

Dimensions

340mm x 109mm x 93mm

Edge Storage

MicroSD Card (up to 256GB) / NAS / FTP /SFTP

Effective Pixels

3840 (H) x 2160 (V)

Ethernet

RJ-45 (10/100Base-T)

Event Trigger

N/A

Face Attributes

Age, gender, expression, glasses, mouth mask and facial hair

Face Detection

Face image recognition and detection up to 10 channels with AI NVR

Field of View

Horizontal: 114°~47°, Vertical: 59°~27°

Focus

Auto Focus / 1.2m Min. Focus Distance

Frame Rate (Main)

8.0MP (1 ~ 25fps)

Frame Rate (Sub)

704 x 576 (1 ~ 25fps)

Frame Rate (Third)

1080p (1 ~ 25fps)

Gain Control

Auto / Manual

Heat Map

N/A

Housing

Metal, Plastic

Identify (250px/m)

9m (wide) / 19m (tele)

Image Sensor

1/1.8’’ 8.0MP Progressive Scan CMOS

Infrared System

4 x Infrared LED, 60m range, Auto/manual on/off control

Ingress Protection

IP67

Intelligent Functions

Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object

Intelligent Search

With a smart NVR intelligent search. Search tripwire / intrusion events by people or vehicle. Or search footage by face image and face attributes

Interoperability

ONVIF / P2P / CGI / Milestone / Genetec

Lens / Iris

2.7 ~ 12.0mm F1.2 Motorised Varifocal Lens with Auto Iris

Lighting Compensation

BLC / HLC / WDR (120dB)

Max. User Access

20 Users

Min Illumination

0.003 Lux / F1.2 (Color)

Net Weight

1.60kg

Noise Reduction

3D DNR

Observe (63px/m)

35m (wide) / 75m (tele)

Operating Conditions

-40°C ~ +60°C, ?95% RH

Pan/Tilt/Rotation

Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°

People Counting

Supports line crossing/region/queuing people counting. 4 independent access detection / 4 dependent access detection

Perimeter Protection

Tripwire, Intrusion (Human/Vehicle Recognition), Fast Movement Detection, Loitering Detection, Parking and Gathering Detection

Picture Control

Mirror / Flip (0°, 90°, 180°, 270°) (8.0MP supports 90° & 270° at 1080p resolution)

Power Consumption

<17.3W

Power Supply

12VDC / 24VAC / PoE (802.3af) (Class 4)

Protocol

HTTP; Https; 8021.x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; SFTP; RTMP; Genetec; Bonjour

RAM / ROM

2GB / 4GB

Recognise (125px/m)

17m (wide) / 37m (tele)

Resolution

8.0MP (3840 x 2160) to CIF (352 x 288)

RS485

1 (Bit rate: 1200bps ~ 115200bps)

S/N Ratio

> 50dB

Series

Ultimate AI Series Cameras

Streaming Method

Unicast / Multicast

Vandal Resistance

IK10

Video Compression

H.265, H.264, H.264B, H.264H, MJPEG

Video Interface

N/A

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Download documents from the following links:

VIP_Vision_Ultimate_AI_Bullet_Datasheet_PDF
