Description
VSETH-SW24G2 is a 24-port Gigabit Ethernet switch that offers high-speed data transmission and reliability for home and SOHO applications.
Features:
- 24 x 10/100/1000Mbps Base-T Ethernet ports
- Unmanaged switch for affordability & ease of use
- LED indicators for displaying information
- Professional appearance full metal enclosure
- Rackmount cabinet & desktop installation option
- Overvoltage protection up to 2kV
- 240VAC input power
Specifications
Ports
24 ports
Speed
Gigabit 10/100/1000
Device Ports
24 x 10/100/1000 Base-T
Uplink Ports
N/A
Switching Capacity
40Gbps
Packet Forwarding Rate
35.71Mpps
Exchange Mode
Store & foward
PoE
No
PoE Protocol
N/A
Switch Power Load
N/A
Switch Management
Unmanaged
MAC Address Capacity
16K
Virtual LAN
N/A
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
LLDP
N/A
DHCP
N/A
Extend Mode
N/A
Flow Control
N/A
Security Features
N/A
System Maintenance
N/A
Quality of Service
N/A
Network Management
N/A
PoE Management
N/A
Input Power
100-240VAC
Lightning Protection
Common Mode: 2KV /Air Discharge: 8KV / Contact Discharge: 6KV / Differential Mode: 0.5V
Mounting Options
Rackmount Tabs / Desktop Mount
Operating Environment
10° ~ +55°C
Weight
0.83kg
Dimensions
294mm x 119mm x 44mm
Jumbo Frame
12K Byte
Warranty (Years)
4
Please ask your product question below:
VIP Vision 24 Port Unmanaged Gigabit Ethernet Switch (1000M) – VSETH-SW24G2
$165.00Original price was: $165.00.$140.36Current price is: $140.36.24 Port Unmanaged Gigabit Ethernet Switch – Networking and Communication > Network Switches
Description
VSETH-SW24G2 is a 24-port Gigabit Ethernet switch that offers high-speed data transmission and reliability for home and SOHO applications.
Features:
Specifications
Please download documents from the following links:
VIP Vision VSETH-SW Series Datasheet (PDF)
Please ask your product question below:
Related products
Power Over Ethernet Receiver – WT-CAT5POER
$38.54Original price was: $38.54.$32.62Current price is: $32.62.VIP Vision 8-port Unmanaged Gigabit Hi-PoE Ethernet Switch – VSPOE-SWB8G
$203.50Original price was: $203.50.$139.15Current price is: $139.15.Ethernet over Coax Converter Pair – VSEOCPAIRV2
$29.00Original price was: $29.00.$21.78Current price is: $21.78.VIP Vision Unmanaged Gigabit 4-Port PoE Switch with 2-Port Uplink (1000M) – VSPOE-SWB4U
$84.37Original price was: $84.37.$71.39Current price is: $71.39.Ethernet over Coax Tx / Rx bundle
$158.00Original price was: $158.00.$115.00Current price is: $115.00.VIP Vision 16 Port Unmanaged Gigabit Ethernet Switch (1000M) – VSETH-SW16G2
$132.00Original price was: $132.00.$111.32Current price is: $111.32.4-port Unmanaged Fast Hi-PoE Ethernet Switch – VSPOE-SWA4F
$108.90Original price was: $108.90.$75.02Current price is: $75.02.Available on back-order
View productAdd to cart10m Pre-terminated CAT5 Ethernet Cable – NETCABLE10
$15.55Original price was: $15.55.$11.24Current price is: $11.24.Ethernet over Coax Receiver – VSEOC-ARX

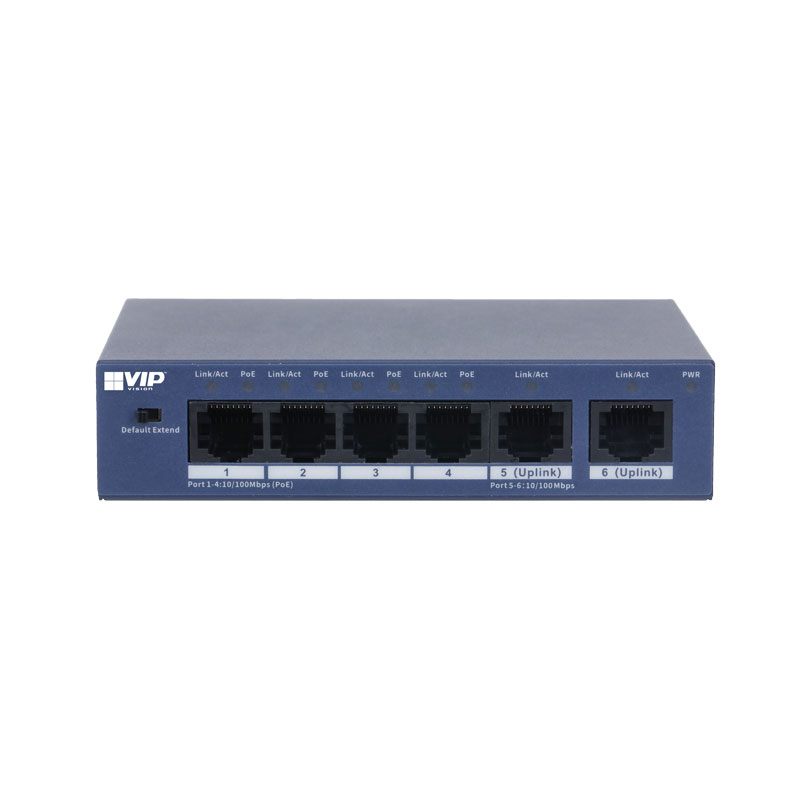

$79.00Original price was: $79.00.$58.08Current price is: $58.08.VIP Vision Unmanaged 4-Port PoE Switch with 2-Port Uplink (100M) – VSPOE-SWA4U
