VIP Vision 8-port Unmanaged Gigabit Hi-PoE Ethernet Switch - VSPOE-SWB8G
Sale!
VIP Vision 8-port Unmanaged Gigabit Hi-PoE Ethernet Switch - VSPOE-SWB8G - Image 2
VIP Vision 8-port Unmanaged Gigabit Hi-PoE Ethernet Switch - VSPOE-SWB8G - Image 3
VIP Vision 8-port Unmanaged Gigabit Hi-PoE Ethernet Switch - VSPOE-SWB8G - Image 4

VIP Vision 8-port Unmanaged Gigabit Hi-PoE Ethernet Switch – VSPOE-SWB8G

Guest Price – Login to see Member Pricing

Original price was: $203.50.Current price is: $119.79.

8-port Unmanaged Gigabit Hi-PoE Ethernet Switch – Networking and Communication > Network Switches

Available on back-order

SKU: VSPOE-SWB8G Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

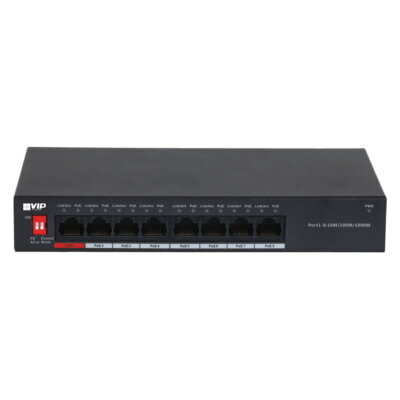

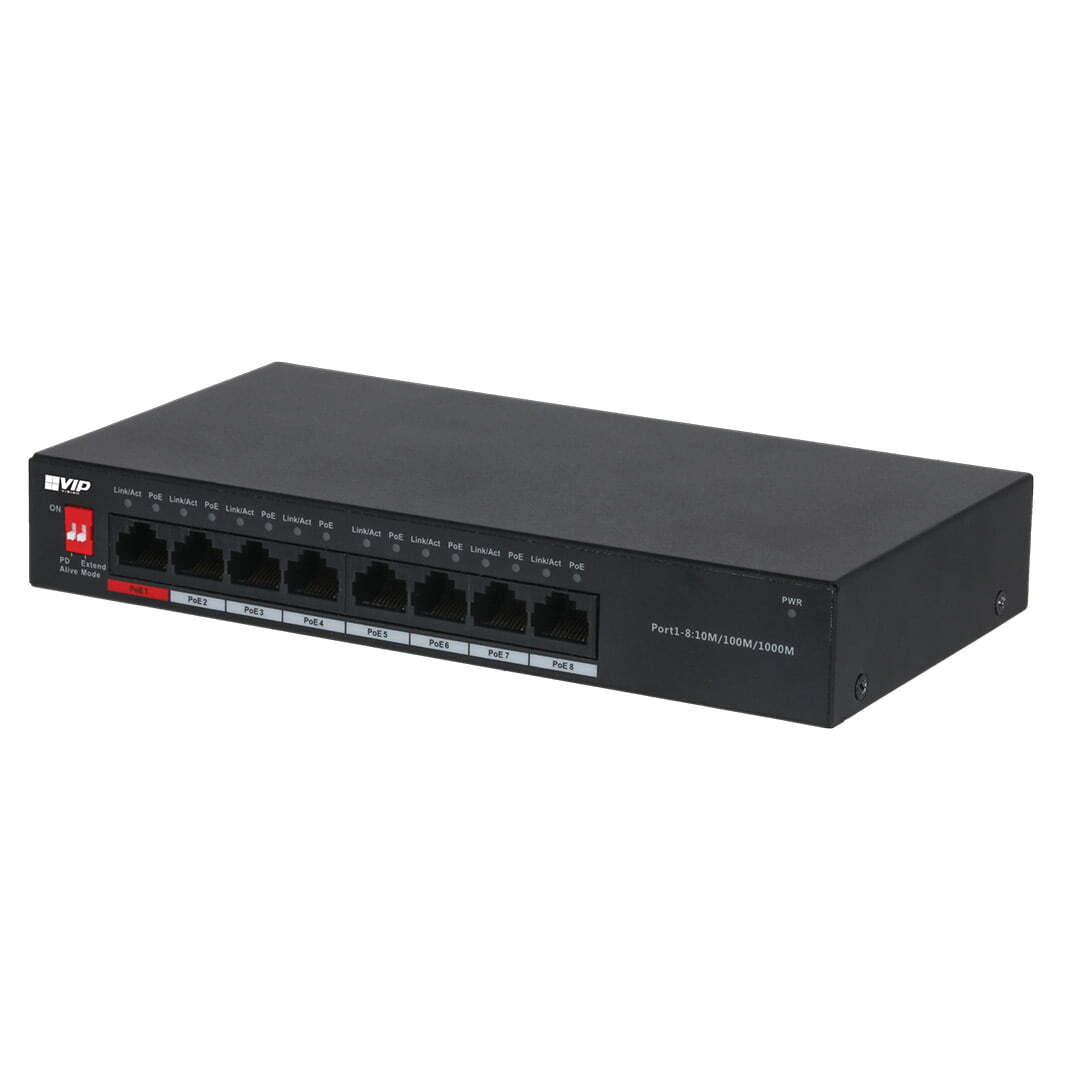

The VSPOE-SWB8G is a desktop, gigabit Hi-PoE switch in 8 ports. It is a high speed networking solution for home & SOHO applications, with flexibility for a range of high-powered PoE devices. It is ideal for building secondary networks with high bandwidth demand whilst simultaneously providing Power over Ethernet.

• 7 x PoE+ device ports with 1000Mbps per port
• 1 x Hi-PoE device port with 1000Mbps per port
• Device ports can be utilised as uplink ports
• Total PoE power load up to 96W
• Unmanaged switch for plug & play applications
• Desktop mount for home and SOHO use
• Professional appearance full metal enclosure

Specifications

Switch Specification
Ports
8 ports
Speed
Gigabit 10/100/1000
Device Ports
8 x 10/100/1000 Base-T (PoE power supply ports)
Uplink Ports
N/A
Switching Capacity
20Gbps
Packet Forwarding Rate
11.9Mbps
Exchange Mode
Store & forward
Power over Ethernet
PoE
Yes
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE / PoE (EEE802.3bt)
Switch Power Load
Port 1: ?90W / Ports 2~8: ?30W (Total: ?96W)
Management
Switch Management
Unmanaged
MAC Address Capacity
8K
Virtual LAN
N/A
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
LLDP
N/A
DHCP
N/A
Extend Mode
Up to 250m range
Flow Control
Enabled
Security Features
N/A
System Maintenance
N/A
Quality of Service
N/A
Network Management
N/A
PoE Management
N/A
Environmental

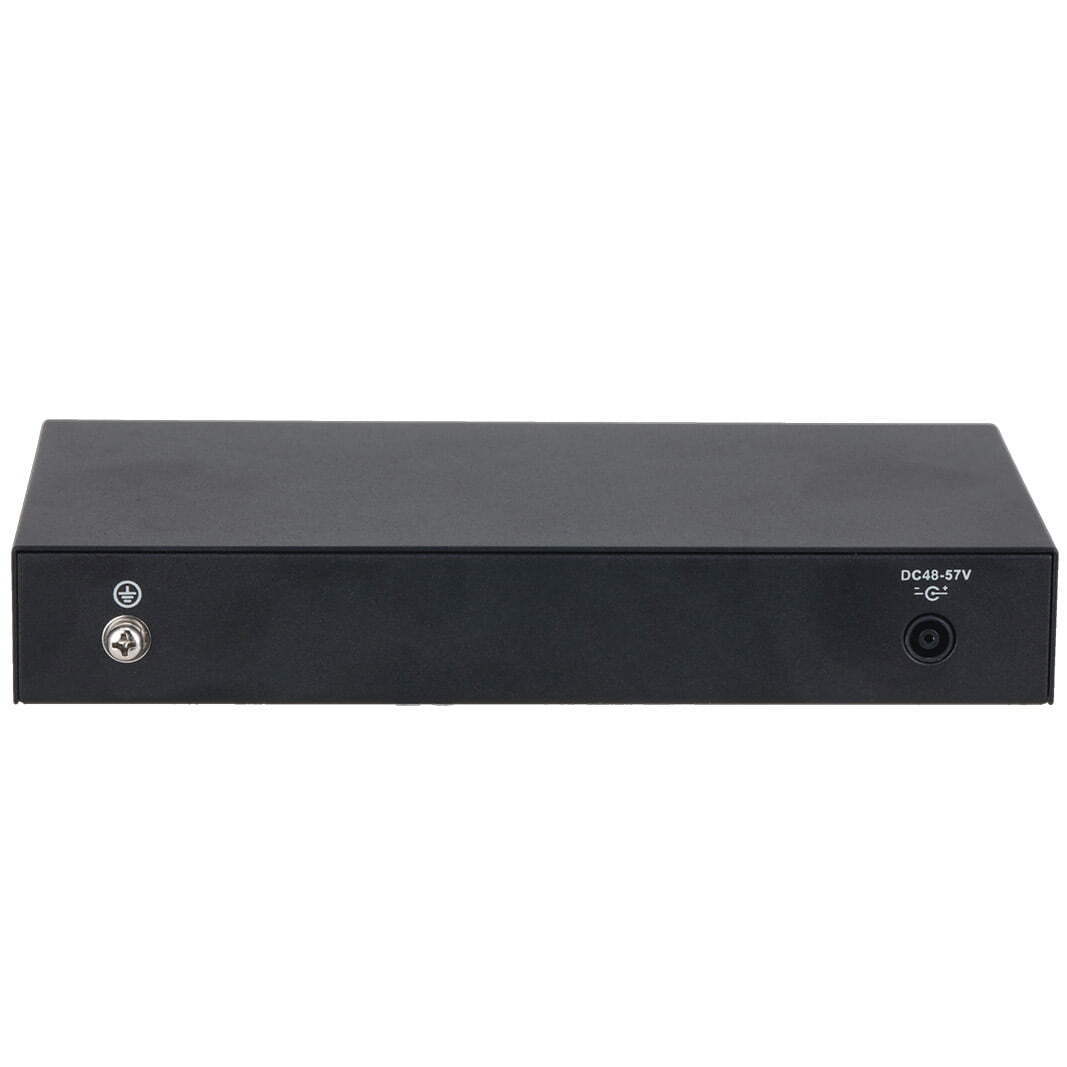

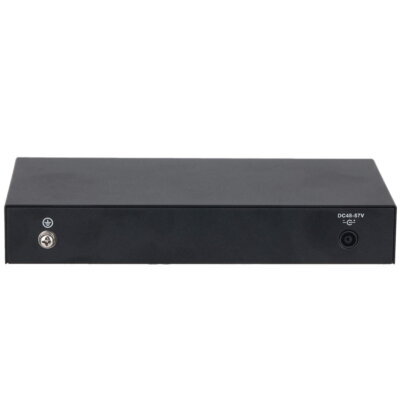

Input Power
48 ~ 57VDC
Lightning Protection
Common Mode: 4kV / Differential Mode: 2kV
Mounting Options
Desktop
Operating Environment
-10° ~ 55°C / RH95% (max)
Weight
0.49kg

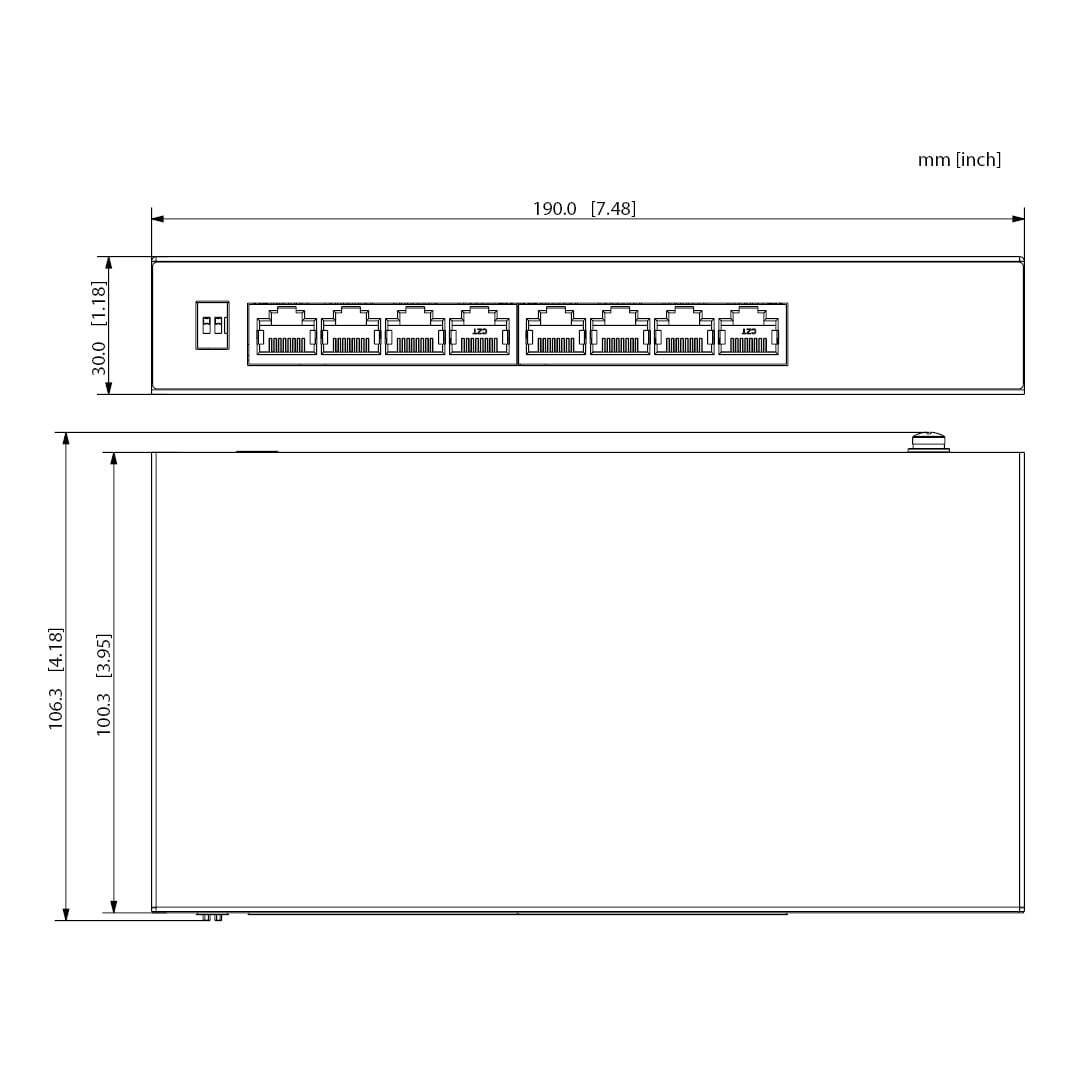

Dimensions
190 x 100 x 30mm
Warranty (Years)
4



Register for Member Pricing

Download documents from the following links:

VSPOE-SWB Series Datasheet (PDF)
