LTE (4G) or LAN Video Digital Door Phone (Multi-Resident )
$2,695.00Original price was: $2,695.00.$2,667.50Current price is: $2,667.50.
LTE (4G) Video intercom for up to 1000 apartments / units / homes.
Retro fit to existing multi-dwelling applications without rewiring the whole facility. Very cost effective in comparison to intercom system replacement.

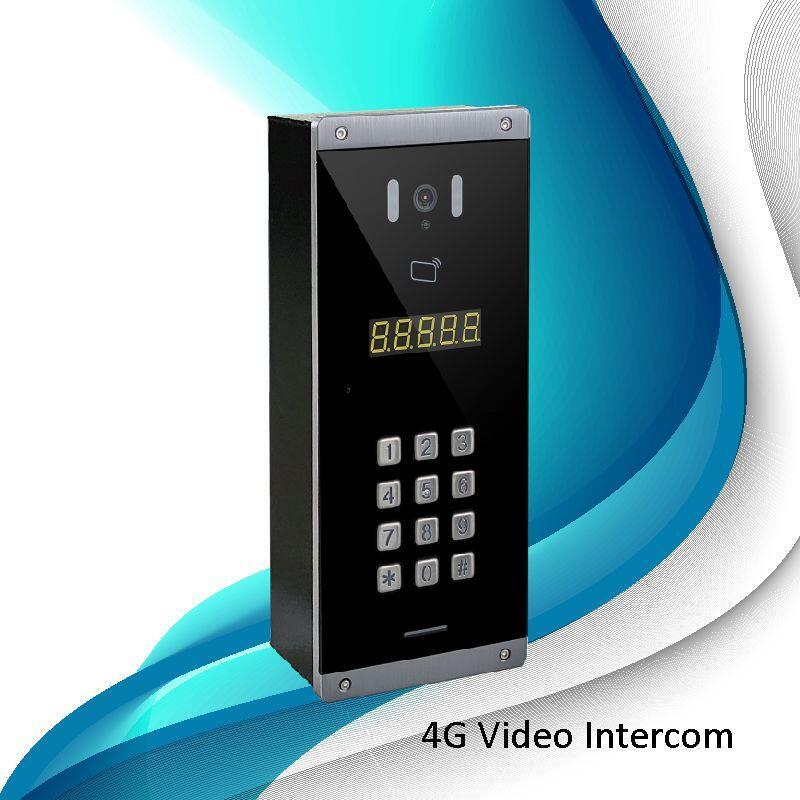

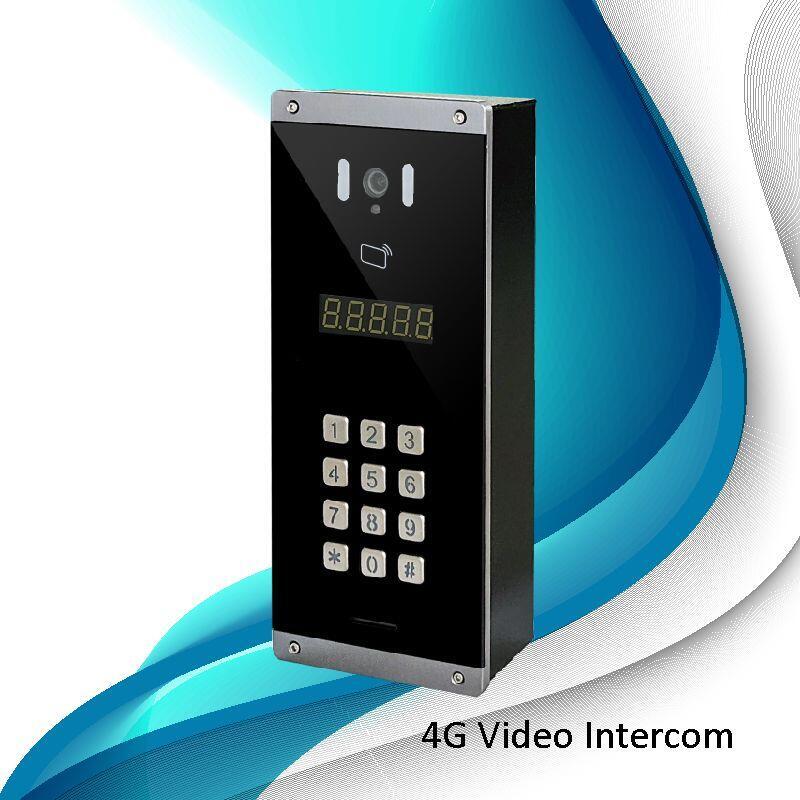

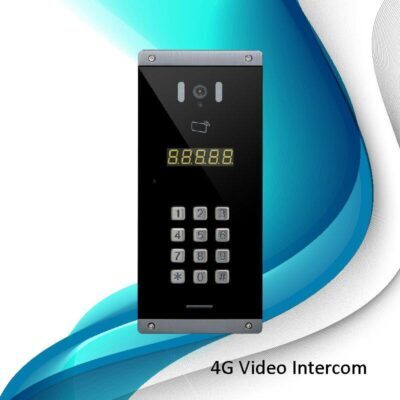

The 4G or LAN doorway intercom (AN1912) is a digital video intercom (Multi-Resident) that uses wired or mobile networks for access control and communication with residents. The intercom connects with a server either through a 4G network or wired network and can be configured and managed by a mobile APP.
The 4G door video intercom main functions are video intercom, open door methods (PIN code, APP, QR code), and face detection alarms. The APP keeps an access log and can be configured to record video on an SD card. The device has an aluminium alloy panel with IP54 rating. The AN1912 4G door video intercom can be used in old apartments, elevators, factories, commercial compleses, gated estates, or car parks.
The system is managed through an App or through an online portal allow for quick adds and deletes and changes as required. Manage multiple door stations through the App or portal. Ideal for building managers, service providers, body corporates etc.
When a visitor arrives they enter the apartment / unit / home number on the keypad and the intercom calls the programmed number – this can be a smart phone with the APP or a phone number (audio call only – requires 4G SIM for phone calls). The resident answers the call and can open the gate remotely.
The admin adds the tenant apartment number and mobile phone number through the administrator App. If the phone number is a land line all calls will be voice only. When users register through the App they will receive video calls to the App on mobile. If they wish to receive voice calls they remove their account through the App and delete the App from their phone.
4G IP videophone Instant videocall to mobile app 24/7 video recording Face detection alarm Max. 1000 room numbers. Max. 1000 MI fare cards (optional) Max. 1000 PIN codes 4G LTE/3G/GSM network 1080P H.265 video 2-way audio SD card storage up to 128GB
4G intercom uses the 4G mobile network, no network wiring, no landline. The old building can be retrofitted with this intercom without replacing the old cabling.
Car Park Access Control
4G intercom can be used in the car park for vehicle access control or service call
4G intercom can generate a QR code for temporary entry and exit permission, providing visitors with temporary entry
Model
AN1912
Video
Image Sensor
1/2.7” 2MP CMOS
Image Compression
H.265
Image Frame Rate
25fps maximum
Resolution
1080P(1920 x 1080), VGA(720 x 576)
Lens
2.8mm
Angle of View
H:90° V:80°
Day Vision
Color Image, auto switch IR-CUT
Nigh Vision
BW Image, 6 Infrared LED
Audio
Audio Input
Omnidirectional Mic
Audio Output
Built-in Speaker
Bidirectional Talk
Dual-way bidirectional talk
Audio Compression
AMR
Display
Seven-segment display
5 digits
Storage
SD Card Type
Micro SD Card slot
SD Capacity
Maximum 128 GB
Network
Ethernet
10/100Mbps (PoE optional)
Mobile network
4G LTE/3G/GSM
Call
Video Call
Android and iOS APP
Voice Call
Mobile voice call
Door Release
Unlock door
Remotely by APP, voice call DTMF, Pin code, Mifare card
Relay Outputs
2
Exit Button input
1
Detector input
1
Relay type
NO & NC
Relay time
7 types of Seconds control
Relay load
10A(AC240V/DC24V)
OperationMode
Keypad
Mechanical Button
Reader
Type A Mifare Card
Alarm
Face detection
Record 10s video clip
Notification
Alarm , Warning , Notification
Power
Power Supply
DC 12V
Power Consumption
10 Watts (Max.)
Environment
Operating Temperature
-10 to +50 °C (+14 to +124 °F)
Operating Humidity
10-80%RH
Storage Temperature
-20°C ~ 60° (-4°F ~ 140°F)
Storage Humidity
0% ~ 90%
General
Reset
Reset button
SIM Card
Micro SIM Card slot
Material
Aluminum
Waterproof
IP54
Product Dimension
276(L)*116(W)*50(H) mm
Net Weight
2.5Kg
Notes on The App:
The App is constrained by the settings on the Smart phone. With many different types and versions of mobile phones the App may behave in different ways depending on the phone, operating system, and version. We have found that every update (Android or IOS) can change the behavior on the smart phone.
A communications App is not the main purpose of the smart phone (other than the embedded phone and messaging App) and therefore the manufacturers try to manage 3rd part Apps to reduce power drain and maintain security.
There are many settings which influence the way the App will appear and behave:
The App needs to have notification permissions set to allow calls to be received,
the App should be prioritised on top of other Apps when a call arrives so it is easy to find,
the notification should appear on the lock screen to alert you to the call source, and
ideally the App should appear full screen when a call arrives.
These can be difficult to set in some phones and this may be the case even with the same operating system in different phones. We deal with many different Apps for communications – Intercom and Soft Phone – from different manufacturers and this is a common theme. The difference with this system is that you can receive calls as audio only and these calls use the SIM to make the call. Other systems rely on a 3rd party server to direct calls to audio and they are a subscription model.
Where the App is an issue on your smart phone you have the option to receive voice calls only and unlock using the # key while in the call.
Support for the App on smart phones is necessarily limited due to the many factors that can affect the performance. The voice call option does work well.
LTE (4G) or LAN Video Digital Door Phone (Multi-Resident )
$2,695.00Original price was: $2,695.00.$2,667.50Current price is: $2,667.50.Retro fit to existing multi-dwelling applications without rewiring the whole facility. Very cost effective in comparison to intercom system replacement.
Description
The 4G door video intercom main functions are video intercom, open door methods (PIN code, APP, QR code), and face detection alarms. The APP keeps an access log and can be configured to record video on an SD card. The device has an aluminium alloy panel with IP54 rating. The AN1912 4G door video intercom can be used in old apartments, elevators, factories, commercial compleses, gated estates, or car parks.
The system is managed through an App or through an online portal allow for quick adds and deletes and changes as required. Manage multiple door stations through the App or portal. Ideal for building managers, service providers, body corporates etc.
When a visitor arrives they enter the apartment / unit / home number on the keypad and the intercom calls the programmed number – this can be a smart phone with the APP or a phone number (audio call only – requires 4G SIM for phone calls). The resident answers the call and can open the gate remotely.
The admin adds the tenant apartment number and mobile phone number through the administrator App. If the phone number is a land line all calls will be voice only. When users register through the App they will receive video calls to the App on mobile. If they wish to receive voice calls they remove their account through the App and delete the App from their phone.
This intercom is surface mount only.
Features
4G IP videophone
Instant videocall to mobile app
24/7 video recording
Face detection alarm
Max. 1000 room numbers.
Max. 1000 MI fare cards (optional)
Max. 1000 PIN codes
4G LTE/3G/GSM network
1080P H.265 video
2-way audio
SD card storage up to 128GB
Applications
Old Apartment Multi-Household Intercom
4G intercom uses the 4G mobile network, no network wiring, no landline. The old building can be retrofitted with this intercom without replacing the old cabling.
Car Park Access Control
4G intercom can be used in the car park for vehicle access control or service call
Temporary Access Permission For Visitors
4G intercom can generate a QR code for temporary entry and exit permission, providing visitors with temporary entry
Model
AN1912
Video
Audio
Display
Storage
Network
Call
Door Release
OperationMode
Alarm
Power
Environment
General
Notes on The App:
The App is constrained by the settings on the Smart phone. With many different types and versions of mobile phones the App may behave in different ways depending on the phone, operating system, and version. We have found that every update (Android or IOS) can change the behavior on the smart phone.
A communications App is not the main purpose of the smart phone (other than the embedded phone and messaging App) and therefore the manufacturers try to manage 3rd part Apps to reduce power drain and maintain security.
There are many settings which influence the way the App will appear and behave:
These can be difficult to set in some phones and this may be the case even with the same operating system in different phones. We deal with many different Apps for communications – Intercom and Soft Phone – from different manufacturers and this is a common theme. The difference with this system is that you can receive calls as audio only and these calls use the SIM to make the call. Other systems rely on a 3rd party server to direct calls to audio and they are a subscription model.
Where the App is an issue on your smart phone you have the option to receive voice calls only and unlock using the # key while in the call.
Support for the App on smart phones is necessarily limited due to the many factors that can affect the performance. The voice call option does work well.
Download documents from the following links:
AN1912 video intercom UG V1.43 Manual
IOS APP User Manual for AN1912-4G
Android APP User Manual for AN1912-4G
