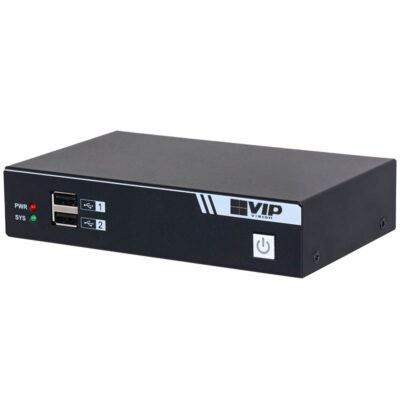

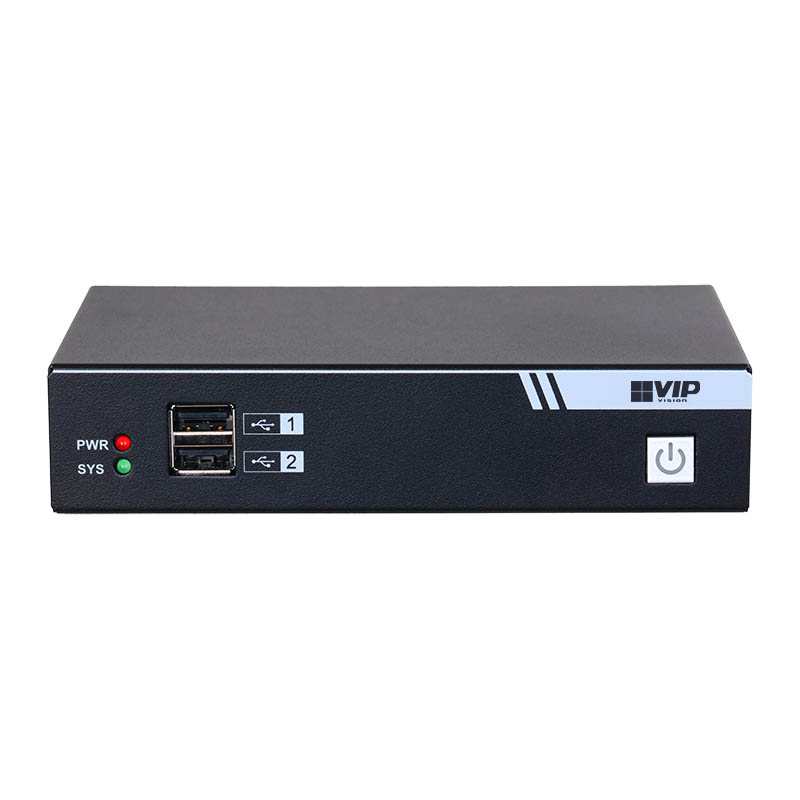

Ultra HD Network Video Decoder (2 x HDMI Out) - NVD-A2
Sale!
Ultra HD Network Video Decoder (2 x HDMI Out) - NVD-A2 - Image 2
Ultra HD Network Video Decoder (2 x HDMI Out) - NVD-A2 - Image 3
Ultra HD Network Video Decoder (2 x HDMI Out) - NVD-A2 - Image 4
Ultra HD Network Video Decoder (2 x HDMI Out) - NVD-A2 - Image 5

Ultra HD Network Video Decoder (2 x HDMI Out) – NVD-A2

Original price was: $470.47.Current price is: $398.09.

Ultra HD Network Video Decoder (2 x HDMI Out) – Surveillance Essentials > Display Accessories

SKU: NVD-A2 Categories: , , ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The NVD-A2 IP Video Decoder is your ultimate high-performance video wall solution, transforming two HDMI displays into a dynamic surveillance hub. Seamlessly stream live footage from any network-connected camera, recorder, or HDMI video input, ensuring crystal-clear monitoring across multiple sources. Fully configurable over the network or via SmartPSS, this decoder delivers unparalleled flexibility and control for professional surveillance applications.

Features:

  • Roaming decoder displays all video feeds on the network
  • Advanced video wall slicing—up to 36 displays per monitor
  • Split-screen control with zoom, merge, roam, and overlay functionality
  • Effortlessly switch between standard and high-definition streams
  • Powerful decoding: Supports up to 2CH 4K, 10CH 1080p, or 32CH D1 resolution
  • Integrated audio support and multi-video split display capabilities
  • Easy remote management via web browser or VIP Vision SmartPSS
Register for Member Pricing

Specifications

System
Processor
High-Performance Embedded Processor
Operating System
Embedded Linux
Performance
Video Format
H.265 / H.264
Audio Format
PCM
Video Decoding Capacity (Separate)
–
Video Decoding Capacity (Total)
Decodes maximum 2Ch@8MP(25fps), 3CH@6MP(25fps), 5CH@5MP(25fps), 5CH@4MP(25fps), 7CH@3MP(25fps), 10CH@1080p(30fps) and 32CH@D1(30FPS) Simultaneously
Decoding Resolution
8MP / 6MP / 5MP / 3MP / 1080p / 960H / D1
Video Frame Rate
PAL: 1~25fps / NTSC: 1~30fps
Video Input
–
Video Output
2 x HDMI
Collection Resolution
–
Display Resolution
1024 x 768@60Hz, 1280 x 720@60Hz, 1280 x 1024@60Hz and 1920 x 1080@60Hz
Display Split
1 / 4 / 6/ 8 / 9 / 16 / 25 split. Supports M x N custom split and M x N < 36
Bi-directional Talk
–
Alarm Input
–
Alarm Output
–

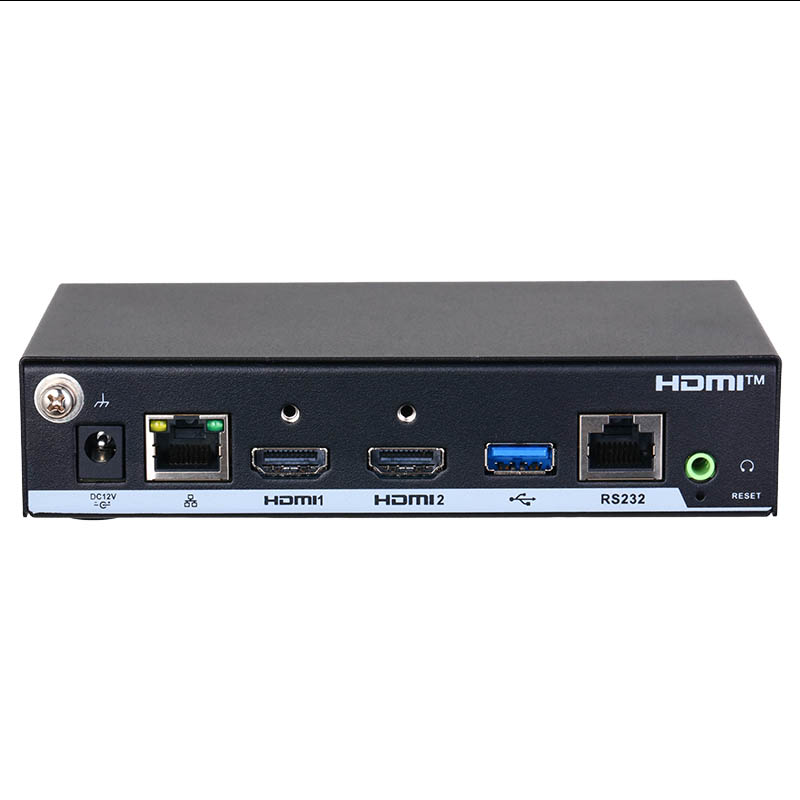

Communication Interface
1 x RJ45 network port (10 / 100 / 1000M), 1 x RS232 (via RJ45, 3 x USB
Environment
Power Supply
100-240 VAC, 50-60Hz
Power Consumption
<24W
Operating Temperature
-10°C to +55°C

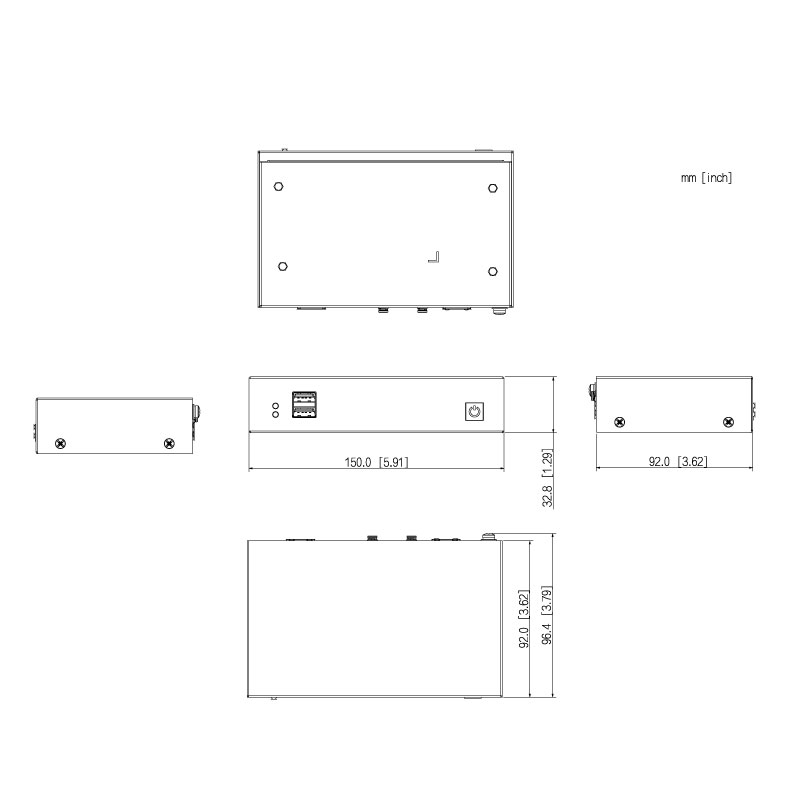

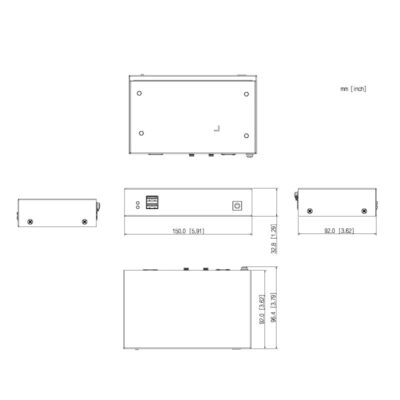

Dimensions
150.0 mm x 92.0 mm x 32.8 mm (L x H x W)
Weight
0.30kg
Warranty (Years)
4



Please download documents from the following links:

VIP Vision NVD-A Series Datasheet (PDF)
