This advanced PIR body heat movement sensor is suitable for indoor use with any alarm control panel. It can detect movement up to 15 meters away at an angle of 90 degrees from the sensor. The detector features automatic temperature compensation to improve performance when the ambient heat level in a room changes. The adjustable pulse count function enables you to select either normal or reduced detection sensitivity levels for use in harsh environments.
Features:
• Detects Human Movement Up To 15m Away
• Auto temperature compensation reducing false alarm
• Pet immunity for up to 25KG
• Adjustable plus count
• Dual element low noise pyroelectric sensor

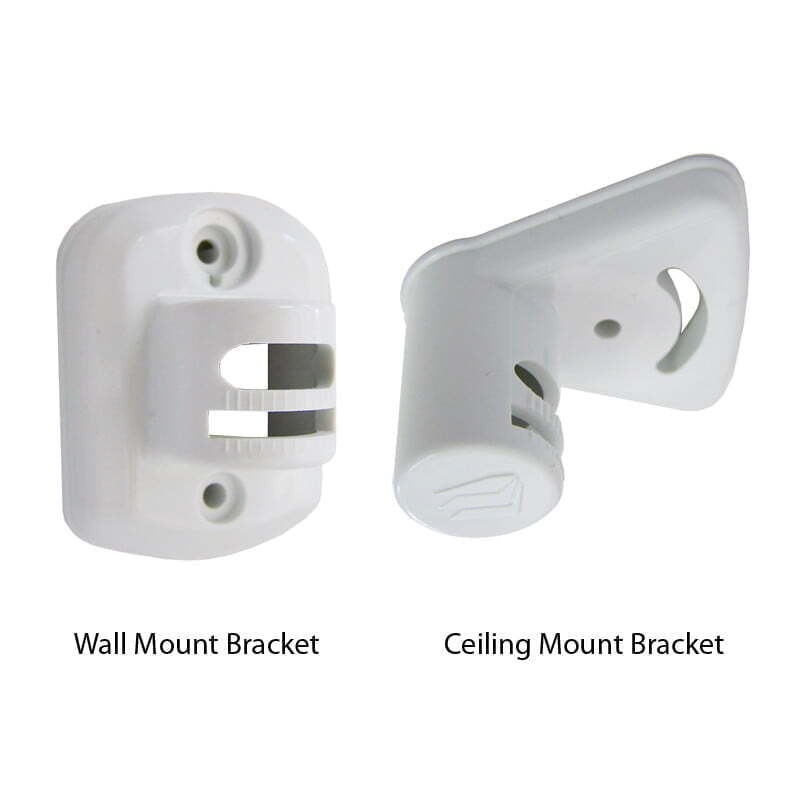

• Wall and ceiling brackets included
Specification
Contact Resistance
<10ohms
Detecting Angle
90°
Detection Range
15m
Detection Speed
0.3-3.0m/s
Dimension
W65xD45xH115mm
Installation Method
Wall mount or ceiling mount (Wall and ceiling brackets included)

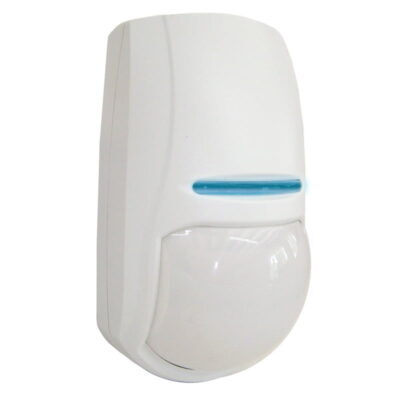

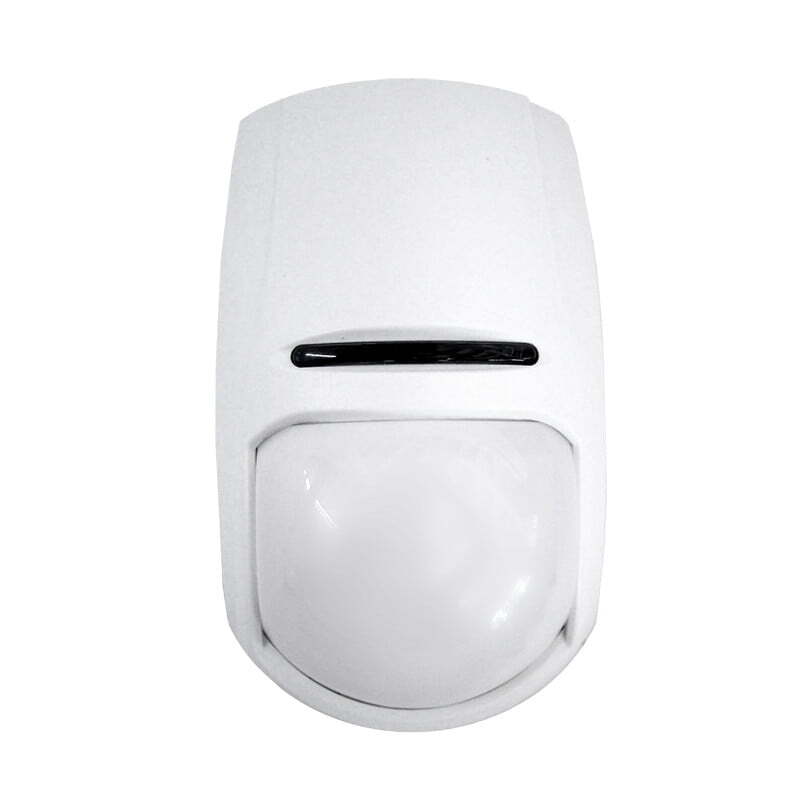

Universal Passive Infrared Movement Sensor With Pet Immunity – PIRHWDT2
$35.00Original price was: $35.00.$26.14Current price is: $26.14.Description
This advanced PIR body heat movement sensor is suitable for indoor use with any alarm control panel. It can detect movement up to 15 meters away at an angle of 90 degrees from the sensor. The detector features automatic temperature compensation to improve performance when the ambient heat level in a room changes. The adjustable pulse count function enables you to select either normal or reduced detection sensitivity levels for use in harsh environments.
Features:
• Detects Human Movement Up To 15m Away
• Auto temperature compensation reducing false alarm
• Pet immunity for up to 25KG
• Adjustable plus count
• Dual element low noise pyroelectric sensor
• Wall and ceiling brackets included
Specification
Download documents from the following links:
PIRHWDT2 Product Brochure (PDF)
PIRHWDT2 Product Manual (PDF)
