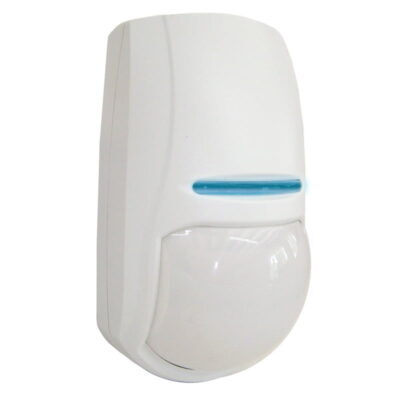

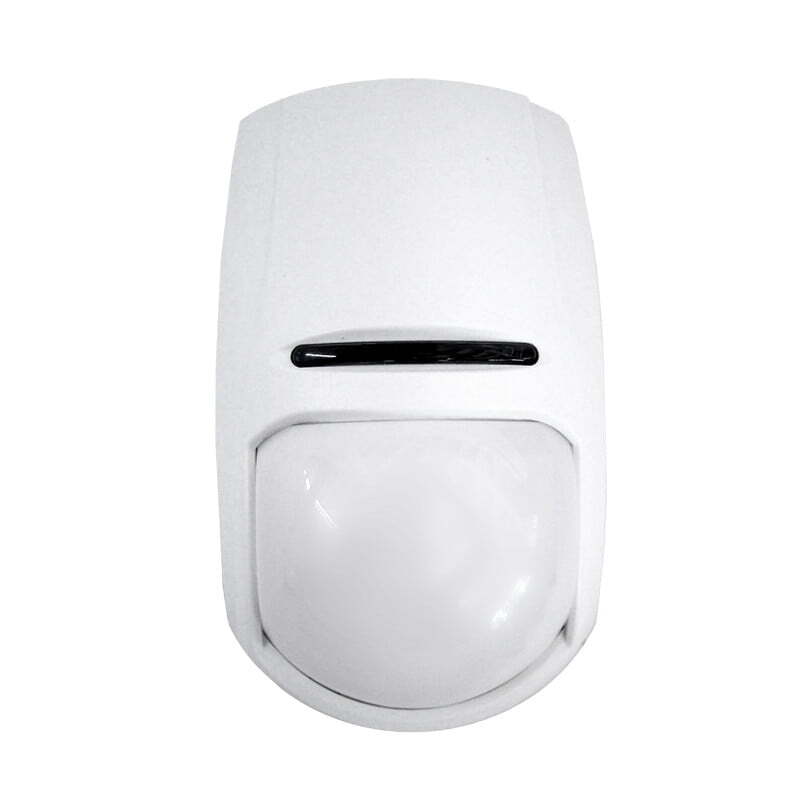

Universal Passive Infrared Movement Sensor With Pet Immunity
Sale!
Universal Passive Infrared Movement Sensor With Pet Immunity
Universal Passive Infrared Movement Sensor With Pet Immunity

Universal Passive Infrared Movement Sensor With Pet Immunity – PIRHWDT2

Guest Price – Login to see Member Pricing

Original price was: $38.50.Current price is: $32.07.

Universal Passive Infrared Movement Sensor With Pet Immunity

SKU: PIRHWDT2 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

This advanced PIR body heat movement sensor is suitable for indoor use with any alarm control panel. It can detect movement up to 15 meters away at an angle of 90 degrees from the sensor. The detector features automatic temperature compensation to improve performance when the ambient heat level in a room changes. The adjustable pulse count function enables you to select either normal or reduced detection sensitivity levels for use in harsh environments.

Features:
• Detects Human Movement Up To 15m Away
• Auto temperature compensation reducing false alarm
• Pet immunity for up to 25KG
• Adjustable plus count
• Dual element low noise pyroelectric sensor

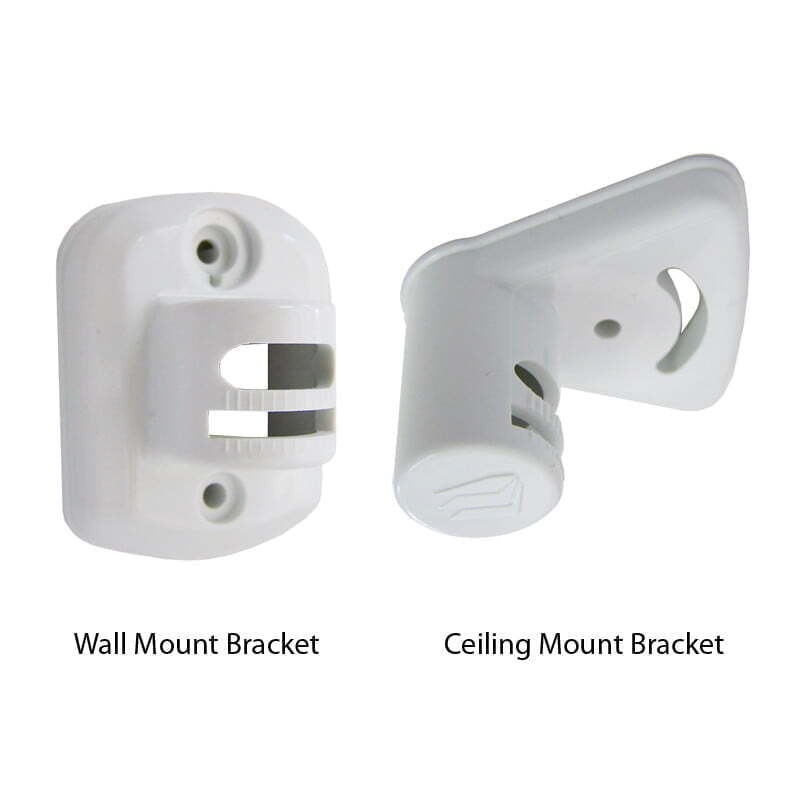

• Wall and ceiling brackets included

Specification

Contact Resistance
<10ohms

Detecting Angle
90°

Detection Range
15m

Detection Speed
0.3-3.0m/s

Dimension
W65xD45xH115mm

Installation Method
Wall mount or ceiling mount (Wall and ceiling brackets included)

LED Colour
Blue

Mounting Height
2-4m

Operating Temperature
-30°C~70°C

Operating Voltage
9-16VDC 13.8VDC typical

PIR Sensitivity
High or low (adjustable)

Relay Output
50mA 60VDC

Tamper Switch
12v 50mA

Temperature Comp
Advanced Automatic
