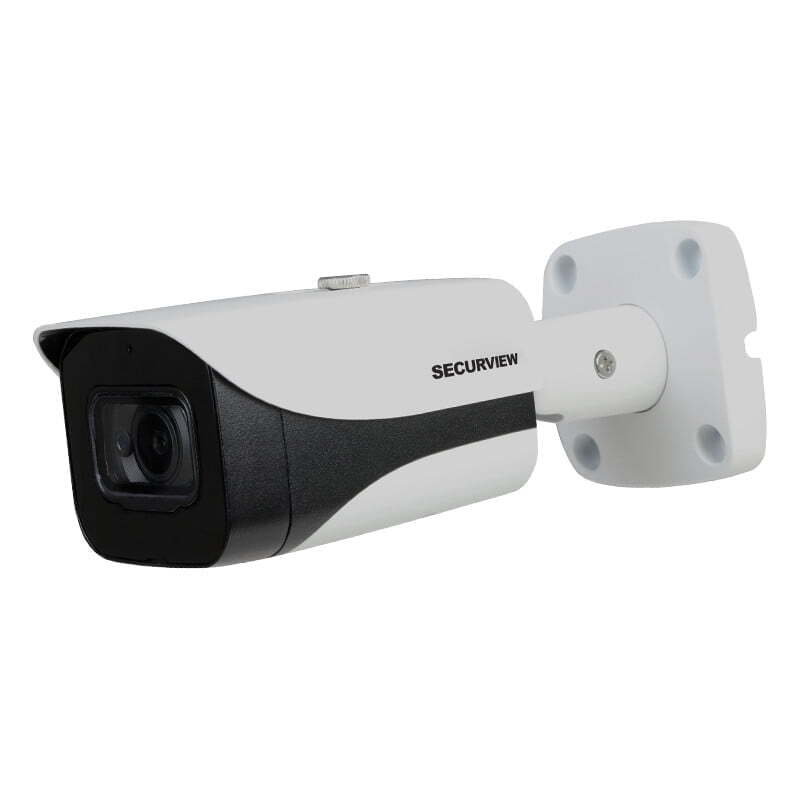

Professional Series 8.0MP Fixed HDCVI Mini Bullet - VSCVI-8BIRG
Sale!
Professional Series 8.0MP WDR Motorised HDCVI Bullet - VSCVI-8BIRMG
Professional Series 8.0MP Fixed HDCVI Mini Bullet - VSCVI-8BIRG
Professional Series 8.0MP Fixed HDCVI Mini Bullet - VSCVI-8BIRG
Professional Series 8.0MP Fixed HDCVI Mini Bullet - VSCVI-8BIRG - Image 5
Professional Series 8.0MP Fixed HDCVI Mini Bullet - VSCVI-8BIRG

Professional Series 8.0MP Fixed HDCVI Mini Bullet – VSCVI-8BIRG

Original price was: $135.85.Current price is: $119.03.

Professional Series 8.0MP Fixed HDCVI Mini Bullet

Out of stock

SKU: VSCVI-8BIRG Category: Tags: , , , , ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The VSCVI-8BIRG offers high performance surveillance over coax in a compact body. Deliver perfect evidence in challenging conditions with weather resistance for outdoor use, low light colour footage and a small install footprint.

Camera features:
• Stream up to UHD/4K/8.0MP (3840 x 2160) at 15fps
• 2.8mm lens with wide 111° viewing angle
• Superb colour image performance in low light at 0.005lx
• Up to 700m video transmission over coaxial cable
• Smart infrared illumination, up to 40m range
• Switchable BNC output for HD/composite video
• True WDR (120dB) and 2D/3D noise reduction
• IP67 rated weather resistance
• Compact 70x70mm base for versatile installation

Backwards compatible: HDCVI / AHD / TVI / Composite switchable via DIP switch.

Specifications

Register for Member Pricing

Alarm Interface
N/A

Analogue Support
Yes (Switchable)

Angle of View
111°

Audio Input
1 channel in & Built-in Mic

Camera Type
Bullet

Day/Night
Auto (ICR) / Colour / B&W

Detect (25px/m)
84m

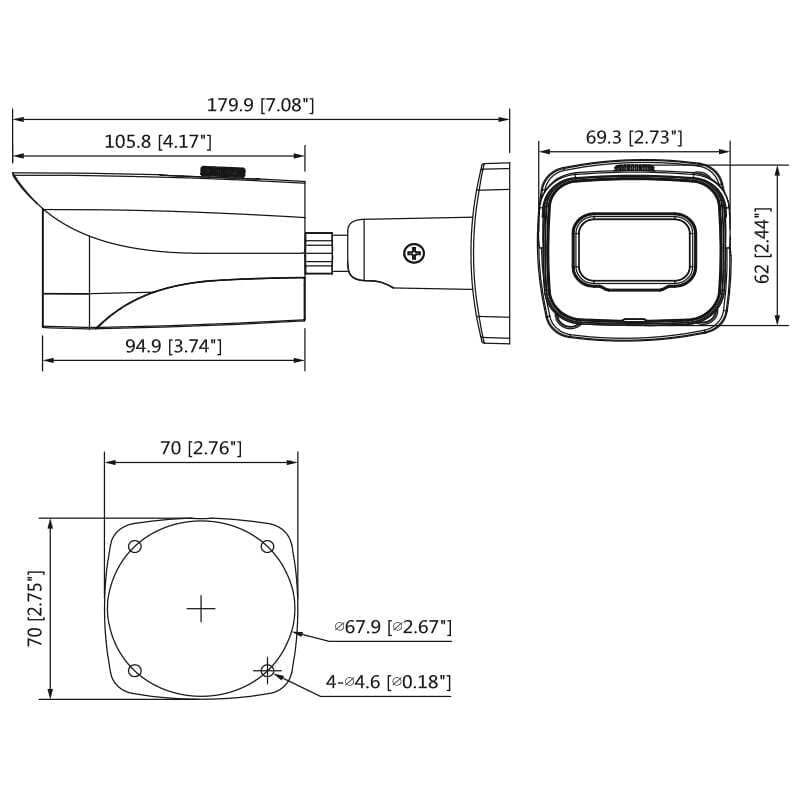

Dimensions
180 x 70 x 70mm

Effective Pixels
3840 (H) x 2160 (V)

Electronic Shutter
1/4 ~ 1/100,000s

Focus
Fixed / 1.8m Min. Focus Distance

Frame Rate
15fps (8.0MP) / 20fps (6.0MP) / 25fps (4.0MP and lower)

Gain Control
Auto

Housing
Aluminium

Identify (250px/m)
8m

Image Sensor
1/2″ 8.0 Megapixel CMOS

Infrared Range
40m

Ingress Protection
IP67

Lens
2.8mm F1.6 Fixed Lens

Lens Type
Fixed

Lighting Compensation
BLC / HLC / WDR (120dB)

Max. Resolution
8.0 Megapixel

Minimum Illumination
0.005 Lux at F1.6 (Colour) / 0 Lux IR Active

Noise Reduction
2D / 3D

Observe (63px/m)
34m

Operating Environment
-30° to 60°C / RH90% (max)

OSD Menu
Support

Power Consumption
< 6.8W
Power Input
12VDC
Recognise (125px/m)
17m
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Signal Noise Ratio
> 65dB

Synchronisation
Internal

Transmission Distance
Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)

Tri-Axis Mounting
No

Vandal Resistant
N/A

Video Output
1 x HDCVI / AHD / TVI / Composite video output (switchable via DIP switch)

Weight
0.42kg

White Balance
Auto / Manual

Download the brochure from the link below.

 Brochure

 Accessories Guide
