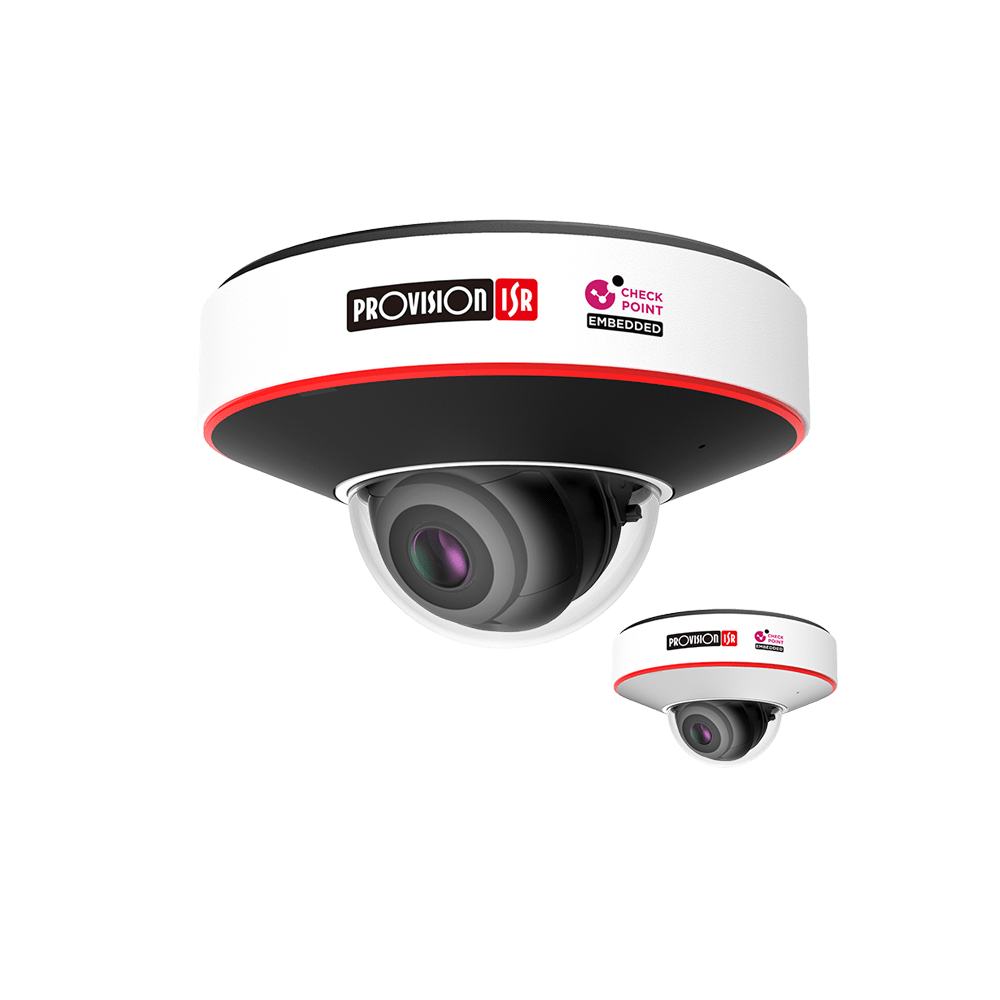

10M IR 6MP Fixed Lens Anti-Vandal Dome - DMA-360IPEN-28-V4
10M IR 6MP Fixed Lens Anti-Vandal Dome - DMA-360IPEN-28-V4 - Image 2
10M IR 6MP Fixed Lens Anti-Vandal Dome - DMA-360IPEN-28-V4 - Image 3

10M IR 6MP Fixed Lens Anti-Vandal Dome – DMA-360IPEN-28-V4

Login, Register, or Call for Price

6MP IP Camera • Eye-Sight v2 Series • Real-Time • NDAA • 1/3″ CMOS • 2.8mm Fixed Lens • DDA Object Detection • Face Detection
SKU: DMA-360IPEN-28-V4 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

6MP Fixed Lens Dome Camera with IR LED and DDA2 Analytics

Designed for short-range surveillance up to 10 meters, this 6MP dome camera features a fixed 2.8mm lens within a compact 11cm protective housing, ensuring discreet yet powerful monitoring in indoor and outdoor environments. Its IK10-rated vandal-proof protection provides exceptional resistance against tampering and physical damage.

Equipped with Dual System technology, the camera autonomously resolves internal anomalies, reducing disruptions from software-based issues. Supporting advanced analytics, including Face Detection, DDA Analytics (Detect, Distinguish, Alert), and DDA2, it enables precise object recognition, counting, and classification, analyzing age, color, gender, vehicle brand, and more. Fully NDAA-compliant, it integrates Check Point Quantum IoT Nano security, ensuring real-time cybersecurity protection against evolving threats. The DMA-360IPEN-28-V4 is designed to eliminate false alarms, offering exceptional performance, reliability, and affordability for secure installations

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.
features-eye-sight-cpe-motorised-6mp-10m-ik10

DMA-360IPEN-28-V4  Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.5″ CMOS
Effective Pixels
3296×1856
Electronic Shutter
1/4s ~ 1/100000s
Day & Night
ICR
Min. Illumination
0.008lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing, Object Counting (Line), Object Counting (Area), Loitering Detection, Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection
Yes
Metadata
Human: Gender, Age, Direction, Hat, Glasses, Backpack, Upper clothing type, Upper clothing color, Lower clothing type, Lower clothing color, Skirt/Dress, Mask, Shoulderbag Car/Truck: Color, Type, Brand, Model 2-Wheel: Type

Compression

Resolution
6MP (3296×1856) / QHD (3200×1800) / 2880×1624 / 2688×1520 / 2MP (1920×1080) / 1MP (1280×720) / D1 (704×576) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 6MP(3296×1856) / QHD (3200×1800) / 2880×1624 / 2688×1520 / 2MP (1920×1080) Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 8Mbps@H.265 / 128Kbps ~ 10Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (100°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
71m(232ft)
Recognize
14m(46ft)
Identify
7m(23ft)

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, RTMP Multicast, UPnP, Email, FTP, FTPS, HTTPS, QoS, HTTP POST, Auto Report, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile M/T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input + Audio output
Alarm
Alarm in + Alarm out
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
10m (2 High-Power IR LEDs)
Power Supply
DC12V/~400mA / PoE/~6.5W
Protection Rate
Water Proof: IP67 Vandal Proof: IK10
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
?110.4mm×62mm
Weight (gross)
~430g
Hard Reset Button
Yes

Documents

DMA-360IPEN-28-V4 Datasheet

v5.x 320IPEN 340IPEN FL Series Manual

Register for Member Pricing

Software:

Ossia Video Player

Latest VMS Version

Register for Member Pricing

IP Tool Archive

6MP Fixed Lens Dome Camera with IR LED and DDA2 Analytics

Designed for short-range surveillance up to 10 meters, this 6MP dome camera features a fixed 2.8mm lens within a compact 11cm protective housing, ensuring discreet yet powerful monitoring in indoor and outdoor environments. Its IK10-rated vandal-proof protection provides exceptional resistance against tampering and physical damage.

Equipped with Dual System technology, the camera autonomously resolves internal anomalies, reducing disruptions from software-based issues. Supporting advanced analytics, including Face Detection, DDA Analytics (Detect, Distinguish, Alert), and DDA2, it enables precise object recognition, counting, and classification, analyzing age, color, gender, vehicle brand, and more. Fully NDAA-compliant, it integrates Check Point Quantum IoT Nano security, ensuring real-time cybersecurity protection against evolving threats. The DMA-360IPEN-28-V4 is designed to eliminate false alarms, offering exceptional performance, reliability, and affordability for secure installations

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.
features-eye-sight-cpe-motorised-6mp-10m-ik10

DMA-360IPEN-28-V4  Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.5″ CMOS
Effective Pixels
3296×1856
Electronic Shutter
1/4s ~ 1/100000s
Day & Night
ICR
Min. Illumination
0.008lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing, Object Counting (Line), Object Counting (Area), Loitering Detection, Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection
Yes
Metadata
Human: Gender, Age, Direction, Hat, Glasses, Backpack, Upper clothing type, Upper clothing color, Lower clothing type, Lower clothing color, Skirt/Dress, Mask, Shoulderbag Car/Truck: Color, Type, Brand, Model 2-Wheel: Type

Compression

Resolution
6MP (3296×1856) / QHD (3200×1800) / 2880×1624 / 2688×1520 / 2MP (1920×1080) / 1MP (1280×720) / D1 (704×576) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 6MP(3296×1856) / QHD (3200×1800) / 2880×1624 / 2688×1520 / 2MP (1920×1080) Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 8Mbps@H.265 / 128Kbps ~ 10Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (100°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
71m(232ft)
Recognize
14m(46ft)
Identify
7m(23ft)

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, RTMP Multicast, UPnP, Email, FTP, FTPS, HTTPS, QoS, HTTP POST, Auto Report, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile M/T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input + Audio output
Alarm
Alarm in + Alarm out
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
10m (2 High-Power IR LEDs)
Power Supply
DC12V/~400mA / PoE/~6.5W
Protection Rate
Water Proof: IP67 Vandal Proof: IK10
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
?110.4mm×62mm
Weight (gross)
~430g
Hard Reset Button
Yes

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
DMA-360IPEN-28-V4

Detect (25px/m)
75m

Observe (63px/m)
30m

Recognise (125px/m)
15m

Identify (250px/m)
7.6m

Register for Member Pricing

For more information on selecting a CCTV camera please see this post:  Choosing the right CCTV camera for your application.
