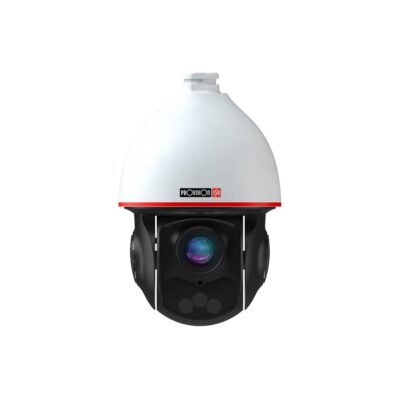

150m IR 2MP PTZ Camera X25 – Z5-25IPE-2(IR)
Login, Register, or Call for Price
Description
5″ 2MP x25 Zoom IP PTZ Camera with DDA Analytics, PoE+, and Wall Bracket
The Z5-25IPE-2(IR) is a 5-inch AI-powered PTZ camera delivering 2MP resolution and an impressive 25x optical zoom for detailed, wide-area surveillance. Built for flexibility, it features PoE+ support, high-speed motor control, and a sleek, compact design suitable for diverse outdoor installations.
Offering full compatibility with Provision-ISR platforms—including Ossia NVRs, Ossia VMS, and the Provision Cam2 Mobile App—the Z5-25IPE-2(IR) enables seamless integration and control. Equipped with DDA Analytics (Detect, Distinguish, Alert), it enhances situational awareness with intelligent human and vehicle detection. The camera includes a wall bracket, with additional mounting options available.
Overview:
Israeli made, professional, high quality security cameras for professional installations. Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.
Z5-25IPE-2(IR) Features
Video
1/2.8? CMOS
1920×1080
Progressive Scan
1/25~1/100,000s
ICR (Auto/Day/Night)
Color: 0.005Lux@(F1.65, AGC on), B/W: 0.001Lux@(F1.65, AGC on), 0Lux with IR
NDAA Compliant
Lens
x25
x16
4.8mm (F1.65) – 120mm (F3.8)
F1.65 ~ F3.8
Auto/Manual
1M~15M
57.6°(wide) ~ 2.5°(tele)
AI Features
Auto Tracking based on DDA (Human / Vehicle)
Up to 10000 faces
PTZ Features
Manual: 0.1~80°/s; Preset speed: 80°/s
Manual: 0.1~120°/s; Preset speed: 120°/s
300
4 Tracks. Up to 3 minutes each
8 cruises (16 presets per cruise)
Standard / Random (with left and right boundary)
Up to 8 tasks (Preset/Cruise/Pattern/Auto Scan/Random Scan)
Supported (Via Provision-ISR Devices)
Image Enhancement
AWB Adjustable Exposure Mode Sharpness, Saturation, Brightness & Contrast Adjustable Auto Gain Adjustable
True WDR (120dB)
N/A
Yes
Mirror/Flip
Yes
Audio
G.711A/G.711U
2-Way Audio
Housing
Yes
RJ45
No
1Ch
1Ch
Yes (microSD/SDHC/SDXC. Up to 256GB)
No
Max 30W (With IR, Heater and Fan working)
PoE+ (802.3at) / DC24V/3A / AC24V/3A (Not included)
-30?~50?, 10%~90% Humidity (Cold start at -20°C)
IP66
Yes
? 209mm × 328mm
~3.7Kg
Network
1 RJ45 10M/100M Adaptive Ethernet (Support PoE 802.3.at)
Supports simultaneous monitoring of up to 6 users with multi-stream real-time transmission
HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP,DHCP, PPPoE
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Compression
H.264/H.265/MJPEG
Main stream: 1920×1080 (2MP), 1280×720 (720P) Substream: 1280×720 (720P), 704×576 (D1), 352×288 (CIF) Third stream: 704×576 (D1), 480×240, 352×288 (CIF)
1-25/30FPS
768Kbps ~ 4096Kbps@H.265 / 1024Kbps ~ 6144Kbps@H.264
VBR/CBR
Five levels under VBR; Free adjustment under CBR
DORI Distance
(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Note: Wide is for minimum zoom and Tele is for Maximum Zoom
For more information on selecting a CCTV camera please see this post:
Choosing the right CCTV camera for your application.
5″ 2MP x25 Zoom IP PTZ Camera with DDA Analytics, PoE+, and Wall Bracket
The Z5-25IPE-2(IR) is a 5-inch AI-powered PTZ camera delivering 2MP resolution and an impressive 25x optical zoom for detailed, wide-area surveillance. Built for flexibility, it features PoE+ support, high-speed motor control, and a sleek, compact design suitable for diverse outdoor installations.
Offering full compatibility with Provision-ISR platforms—including Ossia NVRs, Ossia VMS, and the Provision Cam2 Mobile App—the Z5-25IPE-2(IR) enables seamless integration and control. Equipped with DDA Analytics (Detect, Distinguish, Alert), it enhances situational awareness with intelligent human and vehicle detection. The camera includes a wall bracket, with additional mounting options available.
Overview:
Israeli made, professional, high quality security cameras for professional installations. Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.
Z5-25IPE-2(IR) Features
Video
1/2.8? CMOS
1920×1080
Progressive Scan
1/25~1/100,000s
ICR (Auto/Day/Night)
Color: 0.005Lux@(F1.65, AGC on), B/W: 0.001Lux@(F1.65, AGC on), 0Lux with IR
NDAA Compliant
Lens
x25
x16
4.8mm (F1.65) – 120mm (F3.8)
F1.65 ~ F3.8
Auto/Manual
1M~15M
57.6°(wide) ~ 2.5°(tele)
AI Features
Auto Tracking based on DDA (Human / Vehicle)
Up to 10000 faces
PTZ Features
Manual: 0.1~80°/s; Preset speed: 80°/s
Manual: 0.1~120°/s; Preset speed: 120°/s
300
4 Tracks. Up to 3 minutes each
8 cruises (16 presets per cruise)
Standard / Random (with left and right boundary)
Up to 8 tasks (Preset/Cruise/Pattern/Auto Scan/Random Scan)
Supported (Via Provision-ISR Devices)
Image Enhancement
AWB Adjustable Exposure Mode Sharpness, Saturation, Brightness & Contrast Adjustable Auto Gain Adjustable
True WDR (120dB)
N/A
Yes
Mirror/Flip
Yes
Audio
G.711A/G.711U
2-Way Audio
Housing
Yes
RJ45
No
1Ch
1Ch
Yes (microSD/SDHC/SDXC. Up to 256GB)
No
Max 30W (With IR, Heater and Fan working)
PoE+ (802.3at) / DC24V/3A / AC24V/3A (Not included)
-30?~50?, 10%~90% Humidity (Cold start at -20°C)
IP66
Yes
? 209mm × 328mm
~3.7Kg
Network
1 RJ45 10M/100M Adaptive Ethernet (Support PoE 802.3.at)
Supports simultaneous monitoring of up to 6 users with multi-stream real-time transmission
HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP,DHCP, PPPoE
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Compression
H.264/H.265/MJPEG
Main stream: 1920×1080 (2MP), 1280×720 (720P) Substream: 1280×720 (720P), 704×576 (D1), 352×288 (CIF) Third stream: 704×576 (D1), 480×240, 352×288 (CIF)
1-25/30FPS
768Kbps ~ 4096Kbps@H.265 / 1024Kbps ~ 6144Kbps@H.264
VBR/CBR
Five levels under VBR; Free adjustment under CBR
Documents
Z5-25IPE-2(IR) Datasheet
Z# PTZ Series English User Manual
