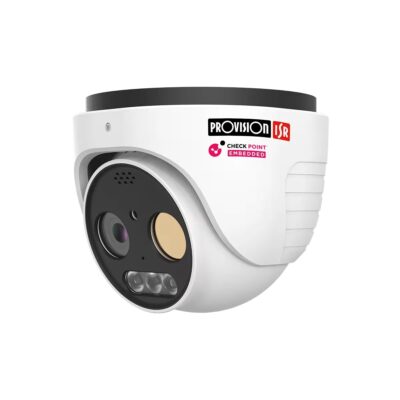

Thermal/Optical Bi-Spectrum Fixed Turret - DH-THERMAL-7-V2
Thermal/Optical Bi-Spectrum Fixed Turret - DH-THERMAL-7-V2 - Image 2

Thermal/Optical Bi-Spectrum Fixed Turret – DH-THERMAL-7-V2

Login, Register, or Call for Price

Ideal for fire detection, temperature monitoring, and security surveillance, this 5MP Thermal camera can detect, alert and provide complete situational awareness in the most challenging environments.
SKU: DH-THERMAL-7-V2 Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Thermal/Optical Bi-Spectrum Fixed Lens Dome/Turret Camera

Register for Member Pricing

The DH-THERMAL-7-V2 is a 5MP bi-spectrum dome/turret camera engineered for fire detection, temperature monitoring, and comprehensive security surveillance across large areas. Combining a thermal module and optical lens, it provides clear imaging in total darkness, harsh glare, and adverse weather, ensuring uninterrupted situational awareness through both thermal and visible light streams.

Outfitted with DDA™ Analytics (Detect, Distinguish, Alert) and active deterrence features—including a white strobe light and integrated speaker—this model empowers operators with real-time threat detection and proactive defence. The DH-THERMAL-7-V2 is a versatile and robust solution for critical applications, from industrial safety monitoring to perimeter protection in the most demanding environments

Register for Member Pricing

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

Register for Member Pricing

features-thermal-5mp

DH-THERMAL-7-V2 Features

Video

Image Sensor
1/2.7″ CMOS
Effective Pixels
2592×1944
Electronic Shutter
1/23s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.03lux (@F1.6, AGC on) 0lux with IR on

Video (Thermal)

Detector Type
12µm Vanadium oxide uncooled focal plane detector
Temperature Range
-20° ~ 150° C
Measurement Accuracy
±8°C (Varies with target emissivity, ambient conditions, and distance)
Spectral Range
8µm-14µm
Thermal Sensitivity (NETD)
?50mK(@25°C, F#=1.0)
Color Sets
Black hot, White hot, Rainbow, iron oxide red, Lava Fusion image support
Temperature Detection Distance
7.7m (Object size is 0.1m * 0.1m) In Theory: when the size of the object is doubled – the detection distance is also doubled
Fire Detection Distance
24m (Flame size is 0.1m * 0.1m) In Theory: when the size of the flame is doubled – the detection distance is also doubled
DRI Distance Human
Detection: 292m(958ft) Recognition: 73m(240ft) Identification:36m(118ft)
DRI Distance Vehicle
Detection: 894m(2933ft) Recognition: 224m(735ft) Identification:112m(367ft)

NDAA Compliant

NDAA Compliant
Yes

Lens

Lens (Field of View)
Optical: 8mm (35°) Thermal: 7mm (25°)
Iris
Fixed Iris
Lens Mount
M12 Mount


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable, Lens distortion correction
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip
Privacy Zone
Yes

Housing

Bracket
3-Axis Bracket
Illumination
20m (2 High-Power IR LED) White Strobe light
PoE
Yes
Power Supply
DC12V/~650mA / PoE/~9W
Protection Rate
Water Proof: IP66
Work Environment
-30°C~60°C, 10%~90% Humidity
Dimensions
Ø111.5mm×99.6mm
Weight (gross)
~730g
Hard Reset Button
Yes

Network

Remote Monitoring
IE Browsing, Ossia VMS Software, Provision Cam2 Mobile App
User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, HTTP POST, P2P
ONVIF
Profile M/T/S/G
Ethernet
100Mbps

Events and Analytics

Analytics
General Analytics: Camera Tampering AI (Optical Image): AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area), DDA Loitering Detection, DDA Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI (Thermal): DDA Sterile Area, DDA Line Crossing Audio Exception
Motion Detection
Yes

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in MIC + Speaker + Audio input
Alarm
Alarm in + Alarm out
SD Card
Event/Schedule based Main/Substream recording (Up to 256Gb)
Power
PoE / DC Socket
Analog Video Output
No

Compression

Video Compression
H.265/H.264/MJPEG
Frame Rate
1-25/30FPS
Resolution
256×192
Multi-Stream
Master Stream: 5MP(2592×1944) / 4MP(2592×1520) / 2K (2560×1440) / 3MP / 2MP / 1MP Substream: 1MP / D1 / CIF / QCIF Third Stream: D1 / CIF / QCIF (1~30fps) Thermal Stream: 1MP / D1 / CIF / QCIF
Bit Rate
64Kbps ~ 11Mbps@H.265 / 64Kbps ~ 11Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Audio

Audio compression
G.711A/G.711U
Communication
2-Way Audio

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

Documents

DH-THERMAL-7-V2 Datasheet
