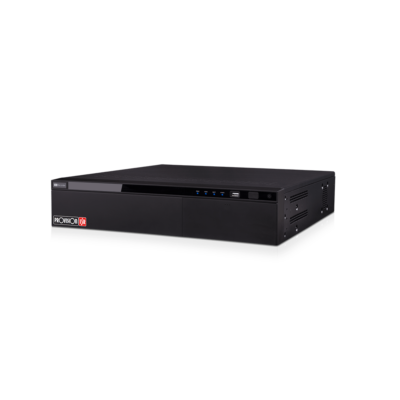

64CH 16MP NVR, No PoE – NVR16-641600RFAN(2U)

Login, Register, or Call for Price

64CH 16MP NVR with Face Recognition, RAID, alarm I/O, NDAA compliance, and embedded cyber protection—ideal for large-scale CCTV projects

SKU: NVR16-641600RFAN(2U) Category: Provision-ISR NVR

Free Shipping for orders over $600 (AU Only)*

Brand: Provision-ISR

Description

64CH 16MP NVR with Face Recognition, RAID, and NDAA Compliance

The NVR16-641600RFAN(2U) from Provision-ISR is a robust 64-channel network video recorder, purpose-built for large-scale surveillance installations. Featuring 16 alarm inputs and 4 alarm outputs, it delivers seamless integration with external systems for reliable security event handling.

Equipped with validated RAID support, this model ensures high-definition data integrity and operational resilience. Advanced features like Face Recognition and real-time cyber protection—enabled by the embedded Check Point Quantum IoT Nano agent—safeguard your network from common attack vectors with proactive threat prevention.

Fully NDAA compliant, the NVR16-641600RFAN(2U) meets regulatory standards while delivering a secure, intelligent, and scalable CCTV solution

Video:

Input: 64 Channel Support
64 Channel Standard Connection (Via RJ-45 Network Port)
Output: HDMI1 (8K 30/60Hz, 4K, 1080P, 1280×1024) (When the resolution of HDMI1 output is 8K, HDMI2 is unavailable) HDMI2: 4K, 1080P, 1280×1024, 1024×768 HDMI3: 4K, 1080P, 1280×1024, 1024×768 HDMI4: 1080P, 1280×1024, 1024×768 VGA: 1080P 1280×1024, 1024×768 (VGA and HDMI1 output the same video source)

Bandwidth:

Incoming: 640Mbps
Outgoing: 640Mbps

Decoding Support:

H.265S/H.265+/H.265/H264

Analytics:

Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition (Up to 16 CH), LPR, Thermal (Limited Support).
Advanced Face Recognition Mode: Supports 4 Non-AI IPCs and performs face detection and recognition.

Recording:

64CH 16MP Real-Time
FPS: 1600 (PAL) / 1920 (NTSC)

Playback:

Local: 16Ch Simultaneously
Remote: 16Ch Simultaneously

Audio:

Input: 1CH + IPC Inputs
Output: 1CH + IPC Output
2 Way Audio

Alarm:

Input: 16+IPC
Output: 4+IPC

Storage:

8 x SATA (Up to 10TB each)
2 x E-SATA (Up to 10TB each)
RAID: (0/1/5/6/10) Support

USB Port:

2 USB 2.0 Port + 1 USB 3.0 Port

Network:

2 x RJ-45: 10/100/1000Mbps Each

Remarks:

The following features are based on firmware 1.4.12_78966_RD250520 and are subject to firmware version changes.

Israeli made, professional, high quality security cameras for professional installations. Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

NVR16-641600RFAN(2U) Features

3rd Party Cyber Protection

General

Quantum IoT Nano agent by Check Point™

Protection Methods

Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

Yes

Video

Video Input

64Ch Over Network

Output

HDMI1 (8K 30/60Hz, 4K, 1080P, 1280×1024) (When the resolution of HDMI1 output is 8K, HDMI2 is unavailable) HDMI2: 4K, 1080P, 1280×1024, 1024×768 HDMI3: 4K, 1080P, 1280×1024, 1024×768 HDMI4: 1080P, 1280×1024, 1024×768 VGA: 1080P 1280×1024, 1024×768 (VGA and HDMI1 output the same video source)

View Mode

Independent*, Up to 32ch Per Monitor (When enabled, NVR based analytics are disabled)

Fish-Eye Dewarp

Local + Web

Decoding Format

H.265 / H.265+ / H.265S / H.264

Decoding Capabilities

1Ch – 16MP ; 4Ch – 12MP ; 9/16Ch – 1MP ; 32Ch – D1 ; 64Ch – D1

Audio

Audio-specs-Input

1CH RCA (Linear, 1k?) + IPC Inputs

audio-specs-Output

1CH RCA (2.0 Vp-p, 1 k?) + IPC outputs IP Speaker

Compression

G.711A/G.711U

Two Way Audio

Yes

Analytics

Supported Analytics

Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition (Up to 16 CH), LPR, Thermal (Limited Support). Advanced Face Recognition Mode: Supports 4 Non-AI IPCs and performs face detection and recognition.

Analytics Channels (IPC Based)

64Ch (Requires supporting IPC)

Analytic Channels (NVR Based)

Up to 8Ch DDA1 (Sterile Area/Line Crossing) or Up to 4Ch Face Detection + Recognition or Up to 16Ch Face Recognition (or their combinations)

Face Recognition Rate

36 Faces per second (16Ch supported)

Bandwidth

Incoming

640Mbps

Outgoing

640Mbps

Record/ Main Stream

Real-Time Recording

64CH 16MP Real-Time

Record Type

Video / Video + Audio

Recording Modes

Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations

16MP

1920FPS(NTSC)/1600FPS(PAL)

12MP

1920FPS(NTSC)/1600FPS(PAL)

8MP

1920FPS(NTSC)/1600FPS(PAL)

5MP and lower

1920FPS(NTSC)/1600FPS(PAL)

Master stream over network

Up to 64CH@Recording Resolution

Substream

Resolution substream

Depends on IPC

Remote view

Max Channel View

320Ch (Limited to Outgoing Bandwidth Capacity)

Remote Applications

User Access

128 Users online with Professional Autorithy Management

Mobile App

Provision Cam2 for iOS/Android

PC/Mac Software

Ossia VMS Standard / Enterprise

Plug-in free Web-Browser

Chrome, FireFox, Safari, Edge, Opera. (All Limited to 4Ch Live View / Playback) *P2P WEB connetion always requires Plugin

Plug-in based Web-Browser

Internet Exporer

Playback

Local

16Ch

Remote

16Ch

Search Mode

DDA Object, Smart Search, LPR, Time-Slice, Time, Event, POS

Backup

USB

2 USB 2.0 Port + 1 USB 3.0 Port

Backup Format

AVI (Unencrypted) / Private Format (Encrypted / Unencrypted)

Alarm

Alarm-in

16+IPC

Alarm-out

4+IPC

Storage

HDD

HDD Max Capacity

10TB

E-Sata Support

Total HDD Max Capacity

100TB

RAID

Yes (0/1/5/6/10)

PTZ

Connection

Via Network

Supported Controls

Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus

RS-485

Yes (C06 Keyboard Connection)

Network

Ethernet

2×1000/100/10Mbps self-adaptive Ethernet interface with Fault Tolerance / Dual Network Configuration

Protocols

TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report Input + Output (Ossia VMS)

ONVIF

Full Device Support (Profile T/G, ONVIF Version 20.12)

PoE

PoE Ports

N/A

Speed

N/A

Standard

N/A

CCTV Mode

N/A

Total Power

N/A

Max. Power Output (Per Ch.)

N/A

Others

Power Supply

AC100-240V

Power consumption (No HDD)

50W

Dimension

W436xD445xH90mm

Operation Temperature

0°C~50°C
