IVSEC NVR, 16 Ch, 12MP, 16 PoE+ Ports, 2 Bays, H265, 4K HDMI, IVS
Sale!
IVSEC NVR, 16 Ch, 8MP, 16 PoE+ Ports, 2 Bays, H265, 4K HDMI, IVS

IVSEC NVR, 16 Ch, 12MP, 16 PoE+ Ports, 2 Bays, H265, 4K HDMI, IVS

Guest Price – Login to see Member Pricing

Original price was: $720.50.Current price is: $695.64.

iVSEC NVR with 16 PoE+ ports, 12MP recording capability per channel, up to 32TB storage, and enhanced IVS for cameras with facial detection, human or vehicle detection

SKU: IVNR316XD Categories: , , Tag:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

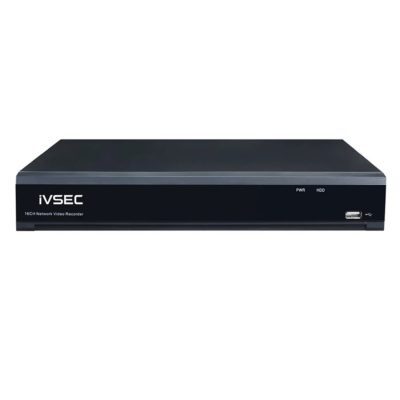

The IVSEC NR316XD is a network video recorder (NVR) capable of supporting up to 16 IP security cameras and of recording at up to 12 megapixel resolution.

Included IVS to match cameras with facial detection, Human and car detection. Now with Alarm relays

It’s easy to install and has an intuitive user interface. When used with IVSEC X series cameras, installation is plug and play.

Register for Member Pricing

This NVR is fully ONVIF 2.6 compatible and can also support other brands of IP cameras.

Thanks to the 16 built-in PoE+ ports, you can save on installation costs. They supply both data and power directly to the cameras via a standard CAT5 or CAT6 network cable.

Remotely view footage from your security cameras (live or playback) over the internet via your PC, mobile, or tablet. Easily setup the app by simply scanning the QR code which is on your IVSEC network video recorder.

Register for Member Pricing

The NR316XD NVR can have up to 32TB storage (HDD not included). We recommend the use of surveillance grade HDD.

The NR316XD features H.265 video compression, the most up to date video compression technology. This will save storage space and network bandwidth.

This NR316XD comes with a free VMS software which allows you to access the NVR from compatible Windows or Mac OS computers, either locally or via the cloud (simply scan the QR code).

Register for Member Pricing

Key Features:

  • Supports up to 12MP cameras
  • 16 built in PoE+ ports
  • Extended PoE on ports for up to 250m cable runs to iVSEC cameras
  • H265
  • Search methods: Continuous, Scheduling, Event Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting)
  • up to 32TB Storage
  • Gigabit interface
  • Save a snapshot or a video segment to cloud (Dropbox or FTP)
  • HTTPS support for higher cyber security
  • Automatic firmware updates via FTP
  • USB 3 support for faster backup
  • 2 year parts warranty

NR316XD Specifications

Maximum Channels
16

Max Video Resolution (MP)
12

Examples of Channels at resolution FPS
112 Mbps

Video Compression
H.264, H.264+, H.265, H.265+, MJPEG

Video Output Resolution
4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA

Display Layout
1 / 4 / 6 / 8 / 9 / 10 / 13 / 14 / 16

Search Method
Continuous, Scheduling, Event Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting)

Total Storage (TB)
32

HDD Bays Size
Bays x 2, up to 16TB HDD per bay

Bundled Software
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app

Protocols
TCP, HTTP, HTTPS, DHCP, DDNS, NTP, SMTP, PPPOE, RTSP, UPnP, ONVIF, P2P, QR Code

Language
English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungarian, Simplified Chinese, etc

Audio Streaming
Out

PoE Built in Switch
16 up to 802.3at(30w)

Power Supply
DC48V/3.750A10W (excl. cameras and HDD)

Connectors
HDD: 3.5″ SATA HDD Slot x 2, USB3 Female x1, USB2 Female x 2, Gigabit Ethernet: RJ-45 Port x 1 and 16 x PoE+ ports, HDMI and VGA, Alarm ports 8 in and 1 out, Audio out, Power Jack input, On off switch

Operating Environment
5ºC to 45ºC (41ºF-113ºF) Humidity: 20%-80% RH

In The Box
Printed quick installation guide, Mouse, Remote control, HDD screws, Power supply.

Model
NR316XD

Weight
1540

Warranty
24 months parts

Dimensions
380 X 320 X 54mm

Register for Member Pricing

Download documents from the following links:

IVNR316XB-datasheet
