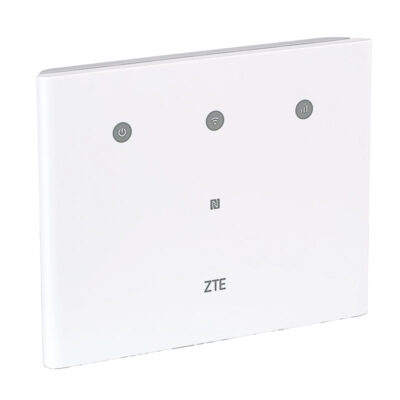

Desktop 4G Dual Band Wireless Modem Router - RTR-ZM
Sale!
Desktop 4G Dual Band Wireless Modem Router - RTR-ZM - Image 2

Desktop 4G Dual Band Wireless Modem Router – RTR-ZM

Original price was: $225.00.Current price is: $211.75.

4G modem router with WiFi 5, Gigabit Ethernet, and carrier aggregation—built for high-capacity business and home networks.

SKU: RTR-ZM Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

RTR-ZM 4G Wireless Modem Router with Dual-Band WiFi 5 & Gigabit Ethernet

The RTR-ZM is a high-capacity desktop 4G LTE modem router designed for SMEs, branch offices, shared workspaces, and family homes. With support for LTE CAT6 carrier aggregation and dual-band WiFi 5, it delivers fast, stable connectivity for up to 64 simultaneous users.

Equipped with 4 x Gigabit Ethernet ports (including 1 LAN/WAN), the RTR-ZM is ideal for building out wired networks while maintaining high-speed wireless access. It supports 300Mbps download / 50Mbps upload over 4G, and offers WiFi throughput up to 1167Mbps on the 5GHz band.

The router includes built-in WiFi and 4G antennas, plus 2 x SMA inputs for optional external antennas. Advanced WiFi security protocols (WPA/WPA2/WPA3-PSK) ensure safe access, and configuration is simple via Web UI or Smartlife app.

  • 4G/LTE CAT6 with support for carrier aggregation; nano sized SIM slot
  • 4G max. data throughput 300/50Mbps download/upload*
  • FDD-LTE B1/2/3/4/7/8/20/26/28/32, TDD-LTE B38/40/41 band support
  • Dual band WiFi 5, 802.11 b/g/n/ac standard, 2.4GHz & 5GHz MIMO 2×2 antenna
  • 2.4GHz 300Mbps* and 5GHz 1167Mbps* WiFi max. data throughput
  • WPA/WPA-PSK/WPA2/WPA2-PSK WiFi security protocols
  • 4 x RJ45 1000M Ethernet, including 1 x LAN/WAN port
  • Supports up to 64 simultaneous wireless users (32 per WiFi band)
  • Built-in WiFi & 4G antennas; 2 x SMA inputs for external antennas (not included)
  • 12VDC/1.5A input power
  • Manage router configuration via Web UI or Smartlife app
Register for Member Pricing

* Maximum data rates are network and environment dependent; theoretical maximum values shown; actual results will vary

Specifications

Device Hardware
Network Interface

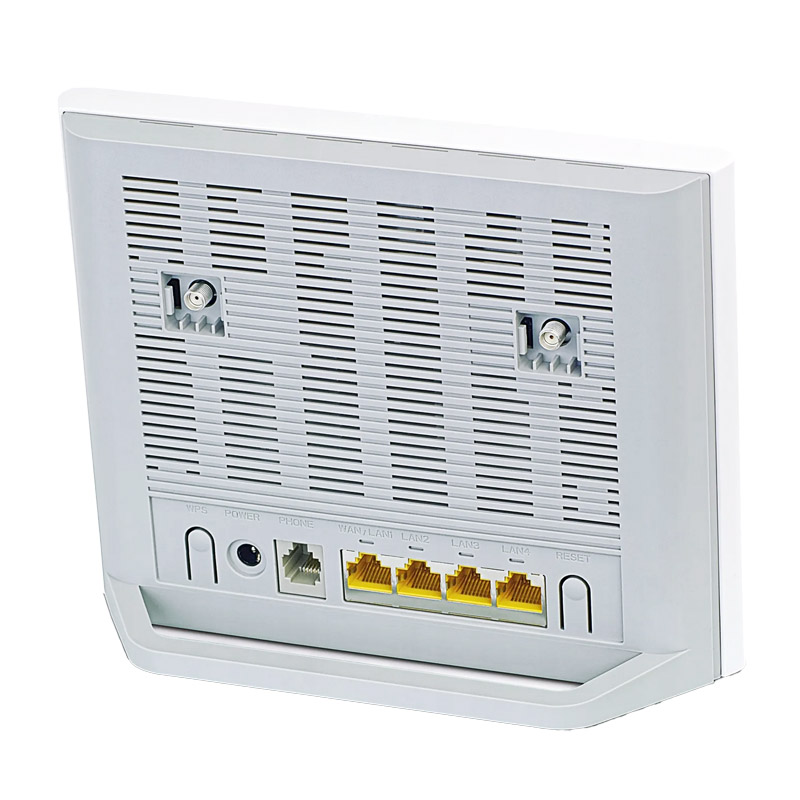

4 x RJ45 (1000M) (1 x WAN/LAN), 1 x Nano SIM Slot, 1 x RJ11
Device Indicators
Power/WiFi/Network LED Indicators, Power/WPS/Reset Buttons
Input Power
12VDC 1.5A
Backup Battery
–
Dimensions
146 x 182 x 27mm
Weight
310g
Operating Environment
-20-55°C Temperature, 5-95% Humidity
Certifications
CE, WEEE, RoHS, REACH, WiFi
WiFi Performance
WiFi Standard
IEEE 802.11b/g/n/ac (WiFi 5)
WiFi Antenna
2×2 MIMO 2.4GHz (20dBm), 2×2 MIMO 5GHz (23dBm)
WiFi Data Rate
2.4GHz 300Mbps, 5GHz 1167Mbps*
WiFi Security
WPA/WPA-PSK/WPA2/WPA2-PSK
WiFi Concurrent Users
64; 32 per 2.4GHz/5GHz
Cellular Performance
Cellular Category
4G/LTE CAT6 with 2 Carrier Aggregation
Max. Data Throughput (Down/Up)
FDD-LTE 300/50Mbps, TDD-LTE 220+/11+Mbps*
Support Frequencies
FDD-LTE B1/2/3/4/7/8/20/26/28/32, TDD-LTE B38/40/41
Cellular Antenna
Built-in Antenna, External via 2 x SMA (not incl.), 23±2.7 dBm Max. Tx Power
Software Features
Software Functions
Port forwarding, IP filtering, DMZ, UPnP, VPN Pass-through, VoLTE, SMS via Web UI, IPV4/IPV6, OTA Updates, Firewall
Management Platform
Web UI, Smartlife App
Warranty (Years)
1



Register for Member Pricing

Please download documents from the following links:

RTR-Z_Series_Datasheet_PDF
