The RTR-ZM is a high-capacity desktop 4G LTE modem router designed for SMEs, branch offices, shared workspaces, and family homes. With support for LTE CAT6 carrier aggregation and dual-band WiFi 5, it delivers fast, stable connectivity for up to 64 simultaneous users.
Equipped with 4 x Gigabit Ethernet ports (including 1 LAN/WAN), the RTR-ZM is ideal for building out wired networks while maintaining high-speed wireless access. It supports 300Mbps download / 50Mbps upload over 4G, and offers WiFi throughput up to 1167Mbps on the 5GHz band.
The router includes built-in WiFi and 4G antennas, plus 2 x SMA inputs for optional external antennas. Advanced WiFi security protocols (WPA/WPA2/WPA3-PSK) ensure safe access, and configuration is simple via Web UI or Smartlife app.
4G/LTE CAT6 with support for carrier aggregation; nano sized SIM slot
4G max. data throughput 300/50Mbps download/upload*
FDD-LTE B1/2/3/4/7/8/20/26/28/32, TDD-LTE B38/40/41 band support
Dual band WiFi 5, 802.11 b/g/n/ac standard, 2.4GHz & 5GHz MIMO 2×2 antenna
2.4GHz 300Mbps* and 5GHz 1167Mbps* WiFi max. data throughput
WPA/WPA-PSK/WPA2/WPA2-PSK WiFi security protocols

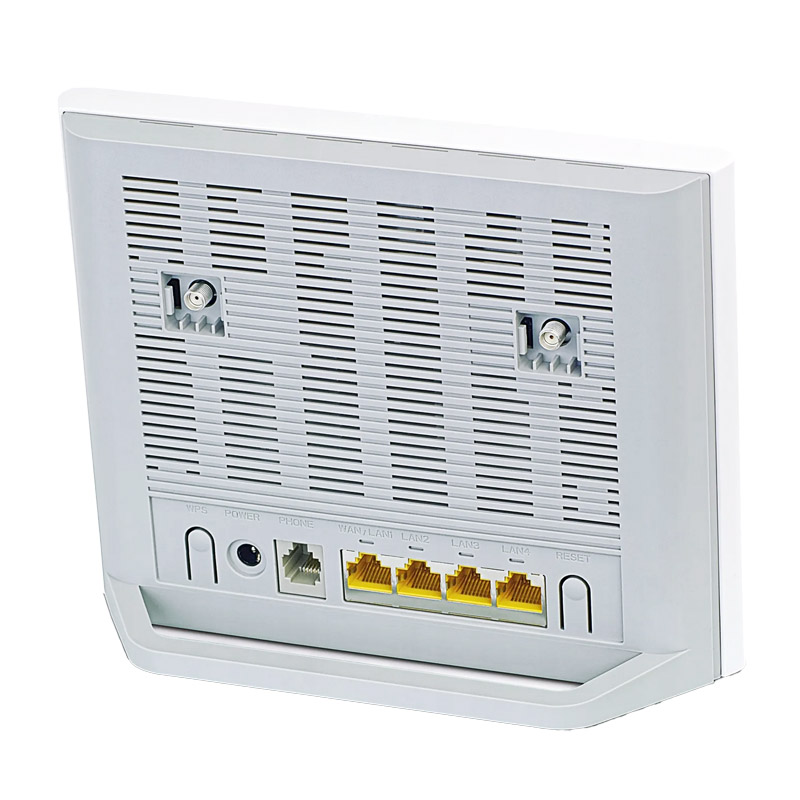

4 x RJ45 1000M Ethernet, including 1 x LAN/WAN port
Supports up to 64 simultaneous wireless users (32 per WiFi band)
Built-in WiFi & 4G antennas; 2 x SMA inputs for external antennas (not included)
12VDC/1.5A input power
Manage router configuration via Web UI or Smartlife app

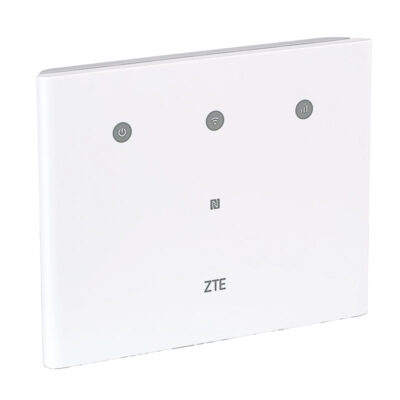

Desktop 4G Dual Band Wireless Modem Router – RTR-ZM
$225.00Original price was: $225.00.$211.75Current price is: $211.75.4G modem router with WiFi 5, Gigabit Ethernet, and carrier aggregation—built for high-capacity business and home networks.
Description
RTR-ZM 4G Wireless Modem Router with Dual-Band WiFi 5 & Gigabit Ethernet
The RTR-ZM is a high-capacity desktop 4G LTE modem router designed for SMEs, branch offices, shared workspaces, and family homes. With support for LTE CAT6 carrier aggregation and dual-band WiFi 5, it delivers fast, stable connectivity for up to 64 simultaneous users.
Equipped with 4 x Gigabit Ethernet ports (including 1 LAN/WAN), the RTR-ZM is ideal for building out wired networks while maintaining high-speed wireless access. It supports 300Mbps download / 50Mbps upload over 4G, and offers WiFi throughput up to 1167Mbps on the 5GHz band.
The router includes built-in WiFi and 4G antennas, plus 2 x SMA inputs for optional external antennas. Advanced WiFi security protocols (WPA/WPA2/WPA3-PSK) ensure safe access, and configuration is simple via Web UI or Smartlife app.
* Maximum data rates are network and environment dependent; theoretical maximum values shown; actual results will vary
Specifications
Please download documents from the following links:
RTR-Z_Series_Datasheet_PDF
