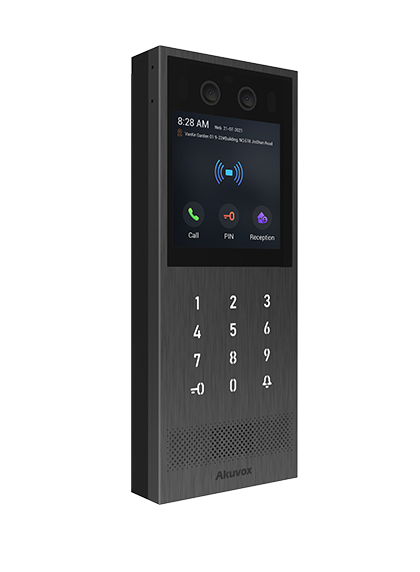

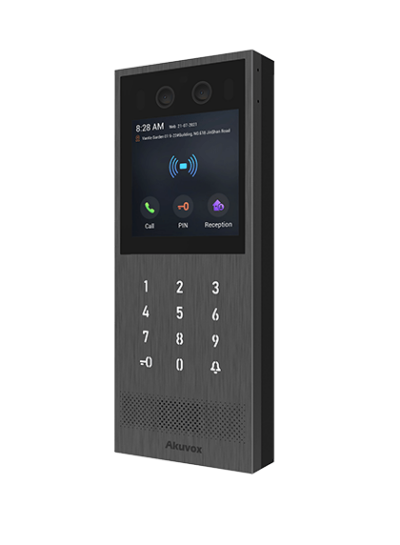

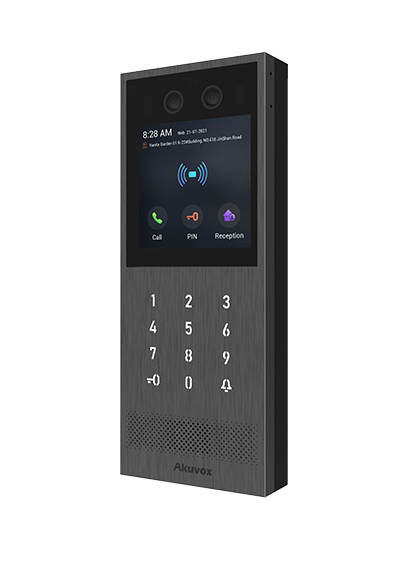

Akuvox X912 Vandal-resistant Door Phone with Press Button Keypad

X912 Vandal-resistant Door Phone for High-end Buildings

Offering top-of-the-line features, Akuvox X912 is targeted at high-end residential and commercial projects. With a compact size, it is perfect for buildings with limited installation space.

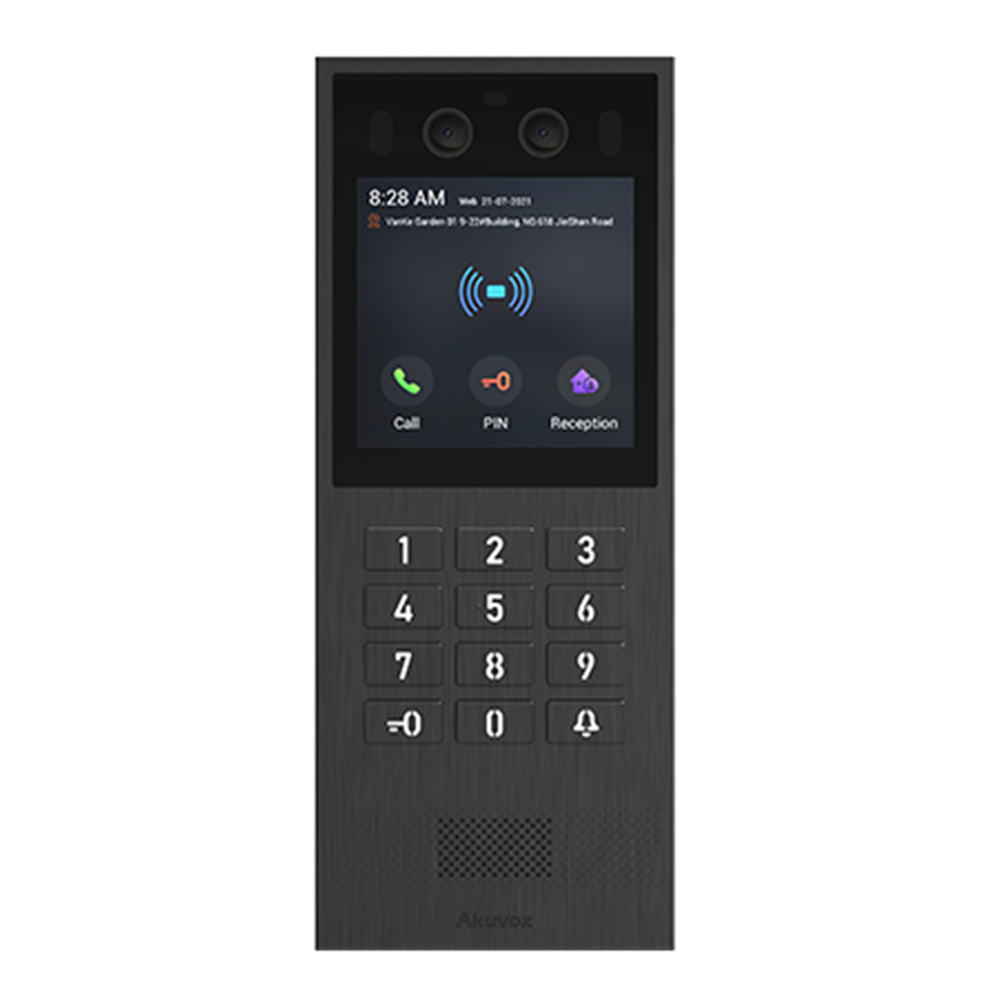

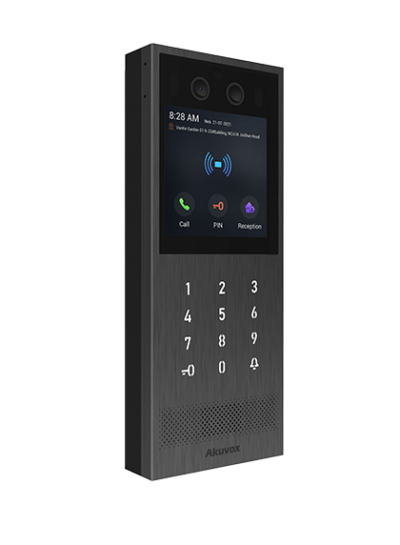

The X912S has a touch keypad and the X912K has pressable keys.  This is the X912K version.

The security that comes with being able to control who comes into your building along with the ability to verbally and visually confirm their identity is immeasurable. Akuvox’s Video Doorphone X912 enables you to easily monitor an entrance door or gate and gives you the peace of mind knowing that your facility is more secure.

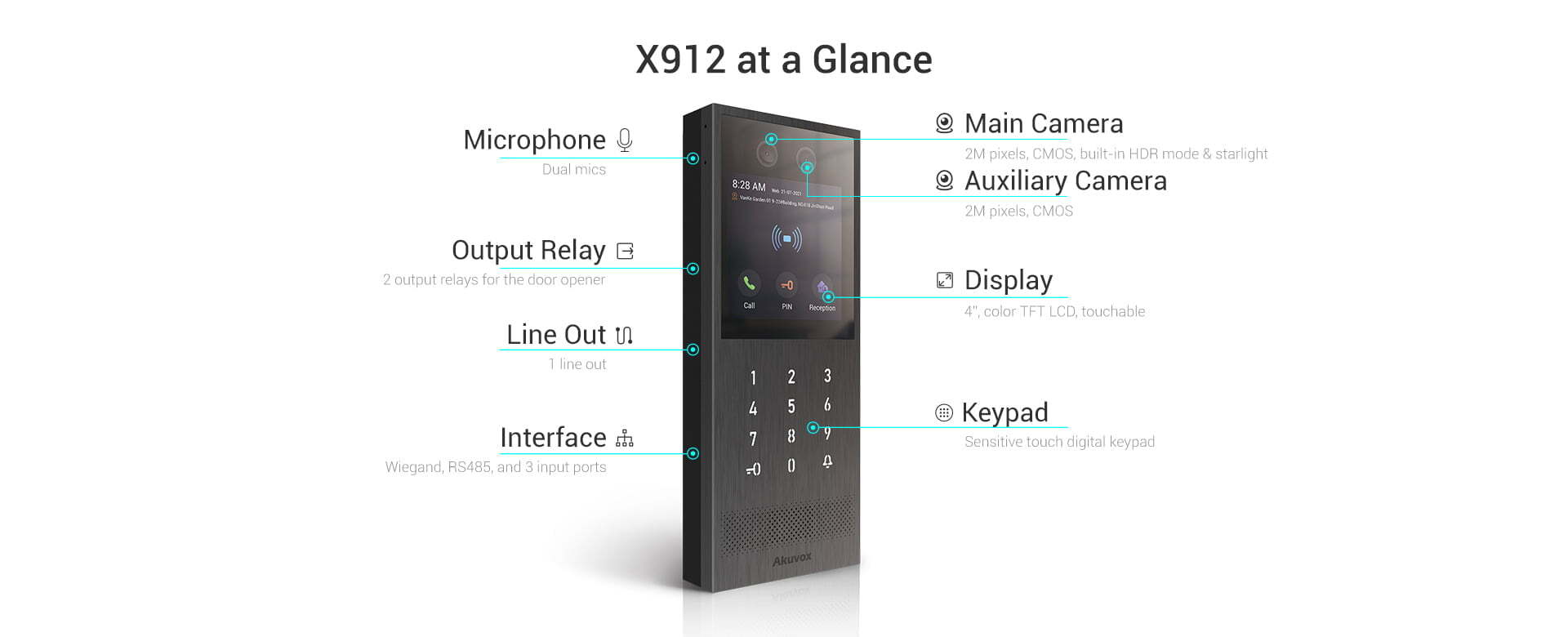

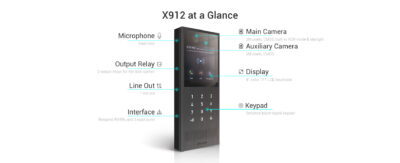

At a Glance

Specifications

Physical & Power

• Front panel: Stainless steel
• Display: 4 Inch, color TFT LCD, touchable
• Camera: 2M pixels
• Numeric keypad – pressable keys
• Gesture detection sensor: Support
• Wiegand port: Support
• RS485 port: Support
• RF card reader: 13.56MHz & 125kHz, NFC
• Relays out: 2
• Inputs: 3
• BLE: Support
• Line out: 1
• Microphone: -42dBS
• Speaker: 8? / 2W
• Power out: 12V/1A Max.
• Ethernet port: RJ45, 10/100Mbps adaptive
• 802.3at Power-over-Ethernet
• 12V DC connector (if not using PoE+)
• IP & IK rate: IP65 & IK10
• Installation: Wall-mounted
• Dimension: 234×94.5x34mm
• Working Humidity: 10~90%
• Working Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +70°C

Networking

• Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711µ, G.729
• Broadband audio codec: G.722
• DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator

Video

• Sensor: 1/2.8”, CMOS for main camera
• Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video codec: H.264
• Video technology HDR (High Dynamic Range)
• Video resolution: up to 1920 x 1080p
• Max. image transfer rate: 1080p – 30fps
• Viewing angle: 125°(H) / 65°(V)
• Compatible to 3rd-Party-Video components, e.g. NVRs

Door Entry Features

Deployment & Maintenance

• Auto-Provisioning
• Web management portal
• Web-based packet dump
• Configuration backup / restore
• Entry log export
• Access table export / import
• Firmware upgrade
• System logs (include door access logs)

Application Scenarios

• Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings
