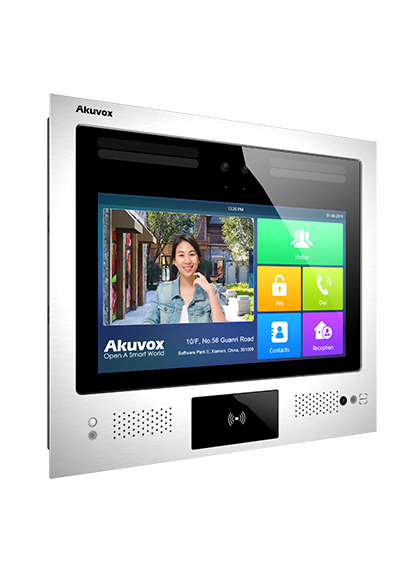

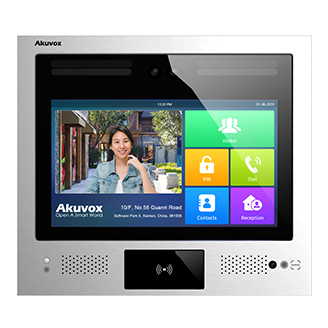

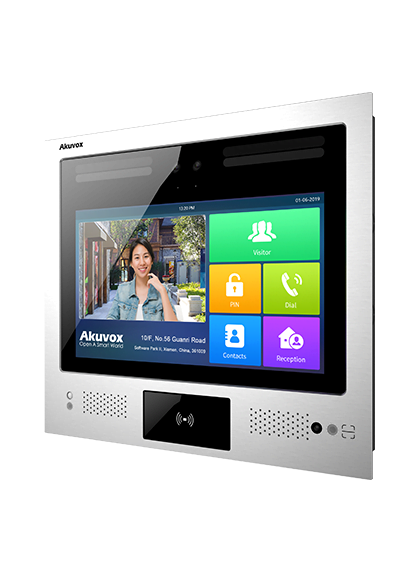

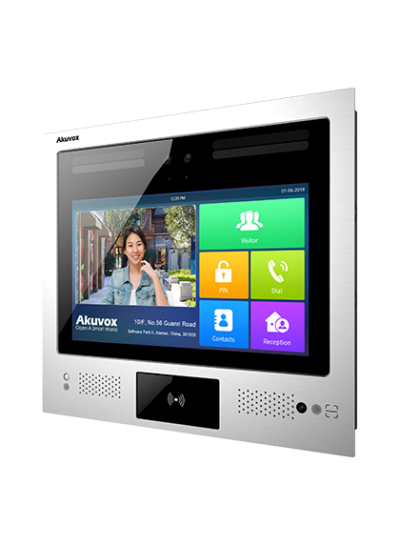

Akuvox X916S – VoIP (SIP) High End Video Door Station

X916S – VoIP (SIP) Android 9 Smart Video Door Station with 2MP + 2MP + 0.3MP Cameras, Facial recognition, Card Reader, 4 relays, 13″ touchscreen, with mount included.

Akuvox X916 SIP video doorphone is one of the most powerful models in the industry, which incorporates the latest technologies including starlight camera, HDR, Android 9.0, LTE and facial recognition. It is typically used in high-end apartment buildings and office buildings.

At a Glance

Specifications

Physical & Power

• Front Panel: 316 grade stainless steel
• RAM / ROM: 2GB / 16GB
• Display: 13 Inch IPS LCD
• Main Camera: 2M pixels, with starlight
• Auxiliary Camera 1: 2M pixels
• Auxiliary Camera 2: 0.3M pixels
• Light sensor: Support
• Infrared sensor: Support
• Wiegand port: Support
• RS485 port: Support
• RF card reader: 13.56MHz & 125kHz
• Relays out: 4
• Inputs: 4
• Reset button: 1
• USB Interface: 2
• HDMI Interface: 1
• TF Card Slot: 1
• Microphone: 2, -42dB
• Speaker: 2, 8? / 2W
• Power out: 12V / 500mA
• Ethernet port: 2xRJ45, 10/100/1000Mbps adaptive
• 12~24V DC connector
• Water-proof & Dust-proof: IP65
• Installation: Flush-mounted & Wall-mounted
• Flush-mounted DIM: 383.9×339.15×63.7mm
• Wall-mounted DIM: 383.9×339.15×48.95mm
• Working Humidity: 10~90%
• Working Temperature: -20°C ~ +55°C
• Storage Temperature: -40°C ~ +70°C

Networking & Protocol

• Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711?, G.729
• Broadband audio codec: G.722
• DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator

Video

• Sensor: 1/2.8”, CMOS for main camera
• Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video codec: H.264
• Video technology: HDR
• Video resolution: up to 1920x1080p
• Max. image transfer rate: 1080p – 30fps
• Viewing angle: 115°(H) / 63°(V)
• Compatible to 3rd-Party-Video components, e.g. NVRs

Door Entry Features

Deployment & Maintenance

• Auto-Provisioning
• Web management portal
• Web-based packet dump
• Configuration backup / restore
• Entry log export
• Access table export / import
• Firmware upgrade
• System logs (include door access logs)

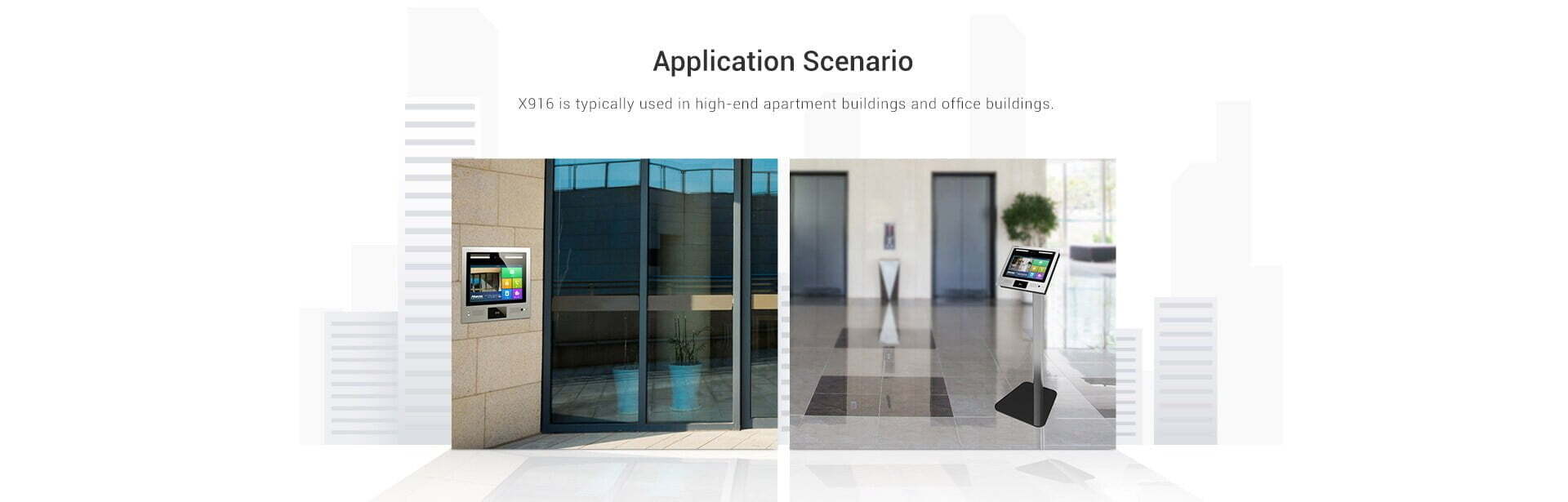

Application Scenarios

• Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings
