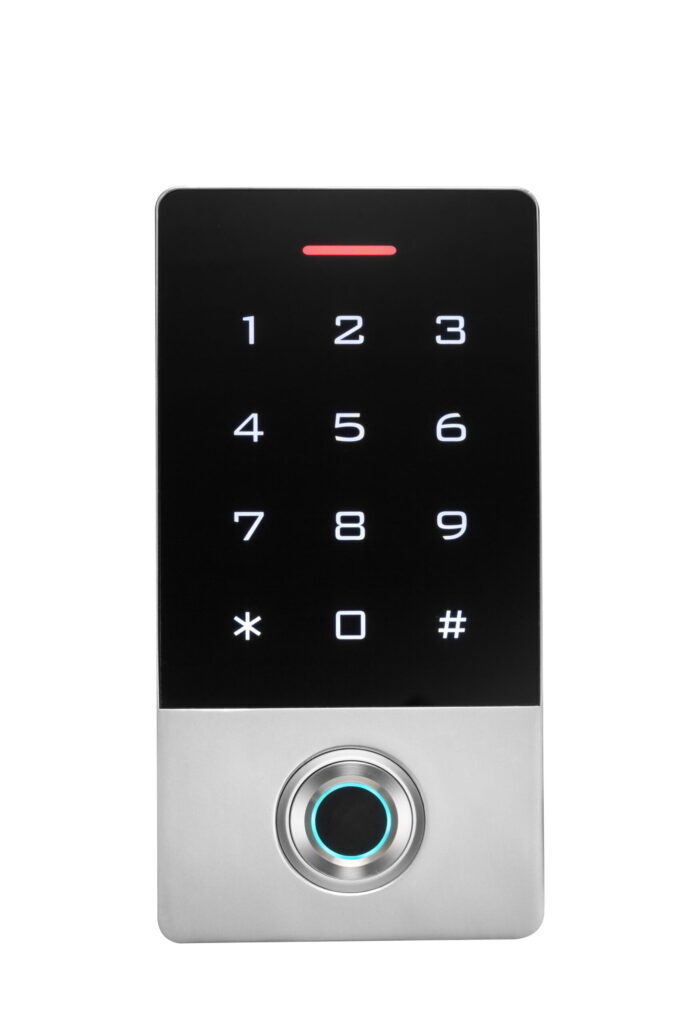

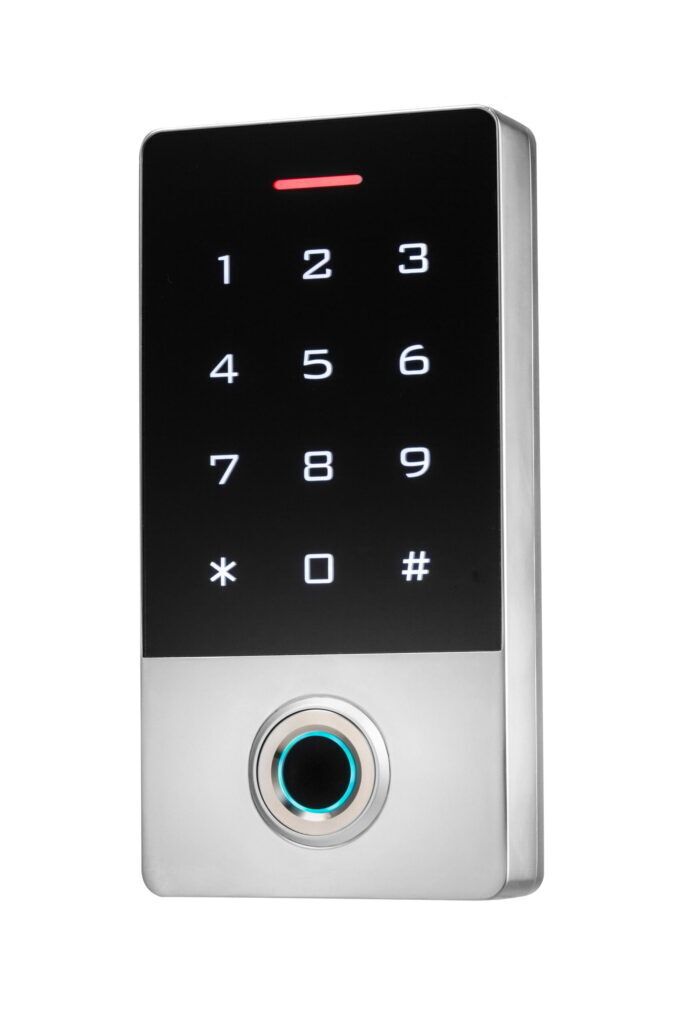

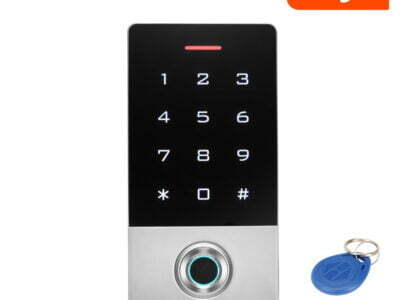

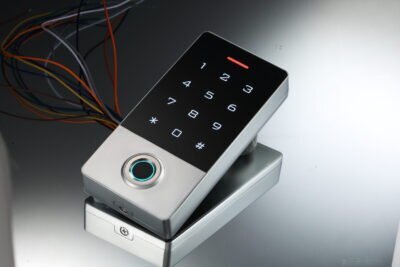

This elegant and vandal resistant unit is a single door / gate multifunction standalone access controller with Wiegand output, touch keypad, 13.56MHz MiFare card reader, fingerprint reader, and Tuya WiFi access. Ideal for residential properties or business where a stylish vandal resistant all weather access control system is required.
Tuya App allows remote access to the keypad for management, control, and monitoring. Add, modify, and delete users, set temporary single use pin codes, add cards and fingerprints, limit access times, and view log. Requires connection to WiFi with access to the internet for Tuya App function.

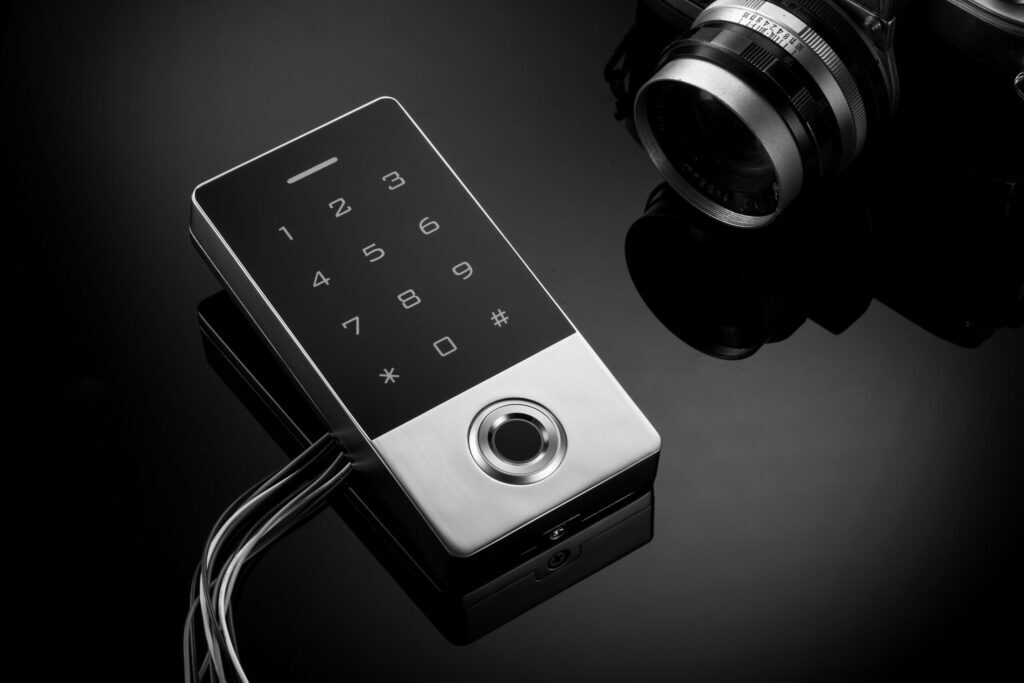

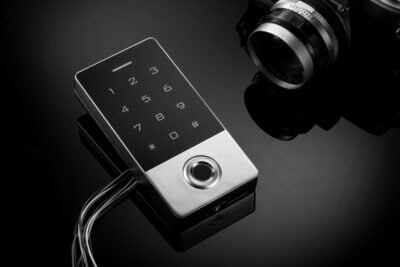

It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof case.

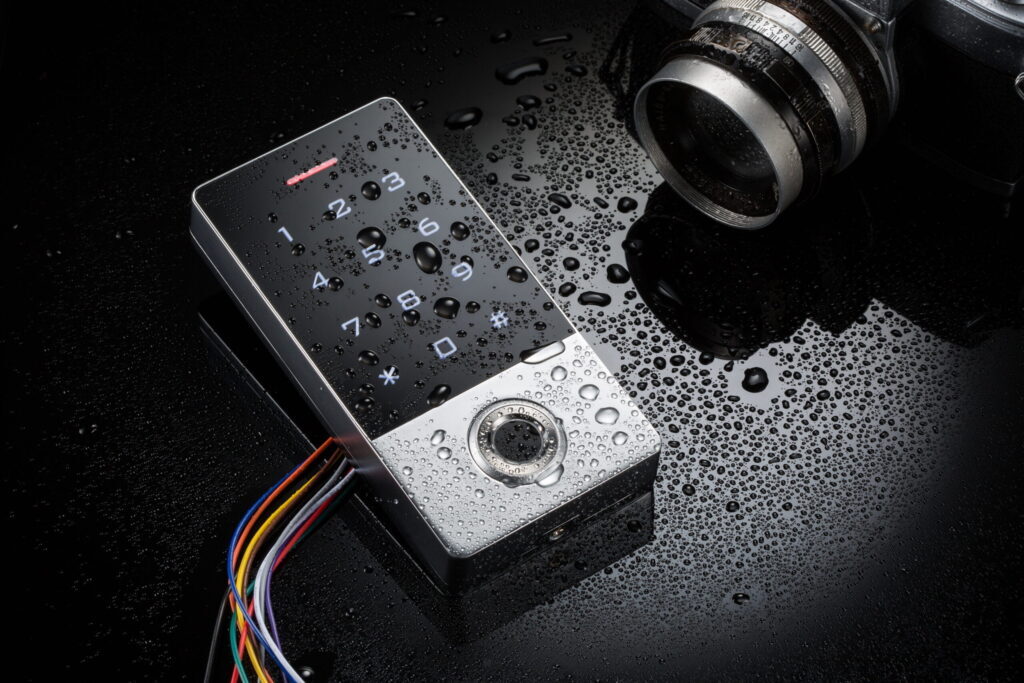

The electronics are fully potted so the unit is waterproof and conforms to IP68.
This unit supports up to 10000 users in either a Card, 4 digit PIN, or a Card + PIN option, and 600 fingerprint users, or 6 digit pin via Tuya App or temporary (single use) pin via Tuya App.
Using the Tuya App you can set temprorary access pin codes that expire in 6 hours for single visits or start and end date / time for multiple visits. The code is shared via email or SMS and the visitor enters the code on arrival to open the door / gate. The use of the code is logged in real time so the administrator can see the code has been used.
The Tuya App works from anywhere as long as the keypad is connected to a WiFi source which has internet access. Note that the WiFi module in the access control unit is low power for security purposes and the realistic distance from the WiFi router is no greater than 8 meters.

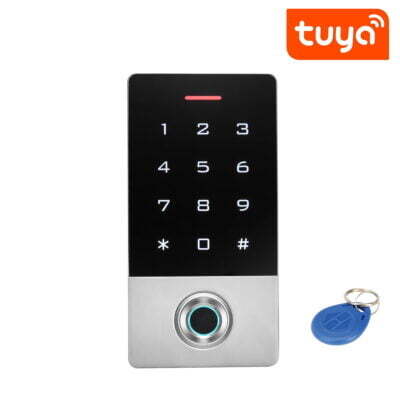

The inbuilt card reader supports 13.56MHz MiFare cards or fobs.
The unit has many extra features including lock output current short circuit protection, Wiegand output , and a backlit keypad.
These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and high security applications. Other uses include temprorary access for business or home, Air BNB access control, remote rental property access and many more.

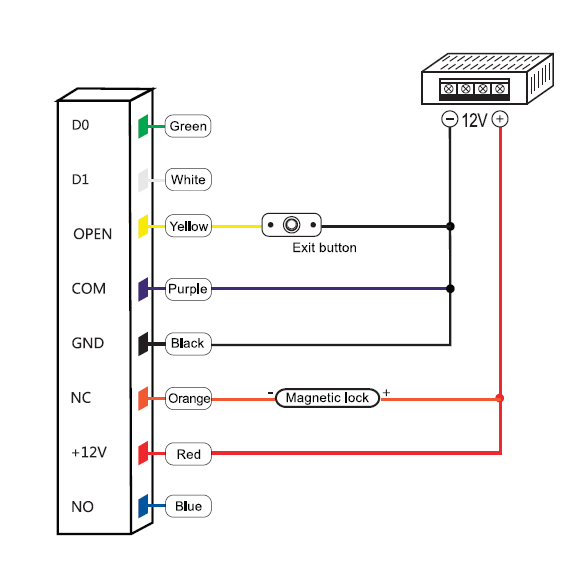

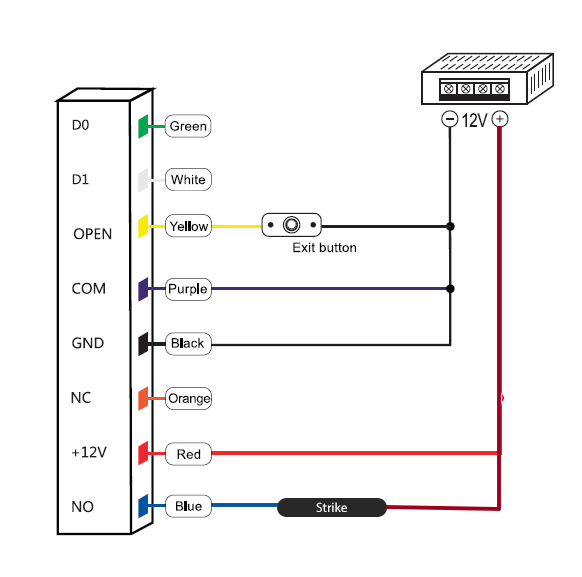

These units require 12VDC or 24VDC and can share the power with the electric strike.
- Strong anti-vandal case
- Full programming from the touch keypad and some programming through Tuya App.
- 10000 users, supports Card, PIN, Card + PIN, fingerprint (600) and Tuya App
- Can be used as a stand alone keypad, card reader, fingerprint reader.

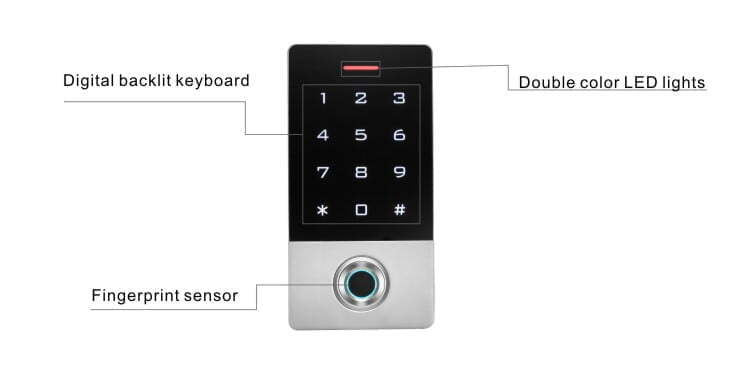

- Backlight keys

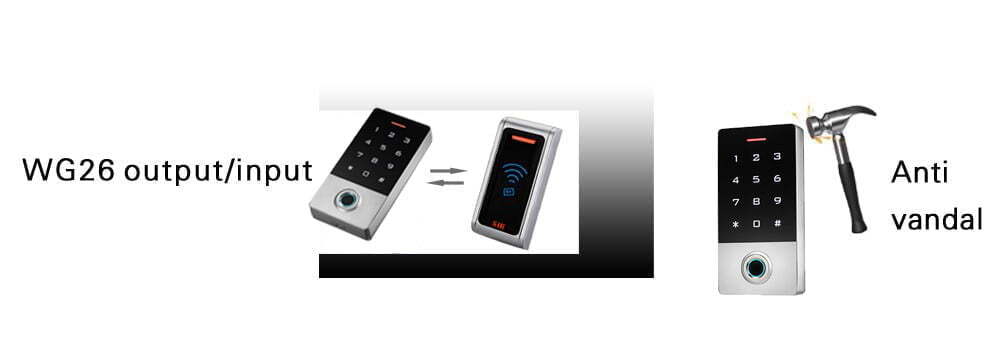

- Wiegand 26 input for connection to external reader
- Wiegand 26 output for connection to a controller
- Adjustable Door Output time, Alarm time, Door Open time
- Very low power consumption (35mA)
- Lock output current short circuit protection
- Easy to install and program
- Built in buzzer
- Red, Yellow and Green LEDS display the working status
