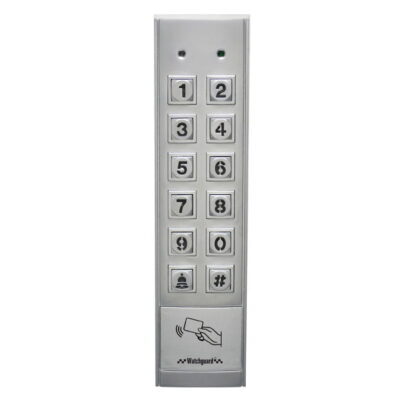

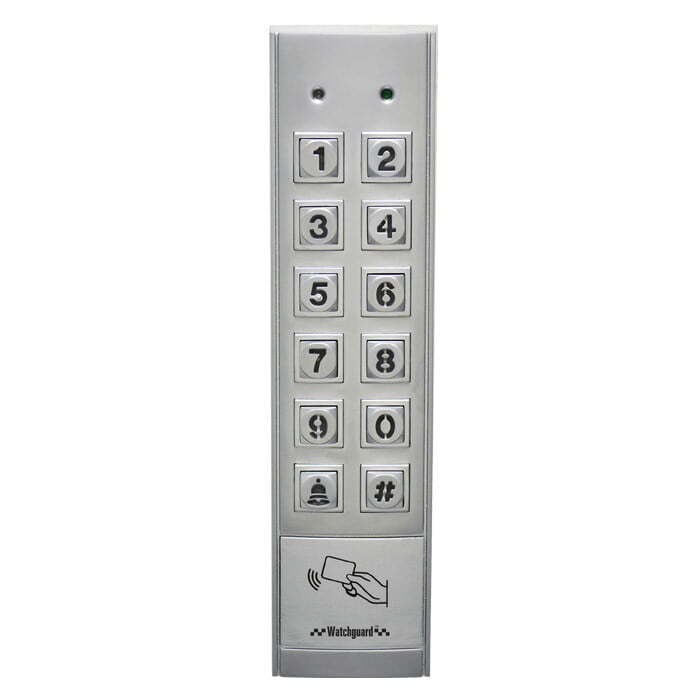

The ACRDR103 is a vandal resistant, zinc-alloy die cast, selfcontained, dual-level backlit access control reader/keypad designed to directly drive electric door locks. It is capable of accommodating up to 1000 user codes & RFID cards/keyfobs and is compatible with both fail-safe and failsecure locks. Cards & codes can be combined for multi-level authentication, visitor access can be programmed, daily operational hours can be set and the door lock striking timer is programmable for access customisation.
The ACRDR103 uses a solid-state switch for long service life and has an available relay contact to operate an external low power door chime. It also features a tamper switch and unauthorised access lock for vandal protection.
The ACRDR103 has a bi-directional data I/O bus, enabling use of up to 3 additional readers & split-decoder to be used. It is compatible with all proximity keys & cards (incl. 2 cards).
