Vertical Wall Mount Security Cabinet – SECCAB

Updated model with newmonitor mounting brackets

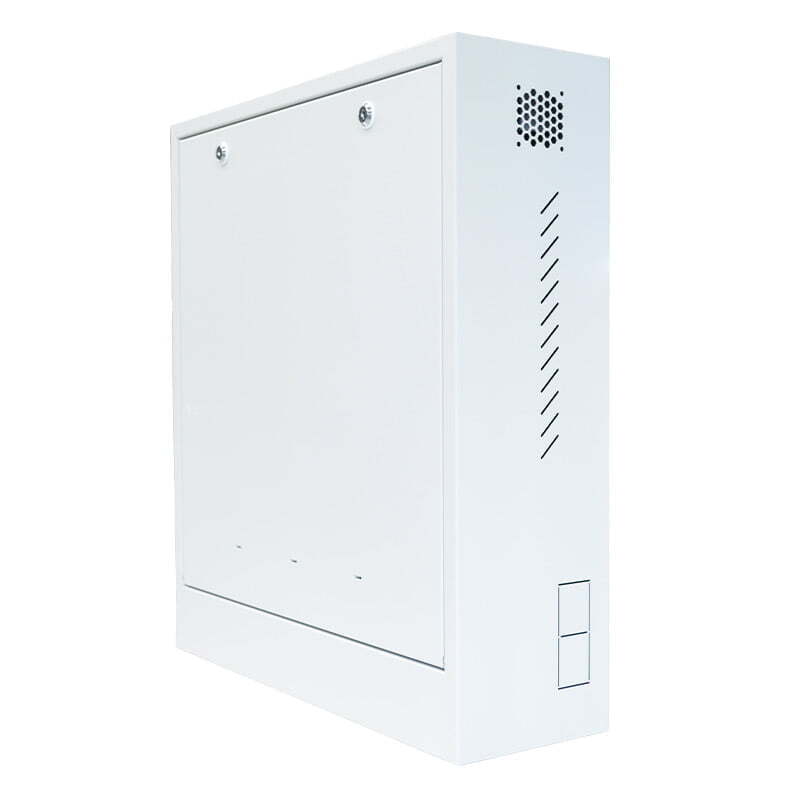

The SECCAB is a compact, vertical, wall-mount security cabinet that is great for delivering professional results in security installations. The SECCAB offers secure storage of CCTV surveillance, alarm & access control systems in difficult areas with limited space, such as behind refrigerators, in cupboards or wardrobes.

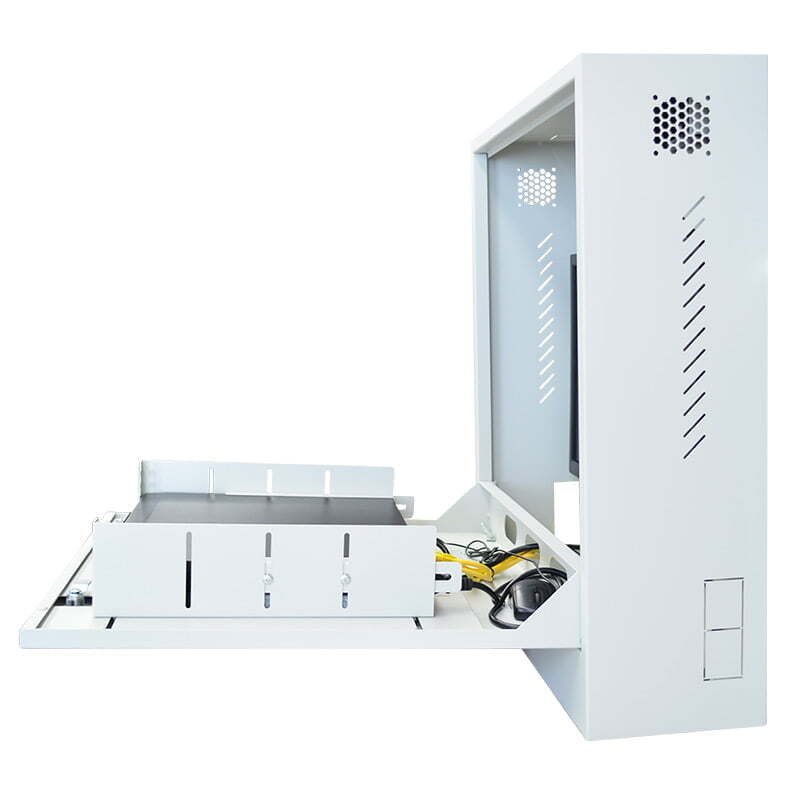

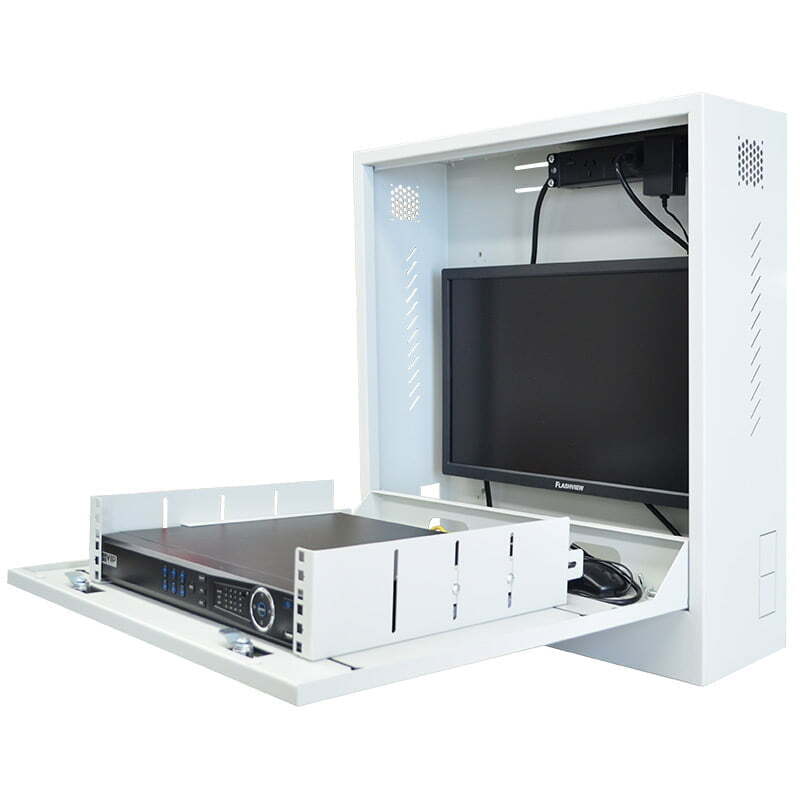

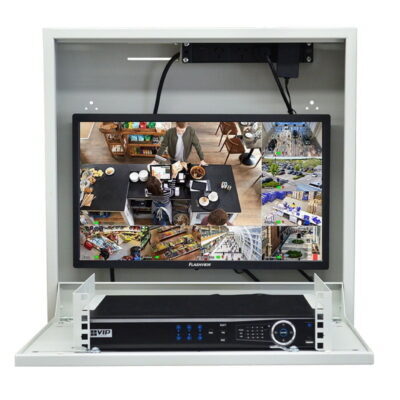

The SECCAB vertical rackmount shelf has a capacity of up to 2U height, up to 480mm width & 465mm depth, with extra space to mount up to a 24” LCD monitor. It can house 1 HDD, 2HDD and 4HDD bay NVRs and DVRs from VIP Vision, Watchguard, Securview. It can also accommodate a WGAP864 alarm system and professional VIP Vision access control system in a single cabinet.

Product features:

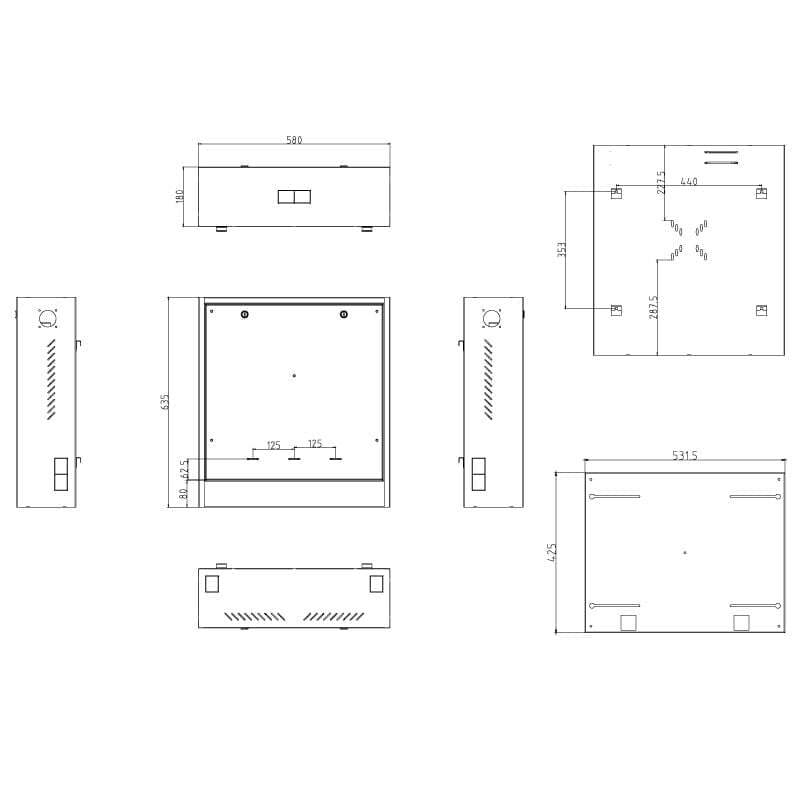

Compact; only 580(W) x 635(H)x 180(D)mm (closed)
Capacity: 2RU, 240~480mm width, 465mm depth
Cable management knockouts from all cabinet sides
Superior ventilation; optional 2 x 50mm cooling fans
Fit up to 24” monitor, with 50/75/100 VESA mounts

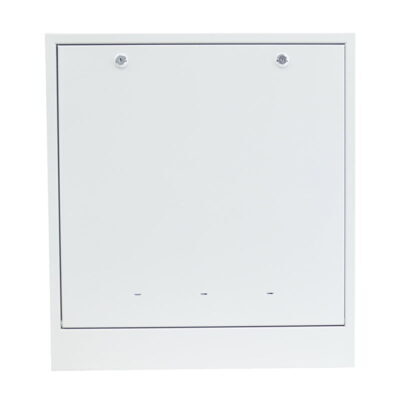

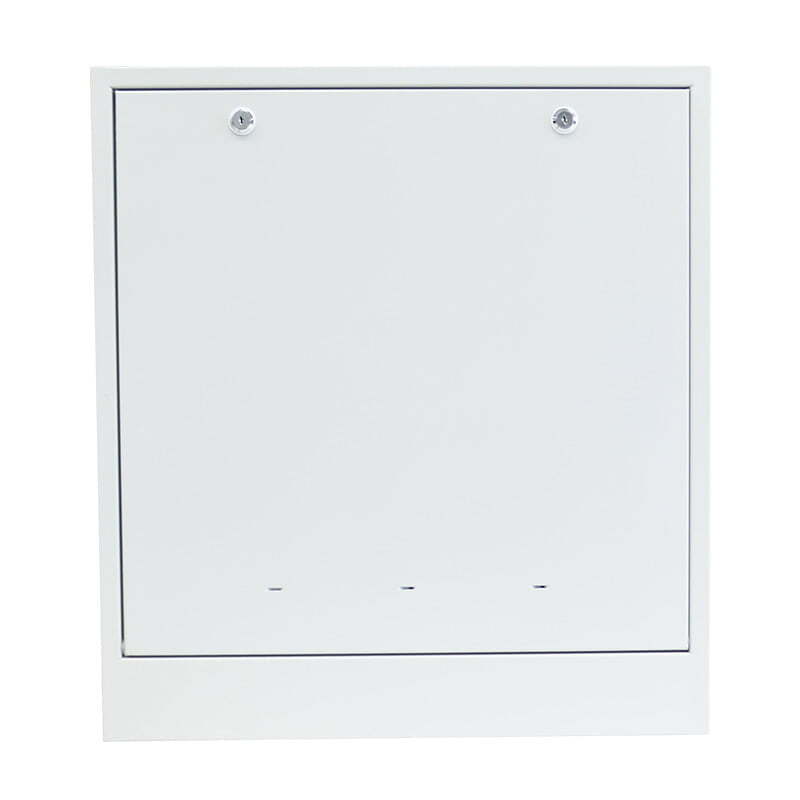

Integrated 4 x outlet powerboard & 2 x cabinet locks
30kg cabinet load bearing capacity (10kg vertical shelf)

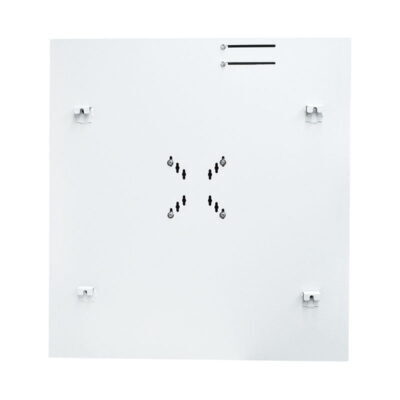

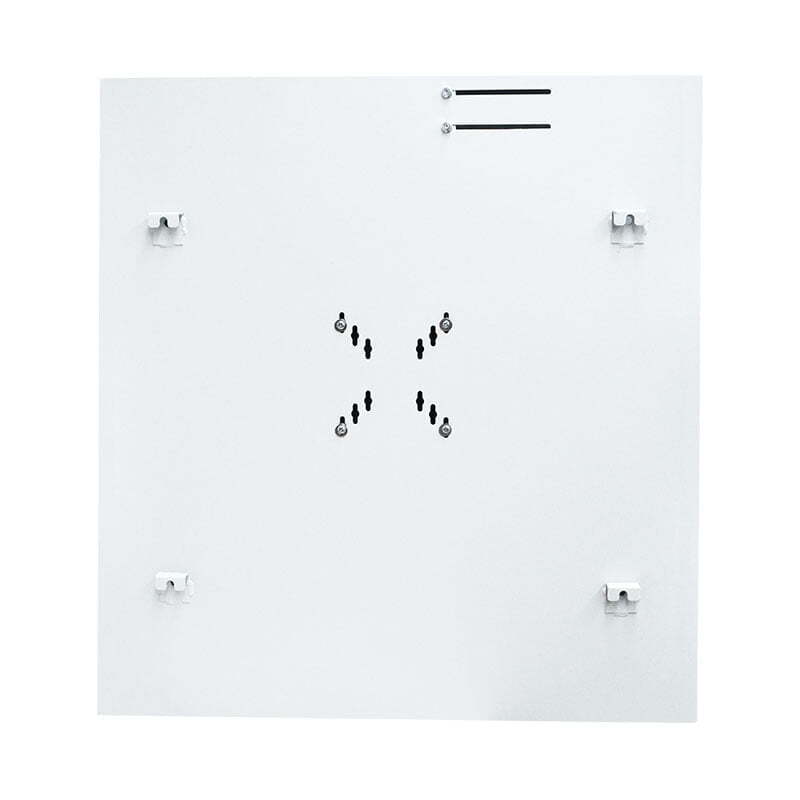

440mm width between mount points to fit wall studs
SPCC steel construction and white powder coating

*Ensure monitor has vertical / downwards-facing input ports & power connectors – compatible with the LCDFL24V

Specification
